Radium Engineering Fuel Rail Plumbing For 2008-21 Subaru STi - Parallel - 20-0984
RAD20-0984
Low stock! Only 10 left
Regular price
$379.95
Sale price
$379.95
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Question about this product?
We're happy to help.
CA WARNING:
Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to
www.P65Warnings.ca.gov/motor-vehicle-parts.
FUEL RAIL PLUMBING KIT, SUBARU EJ
OVERVIEW

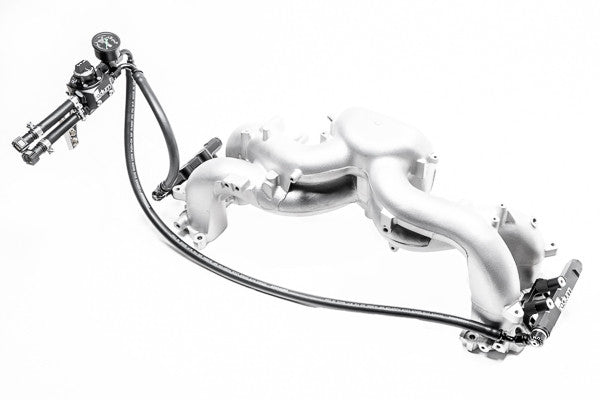

Because the hoses and fittings are consolidated, the parallel kit is a good option for cleaning up the engine bay. Each fuel rail is fed as shown in the photo above. The feed and return lines enter the MPR-RA regulator from the rear and output through the front to the fuel rails. The regulator secures to the LH strut tower using the provided stainless steel mounting bracket. A 0-100psi fuel pressure gauge is included for calibration. Fittings and 6AN hose are included to interface with the OEM feed and return hard lines. If aftermarket -AN hoses/lines have replaced the factory piping, this kit can still be used by changing the fittings on the regulator where the feed and return lines meet.
This can be installed on earlier Impreza models, but the mounting location for the FPR bracket may be occupied by other components and modification may be needed. Do a visual check before ordering.
NOTES
- Does not include a fuel filter
- Is not compatible with Radium dual port injector fuel rail kit 20-0499
- Safe to use with alcohol fuels such as methanol, ethanol, E85 etc
- This kit uses 3/8" (6AN) high pressure EFI fuel hose
- Includes 8AN ORB plugs for the fuel rails. Use these plugs if fuel pulse dampers are not being used.
