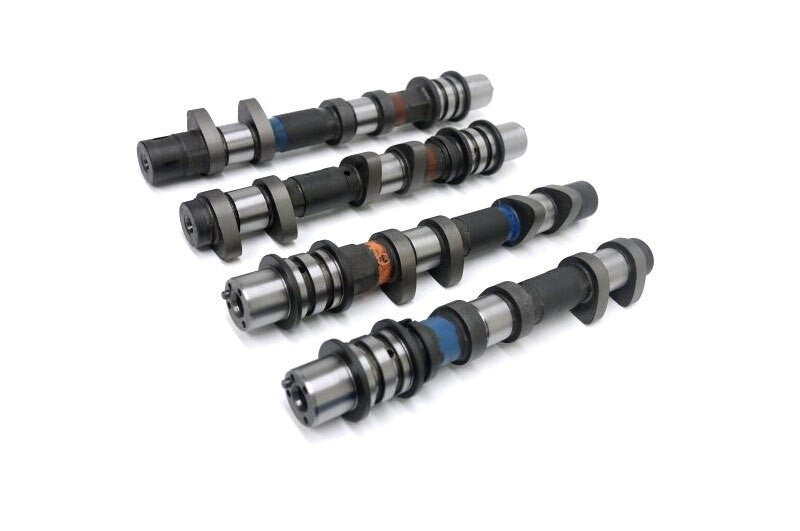

Kelford Cams Stage 3 282 / 278 Street / Race Camshaft Set For 2008-21 Subaru STI
220-D
Regular price
$949.05
Sale price
$949.05
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Question about this product?
We're happy to help.
CA WARNING:
Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to
www.P65Warnings.ca.gov/motor-vehicle-parts.
The Subaru STI EJ257B engine features dual AVCS (Active Valve Control System). This feature enables the builder to extract massive power while retaining great low end driveability. The Kelford range of camshafts feature a very new camshaft design technology termed 'ICE'. This design technique results in a efficiency gain for these engines. No other aftermarket camshaft company offers this approach for the EJ25 engine platform. The Kelford Stage 3 220-D is a cam profile setup for built engines utilizing a large turbo for racing.
Kelford's Stage 3 camshaft set features 282 degree intake cams and 278 degree exhaust cams with 11.70mm / 11.25mm lift. The cams require shimless buckets, cylinder head clearancing for fitment and are best suited for motors with larger intake manifolds, ported heads and big turbos.
Specifications:
Kelford Cams 220-D: Race / Built Engines
Cam Lift: Intake = 11.70mm , Exhaust 11.25mm
Net Valve Lift: Intake = 11.50mm , Exhaust = 11.00mm
Advertised Duration @ .25mm: Intake = 282 , Exhaust = 278
Duration @ 1.0mm Valve Lift: Intake = 240 , Exhaust = 236
Timing @ 1.0mm Valve Lift: IVO = 10 ATDC , EVO = 64 BBDC , IVC = 70 ABDC , EVC = 8 BTDC
Suggested Centerline: Intake = 130, Exhaust = 126
Valve Lift @ TDC: Intake = 0.25mm , Exhaust 0.43mm
Required Cylinder Head Clearancing
Good for E85
Installation Instructions
Installation Instructions
Fitment
Fitment
