IAG Rally X Skid Plate for 2002-07 Impreza WRX / STI (Black Powder Coat)
IAG-BDY-1100BK
51 in stock
Regular price
$299.99
Sale price
$299.99
Regular price
Unit price
per
Shipping calculated at checkout.
FREE SHIPPING on most orders over $249 in US 48
Thank you. We'll let you know when it's back in stock.
Unable to save your request. Please try again.
Sorry, it's out of stock.
But we can let you know when it's back in.
Couldn't load pickup availability
Question about this product?
We're happy to help.
CA WARNING:
Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to
www.P65Warnings.ca.gov/motor-vehicle-parts.
IAG RALLY X SKID PLATE FOR 2002-07 IMPREZA WRX / STI - POWDER COATED BLACK
RELIABLE PROTECTION

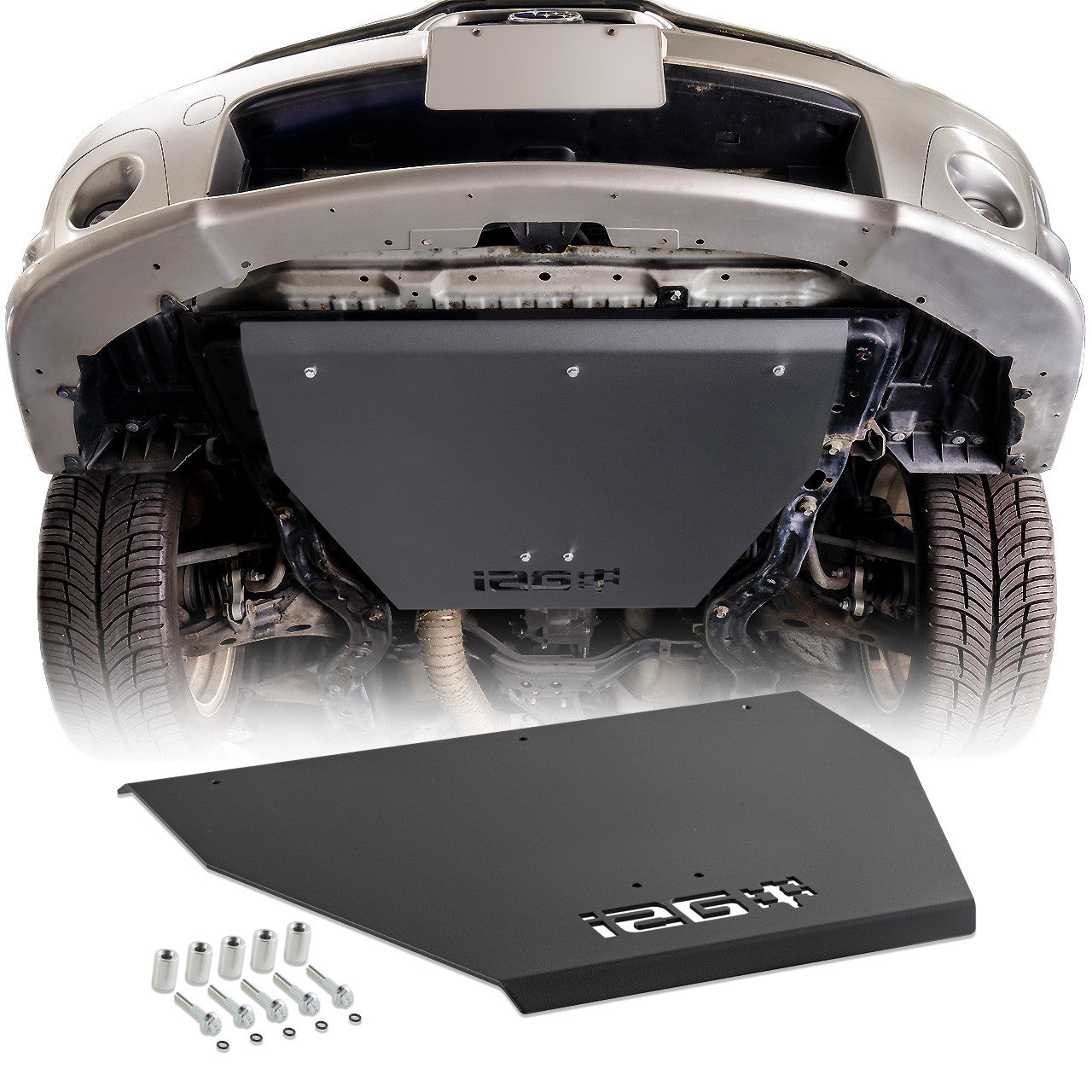

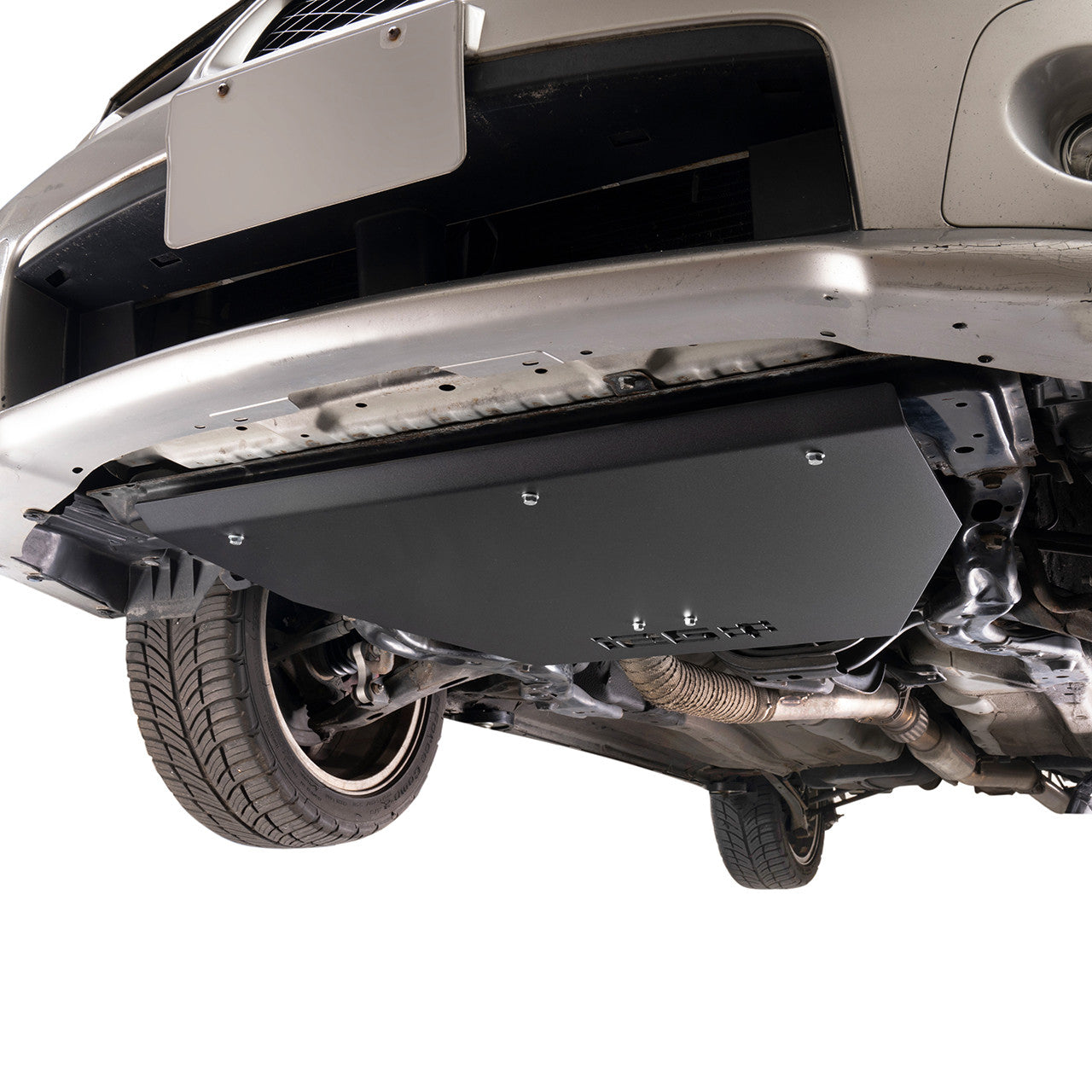

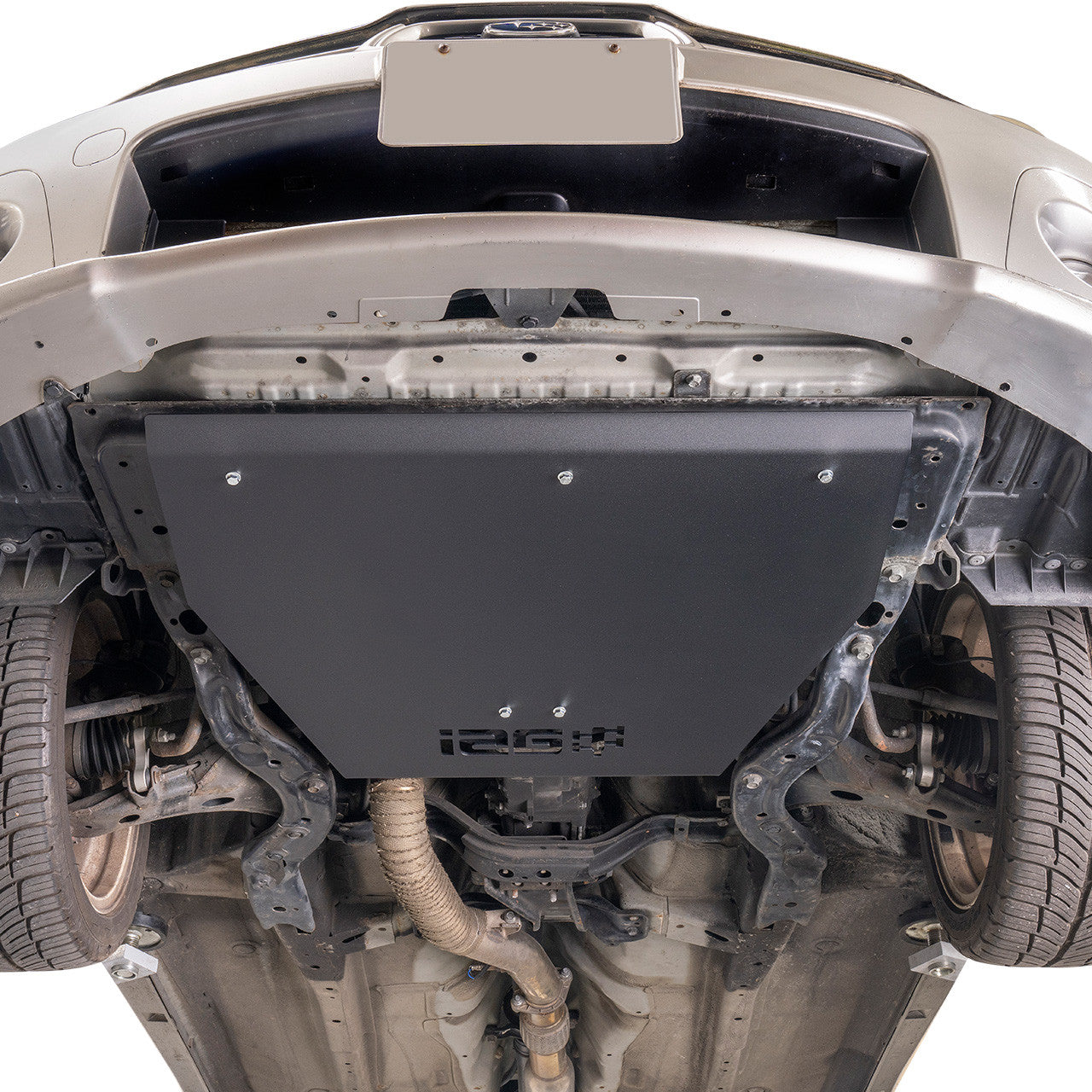

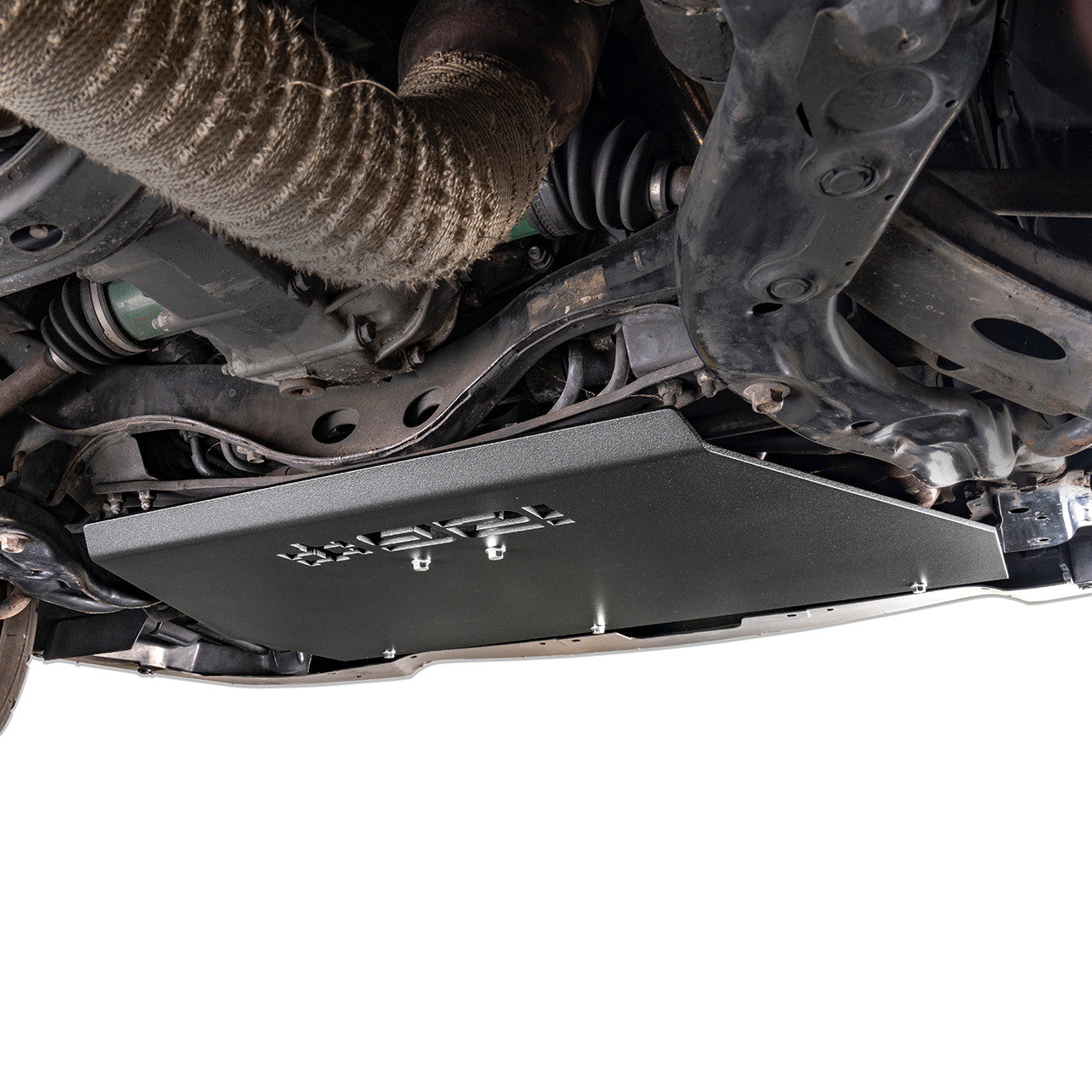

The IAG Rally X Skid Plate is designed to fit 2002-2007 Subaru Impreza WRX and STI models. This plate provides protection to the headers and oil pan from the front of the U-frame to the transmission brace. The Rally X Skid Plate is strong enough to stand up to rough roads, rocks, branches and debris. Whether you use it for rally, rally-cross, camping, or just want a little extra protection for peace of mind, the Rally X Skid Plate is an affordable solution to shield your Subaru’s engine from potential damage.
RUGGED UPGRADE
IAG’s Rally X Skid Plate is a replacement upgrade for the Subaru factory plastic splash guard on the 2002-07 WRX/STI. While the OEM plastic version provides a sufficient buffer for regular street driving conditions, the Rally X Skid Plate provides a solid shield against rocky roads, churned up trails, ice chunks and debris, allowing you to take on the rally course or the trail without the worry of cracking an oil pan or crushing a header.
SOLID CONSTRUCTION

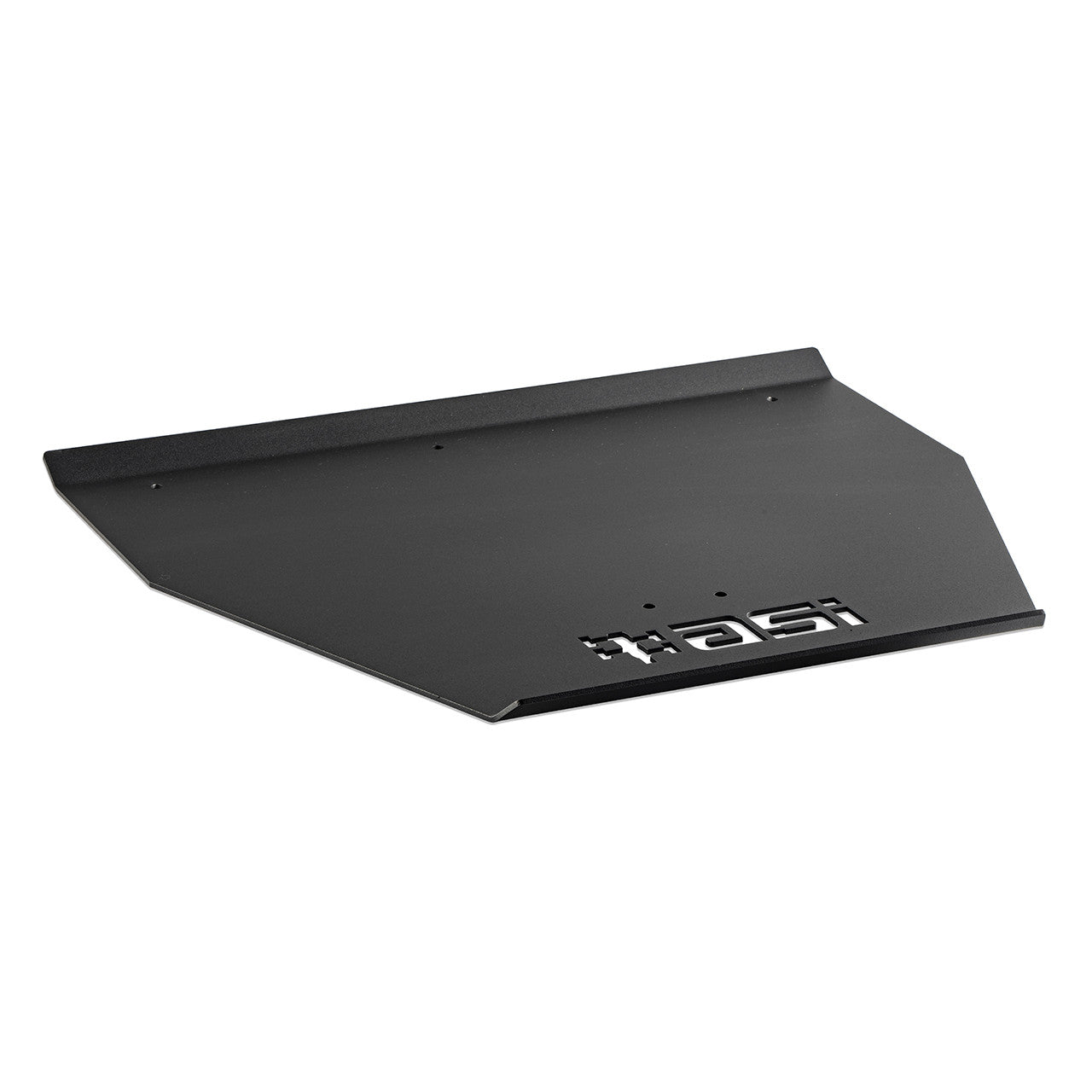

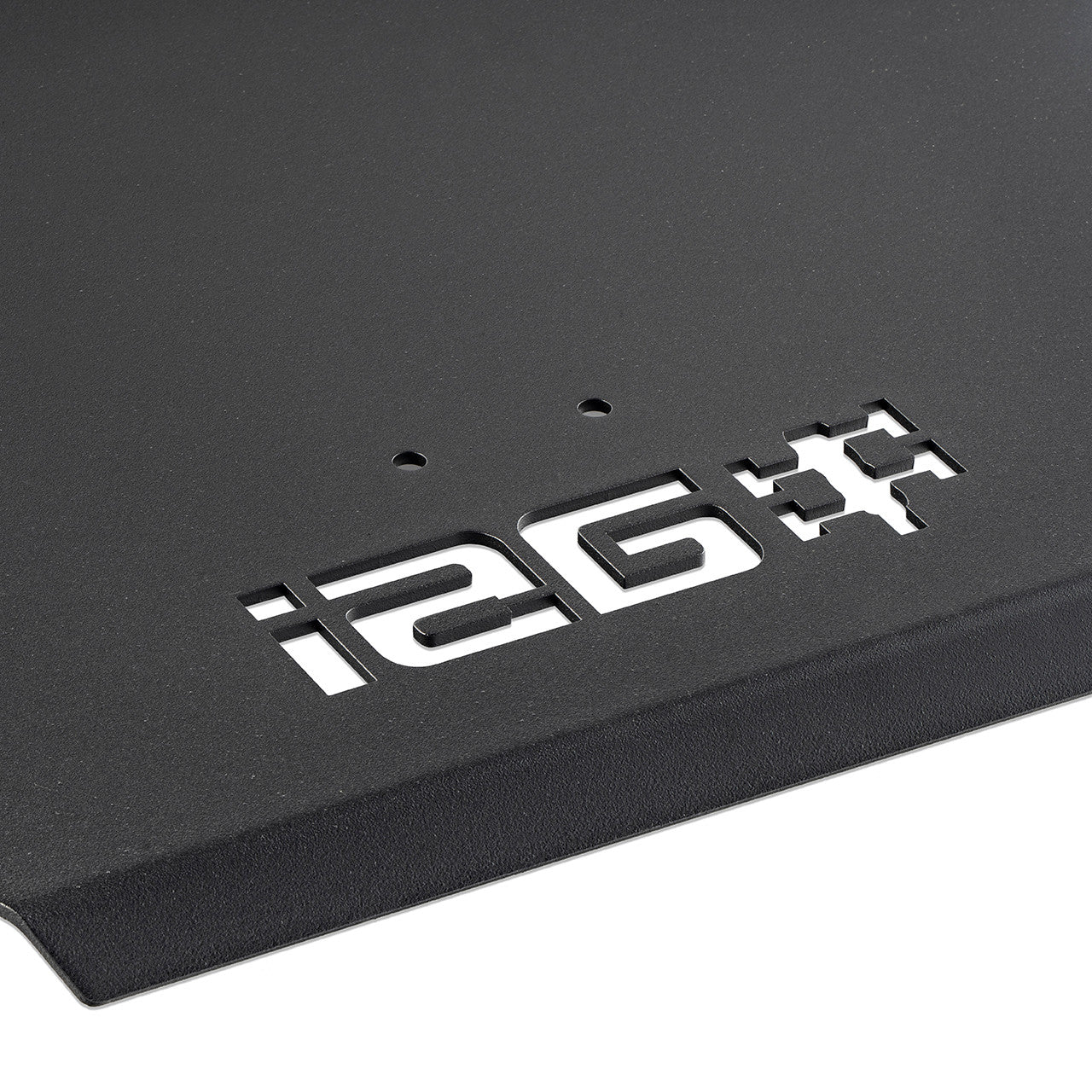

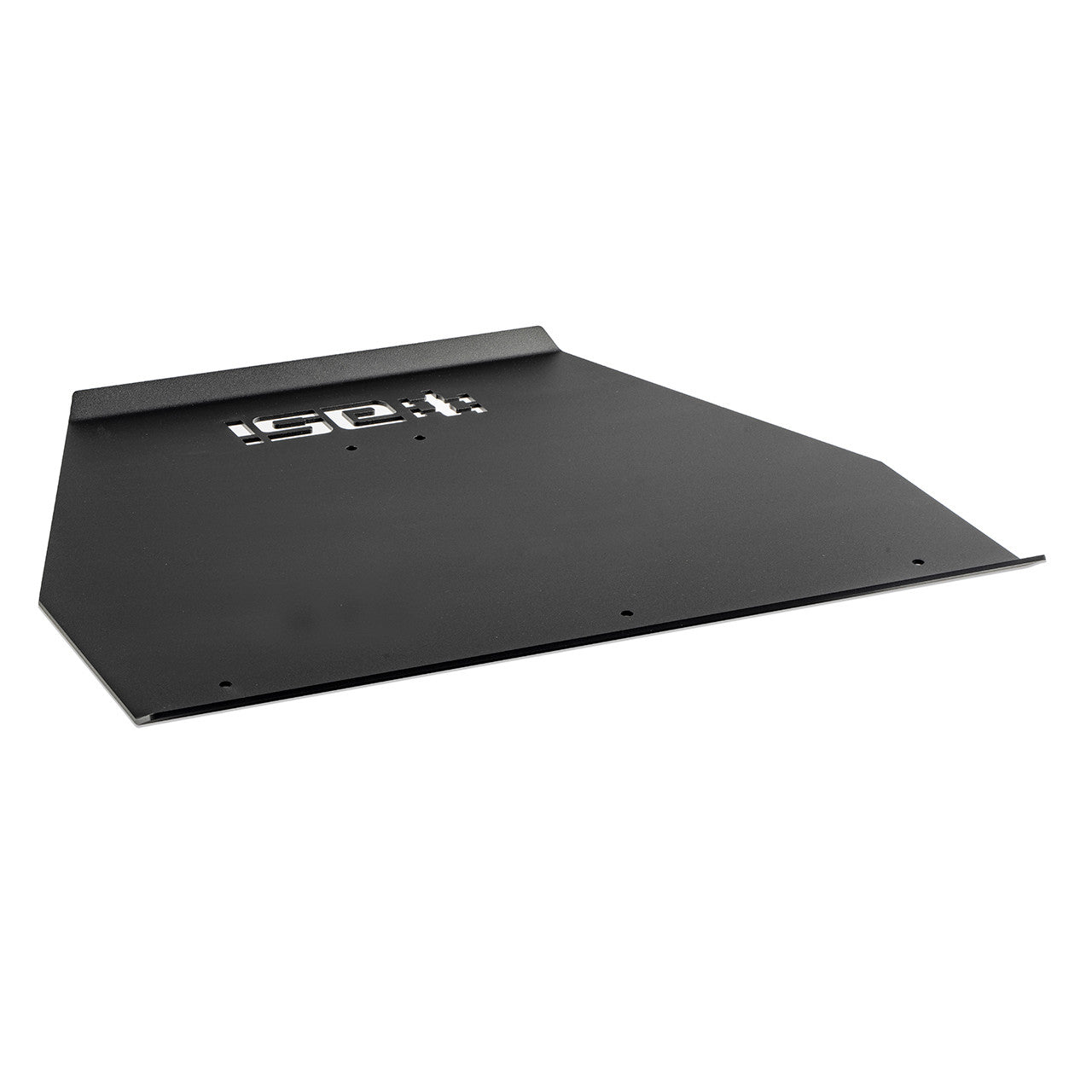

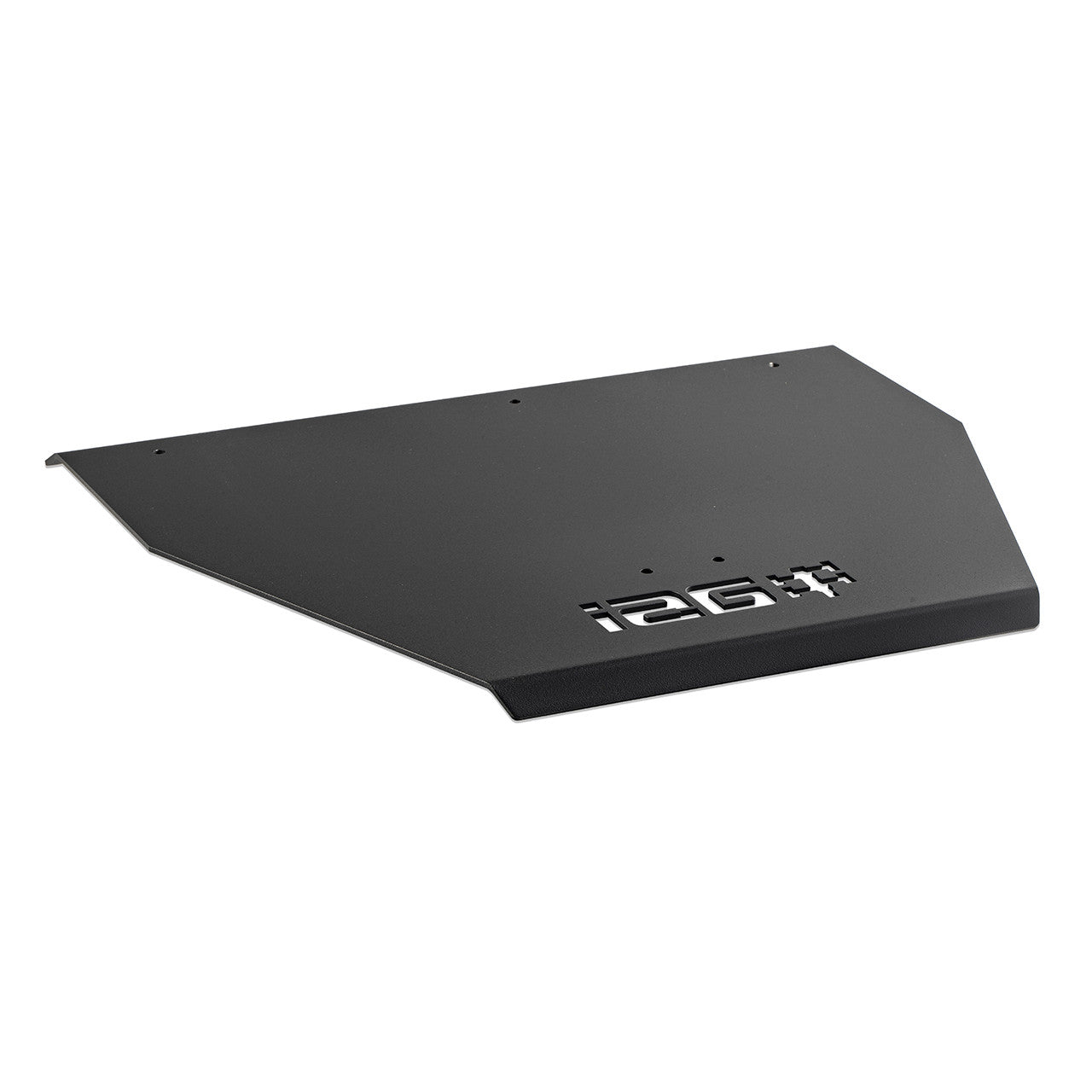

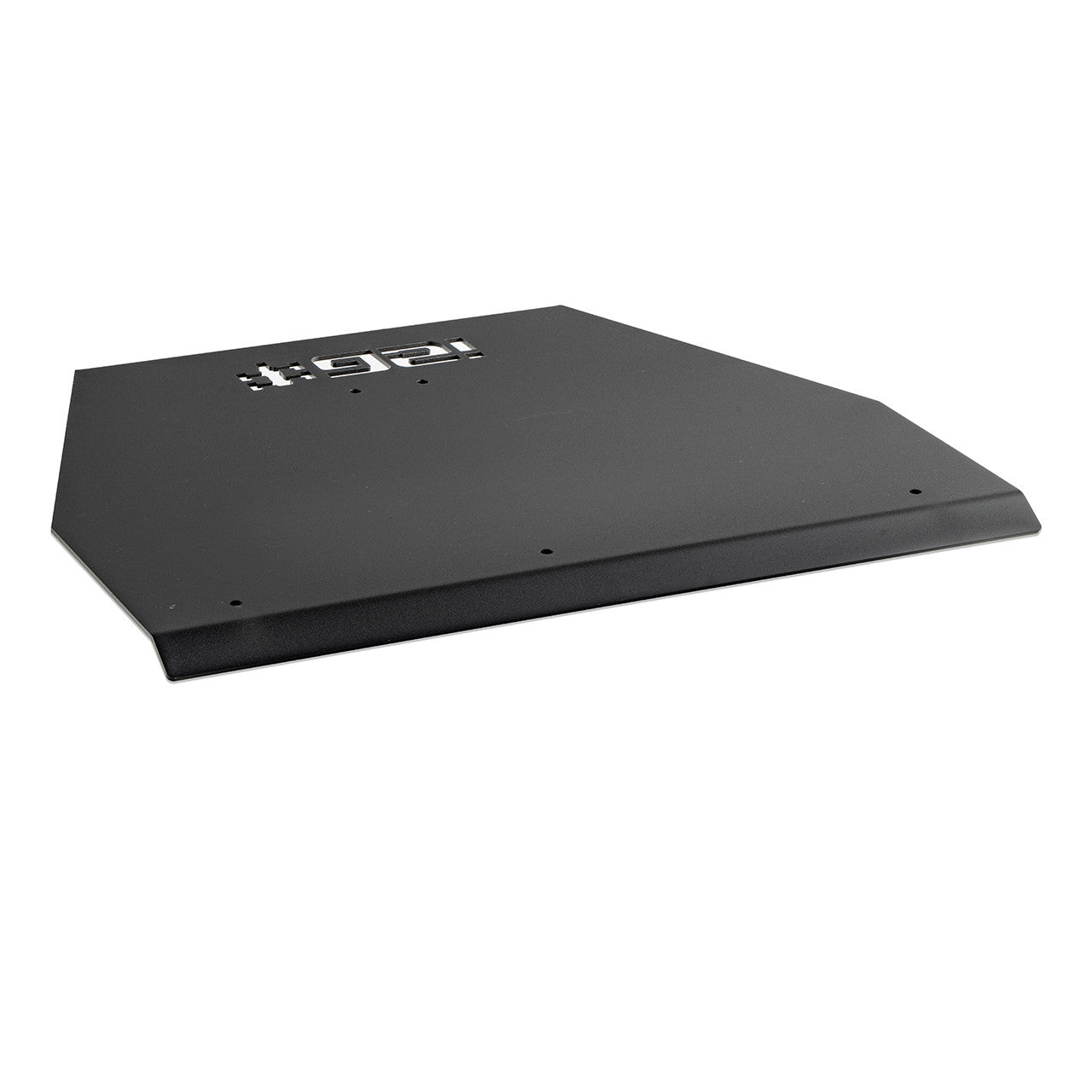

The IAG Rally X Skid Plate is constructed from a single, solid piece of 3/16” thick 5052 aluminum. Known for its strength and high corrosion resistance, 5052 aluminum is also lightweight, making it a perfect match for racing applications. This skid plate features a protective layer of black powder coating on both sides of the plate. Highly resistant to wear and tear, corrosion, fading and chipping, the powder coated finish not only increases the longevity of the aluminum plate, but also enhances the aesthetic appeal.
EASY INSTALLATION

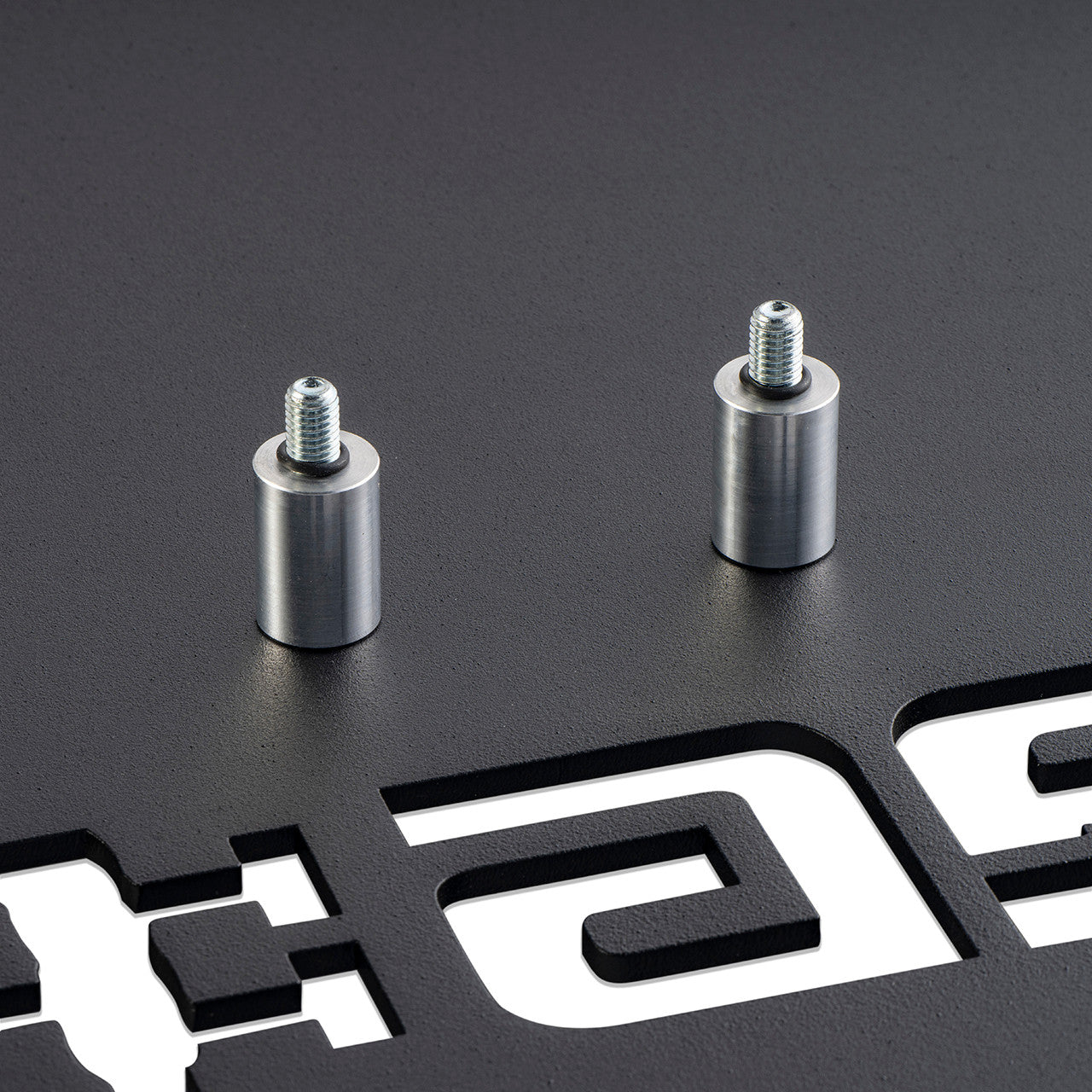

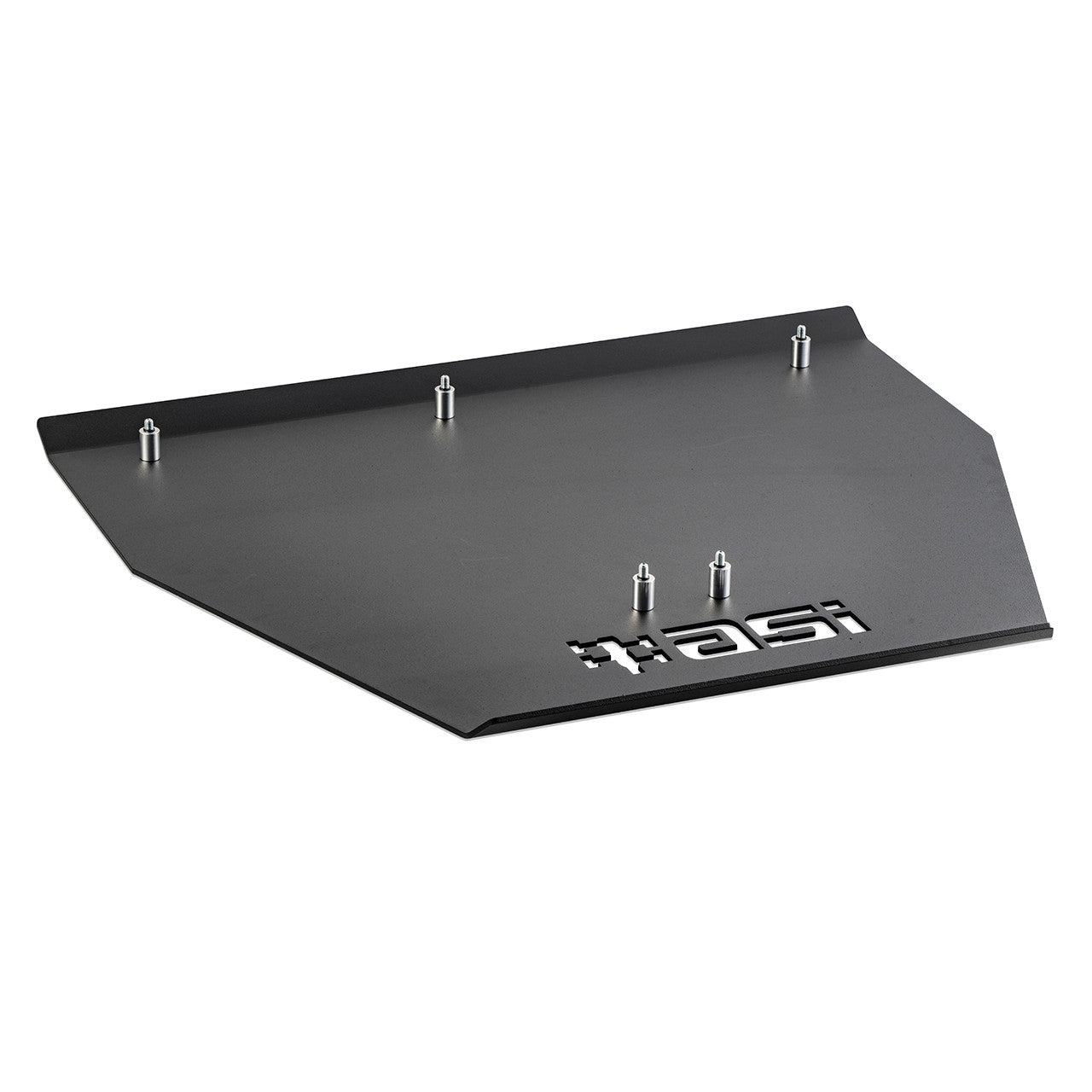

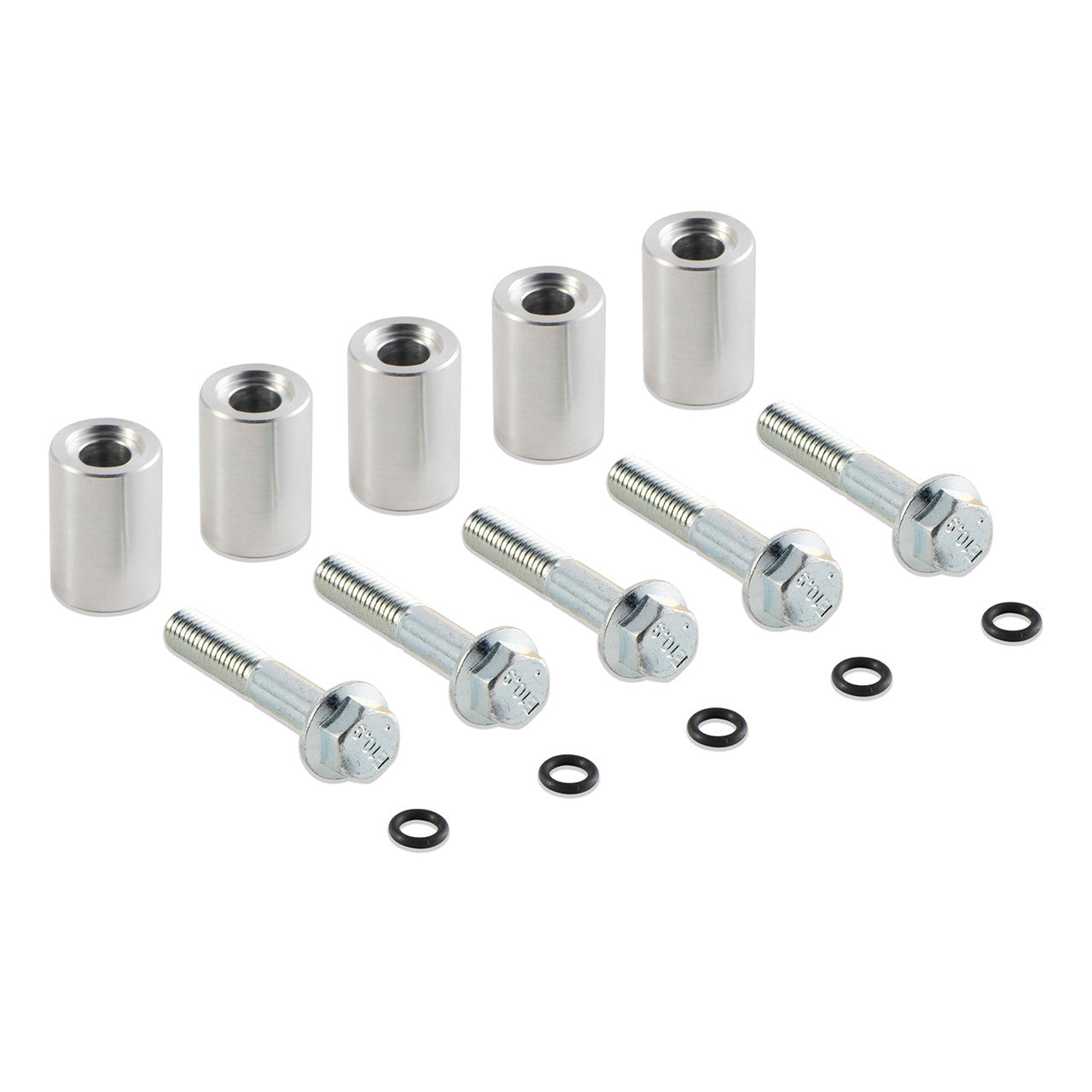

The IAG Rally X Skid Plate is easy to install, and the entire task can be completed in under 10 minutes. The pre-drilled mounting holes align and mount up to already existing mounting points on your Subaru’s subframe and transmission brace. All mounting hardware is included, along with spacers that allow for installation on vehicles that require additional clearance due to aftermarket headers. While it’s easier to install with the use of a lift, it is not a requirement; a sturdy floor-jack as well as a basic set of socket wrenches will suffice.
Additional Specifications
Additional Specifications
Installation Instructions
Installation Instructions
PDF Guides
Installation Videos
IAG Rally X Skid Plate for 2002-07 WRX / STI
Fitment
Fitment
S
I finally got this thing installed on my 05 WRX.
It's quite thick and heavy, I really like the build quality and the hardware it comes with. I had to drill and tap a broken bolt in my u frame and one in my jack plate. That's not related to the product itself but heads up to anyone have installing this, these cars are old now so check the mounting points before crawling under there to install it.
I can confirm that this skid plate will fit(just barely) with the IAG oil pan and IAG headers as well. I also have IAG engine mounts so if you have saggy OEM mounts there's a chance the pan would hit.
I wish there was some additional support at the rear of the skid plate so the jack point was still functional. I'm not sure I trust jacking the front of the car up there now. I may fab up some spacers similar to the included ones and add 2 more bolts to the rear that attach to the jack plate mounting points to address this.
Z
Fits great even though my U-Frame is bent. Easy to install. Great quality. Fast Shipping. No sticker included though :(
E
Picked this up at IAGs headquarters. The plate is a sturdy design, offering maximum protection. Fit and finish was superb, no drilling or adjustments needed as mentioned in another review. Only suggestion could be weeding the spacers into place. But highly recommend purchasing. Also worth mentioning, no rattling or any other weird sounds coming from the car after installation.
G
This skid plate is good, but I have three complaints:
1) the holes that are predrilled in the plate did not line up. They were off by about 1/16" so I had to widen the holes slightly on the skid plate. This might not be an issue with the plate itself seeing as how my car is 15 years old- things might have shifted a little.
2) there is no venting cut into the skid plate at all so oil pan temps are going to rise
3)there is no opening cut to drain oil so this is going to have to be removed for simple service.
Still extremely happy with the purchase and I knew about issues #2 and 3 before buying. I will probably end up cutting it a little myself down the road.
E
Will this fit under the IAG street series oil pan?
It is a very close fit but they will clear. Keep in mind that this will block the cooling fins on the pan if you would like to see that benefit.
B
Will this fit on 2005 Subaru Impreza 2.5RS? I thought it's the same platform but it told me not when I input it.
While it does have the same chassis, it shoud fit on the RS but we do not have confirmation on that.
O
What is the weight difference from the stock plastic undertray?
It is about a 10-15lb difference.
J
Will this fit a 2007 Subaru Impreza WRX WAGON?
Yes, this fit the WRX wagon.
A
What is the weight of the skid plate?
The box weight is 19lbs.
