IAG Performance EJ Street Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Black)

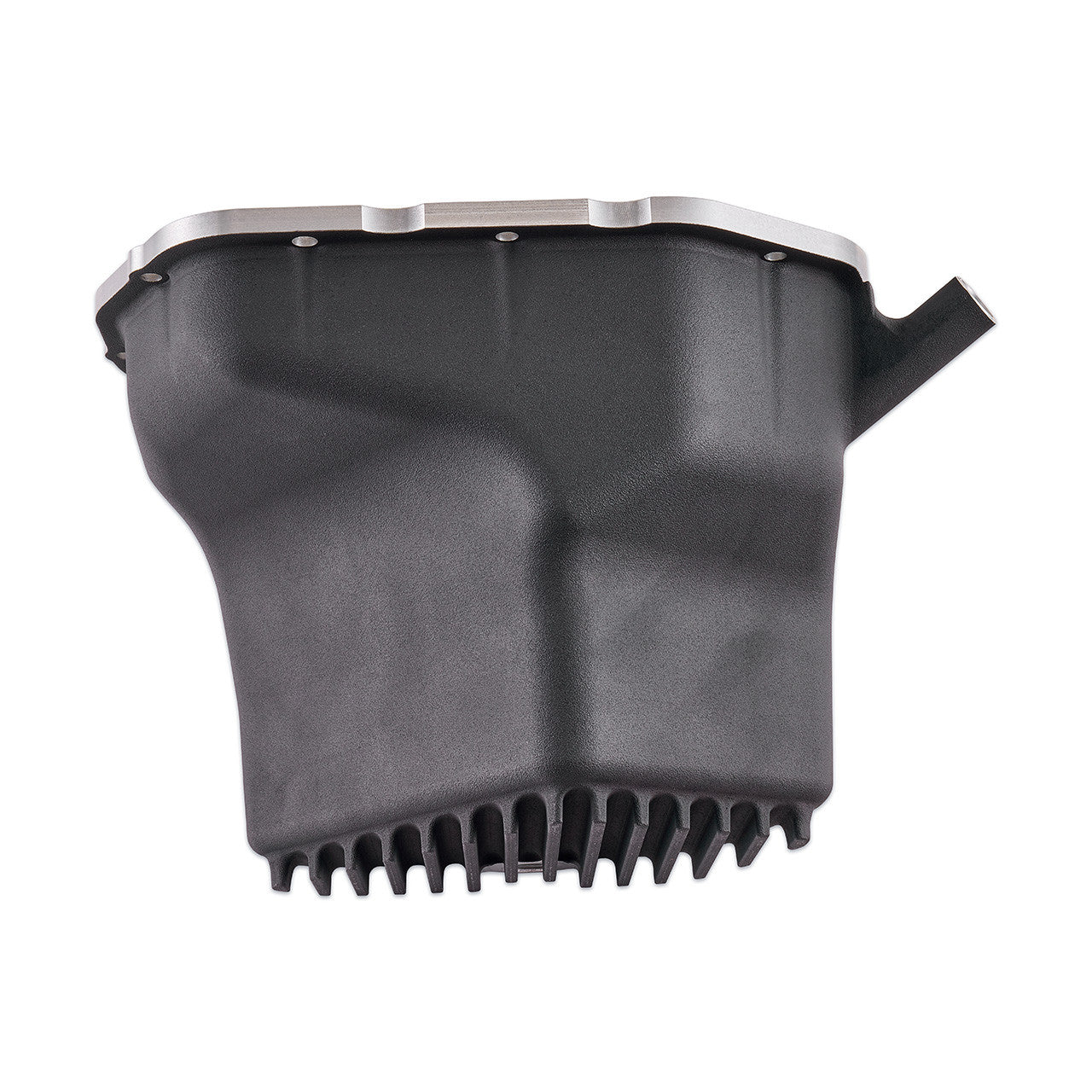

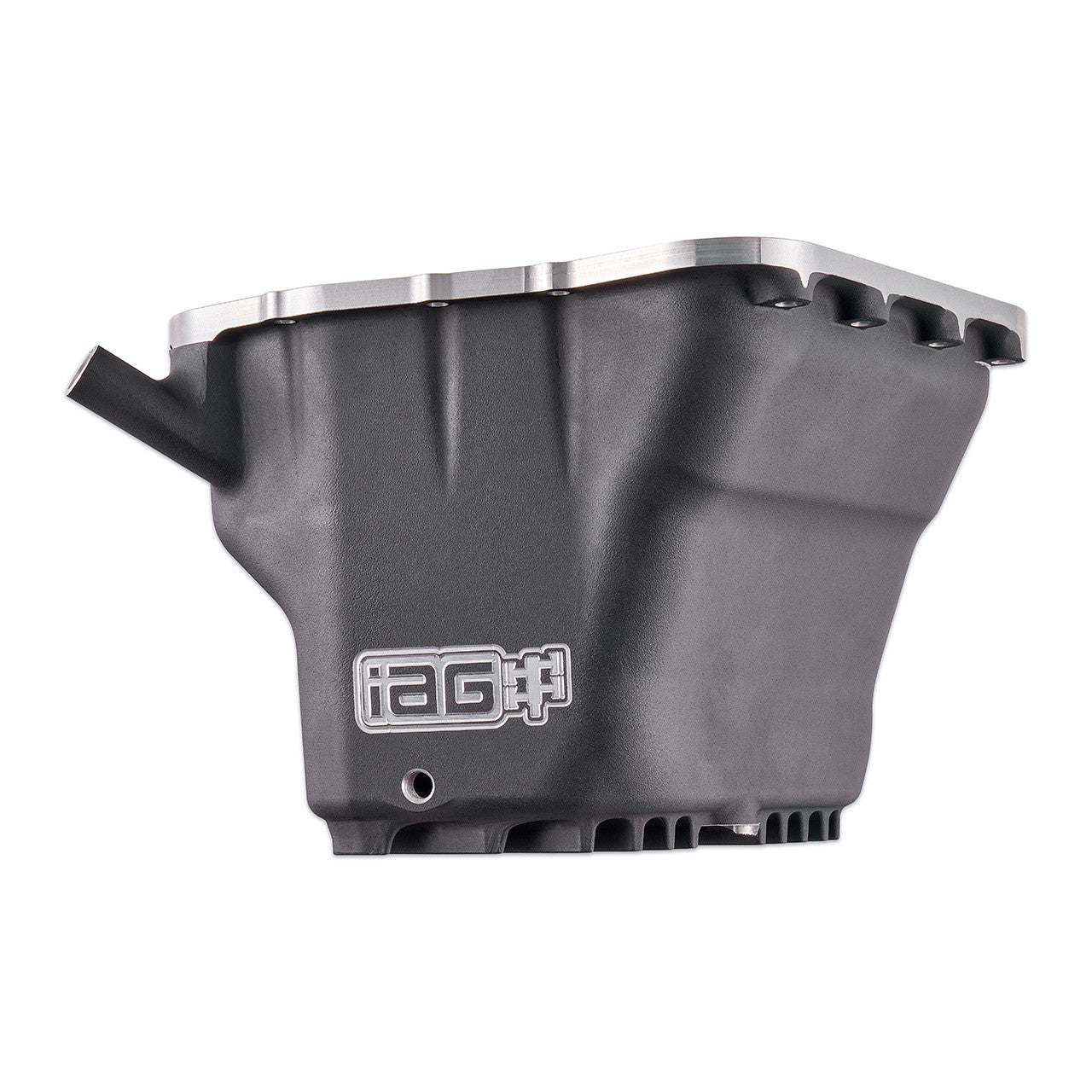

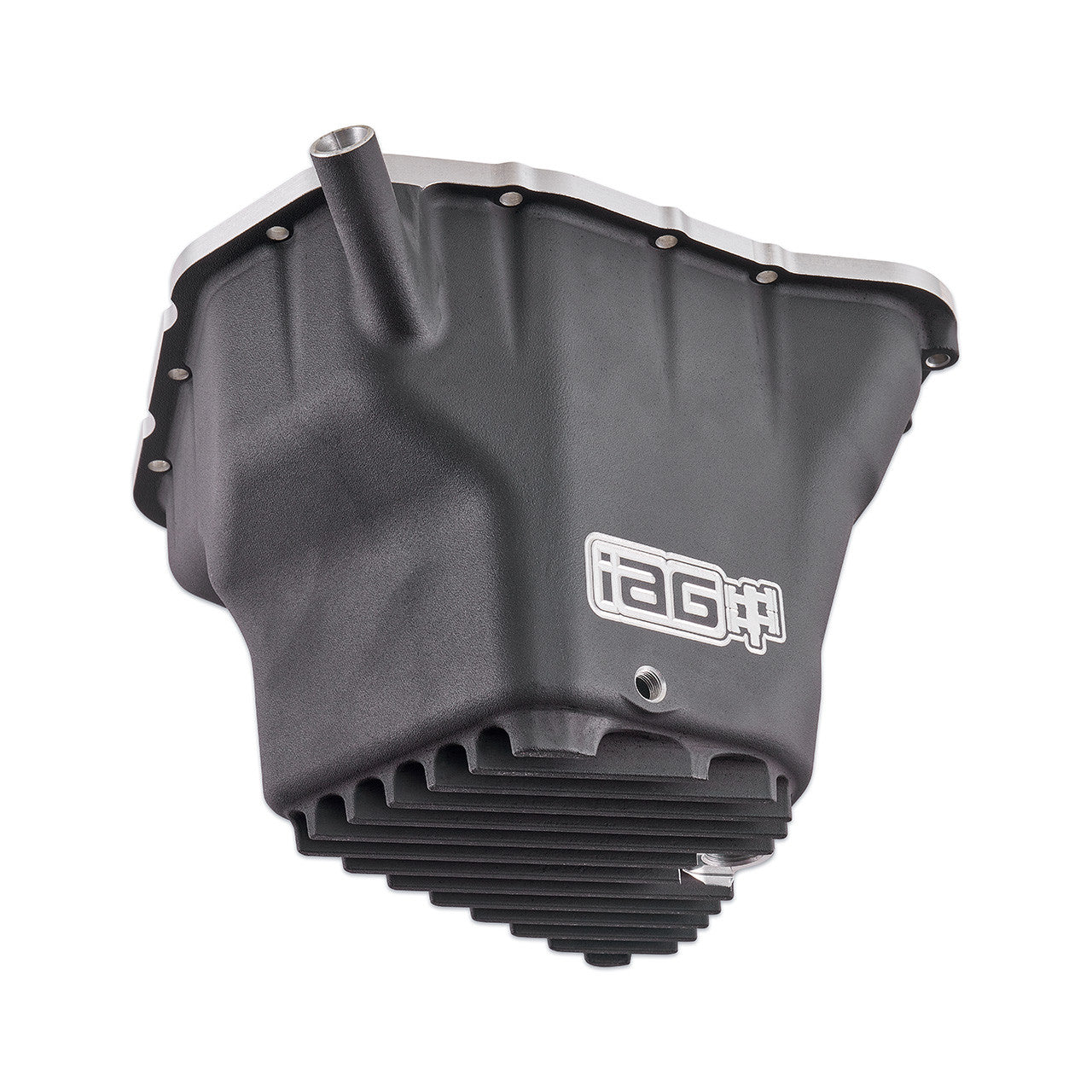

The IAG Performance EJ Street Series Oil Pan for the Subaru WRX, STI, LGT and FXT is uniquely designed and CNC machined to suit a wide range of street and track applications. This Street Series Oil Pan is constructed from extremely durable cast aluminum and was engineered to work with a larger variety of popular headers in mind, while still increasing oil capacity up to 30% over OEM.

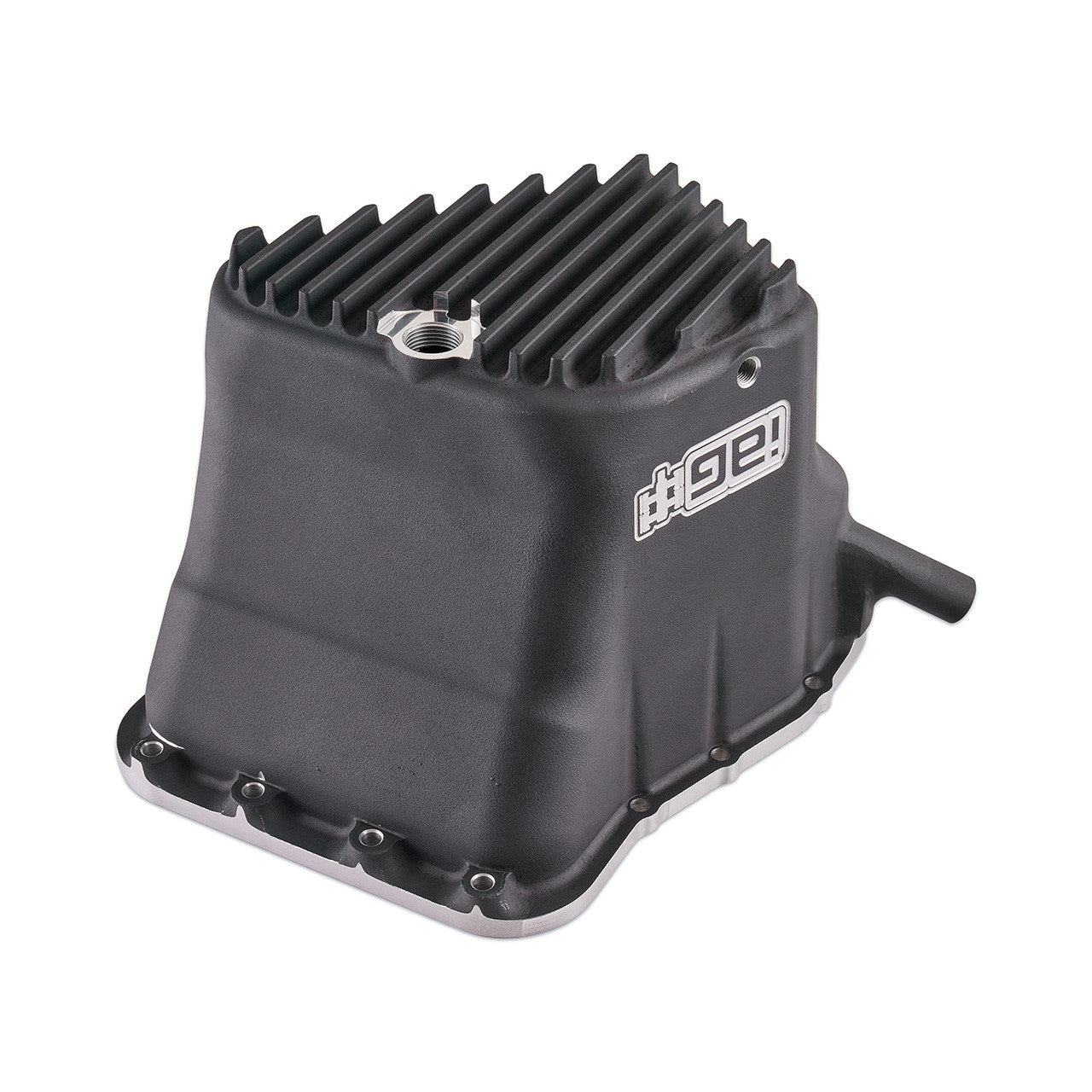

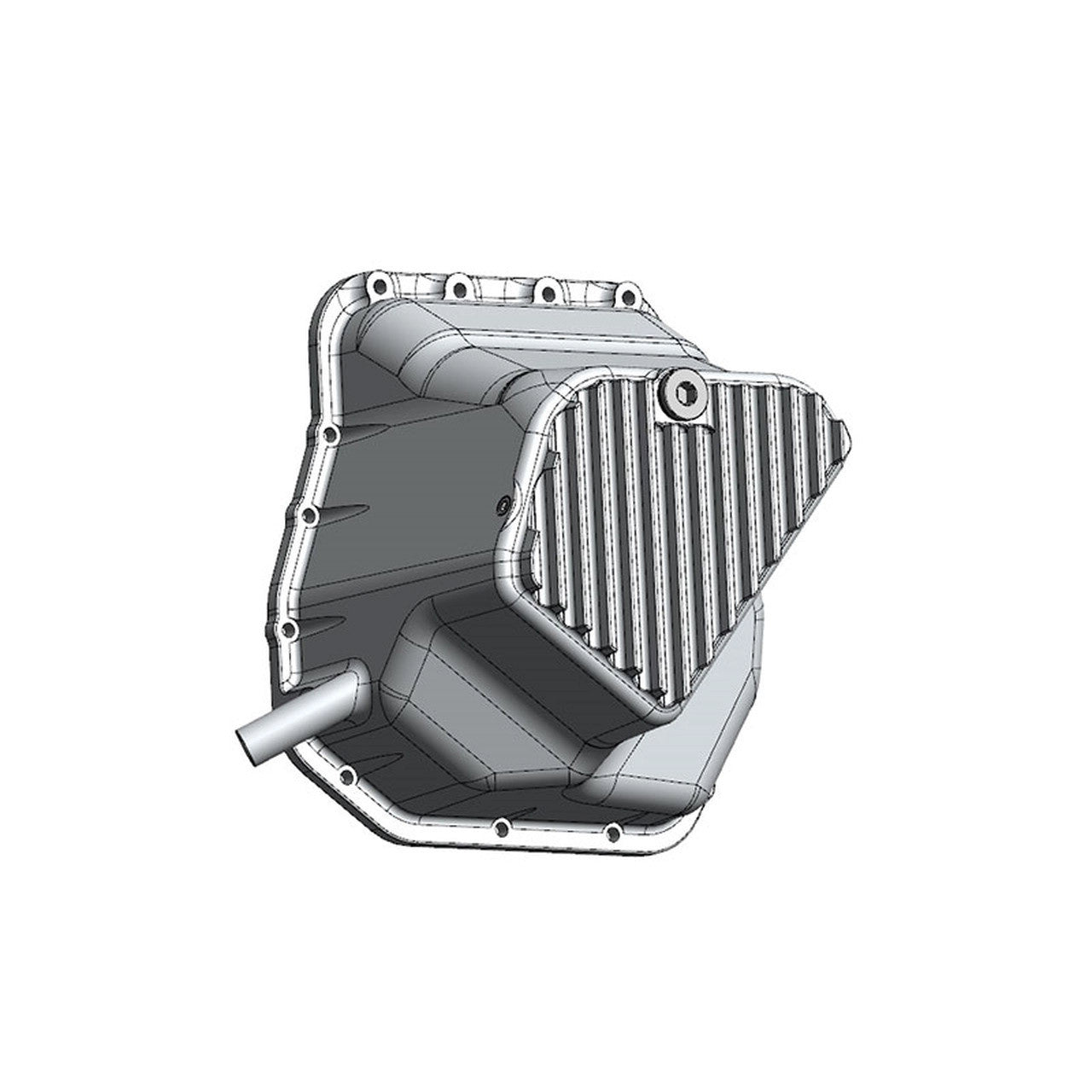

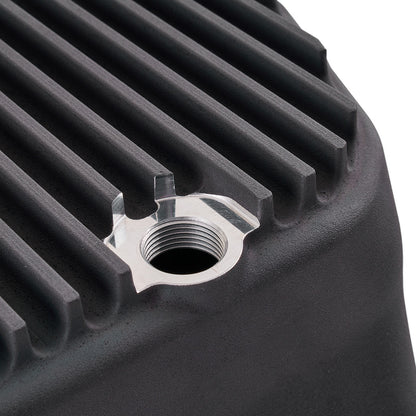

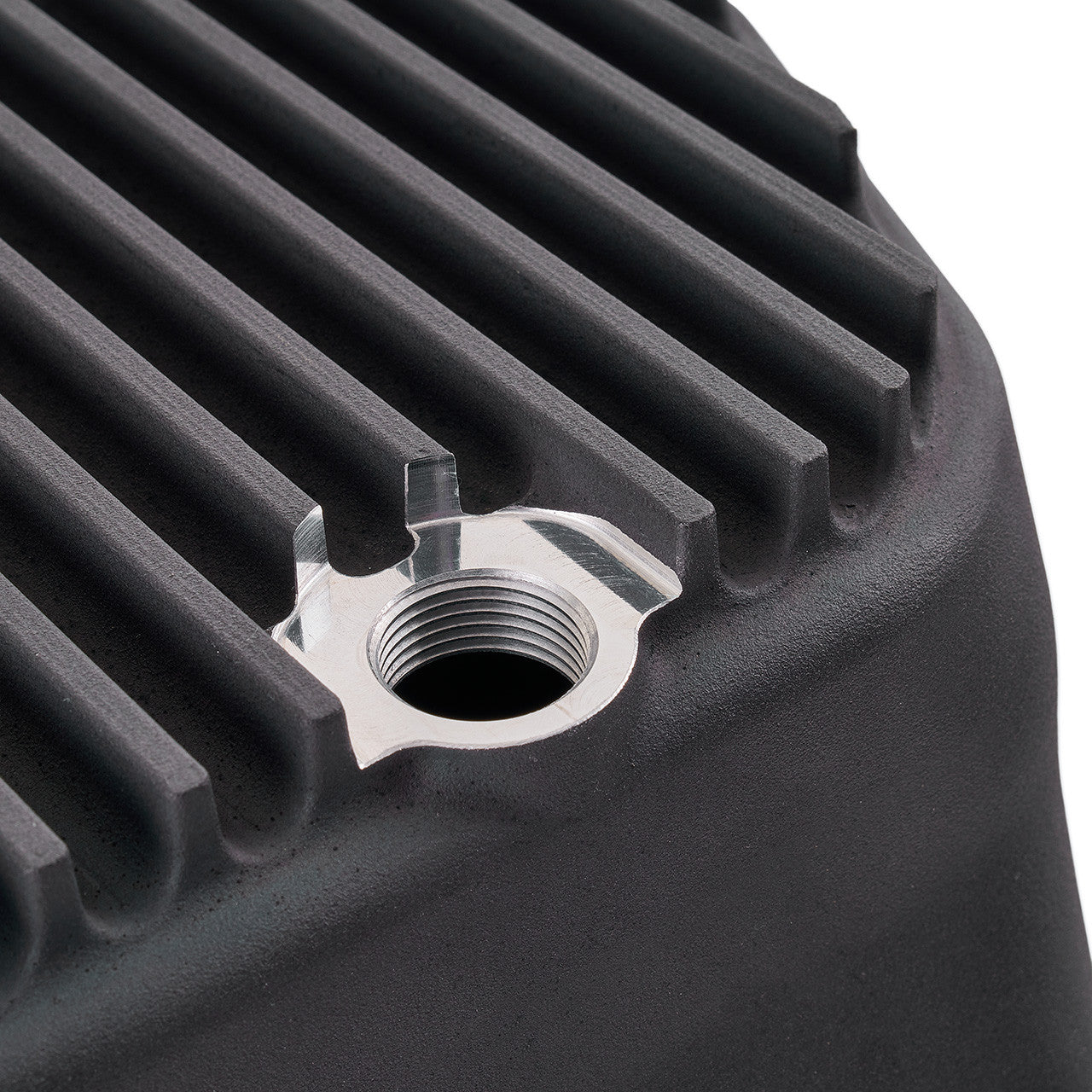

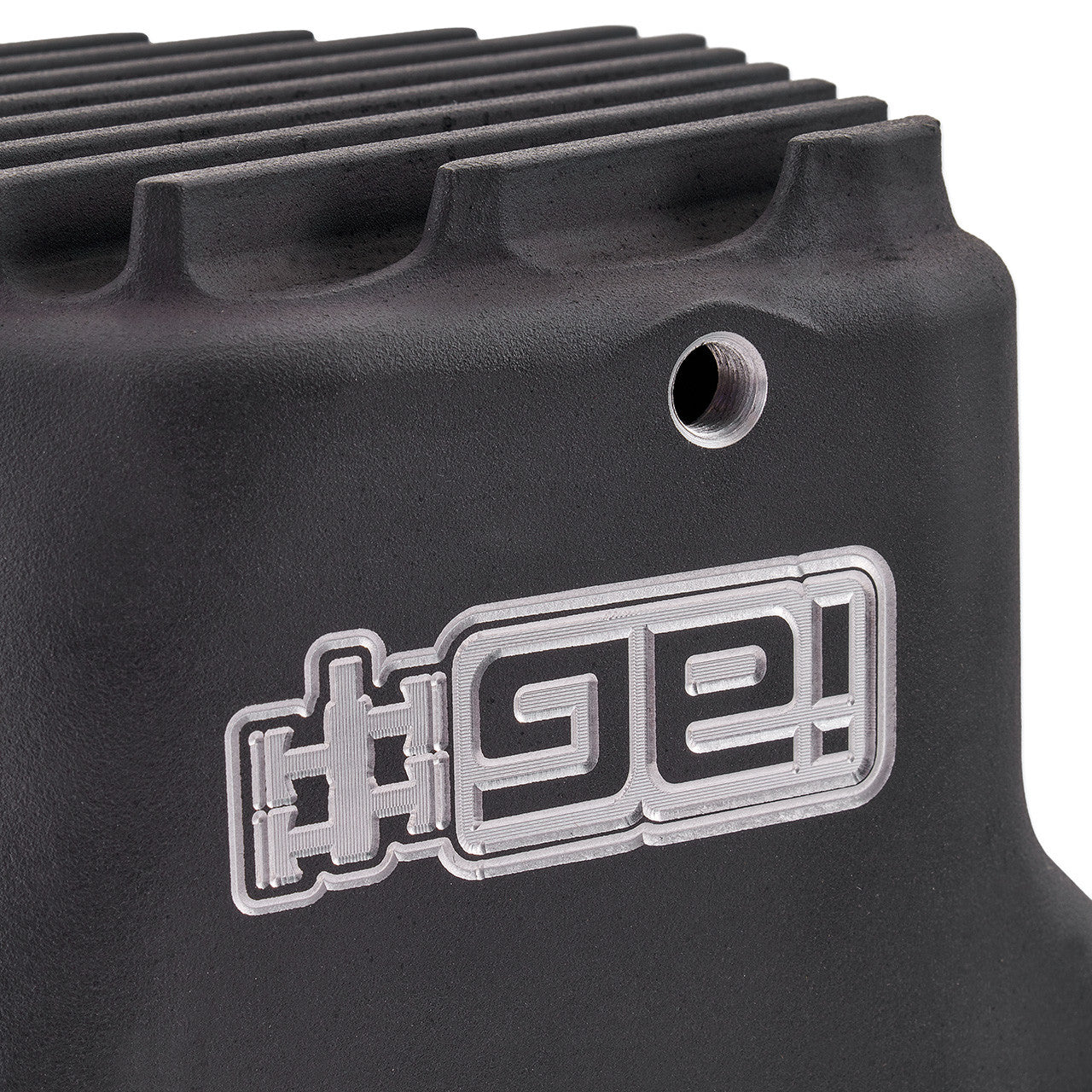

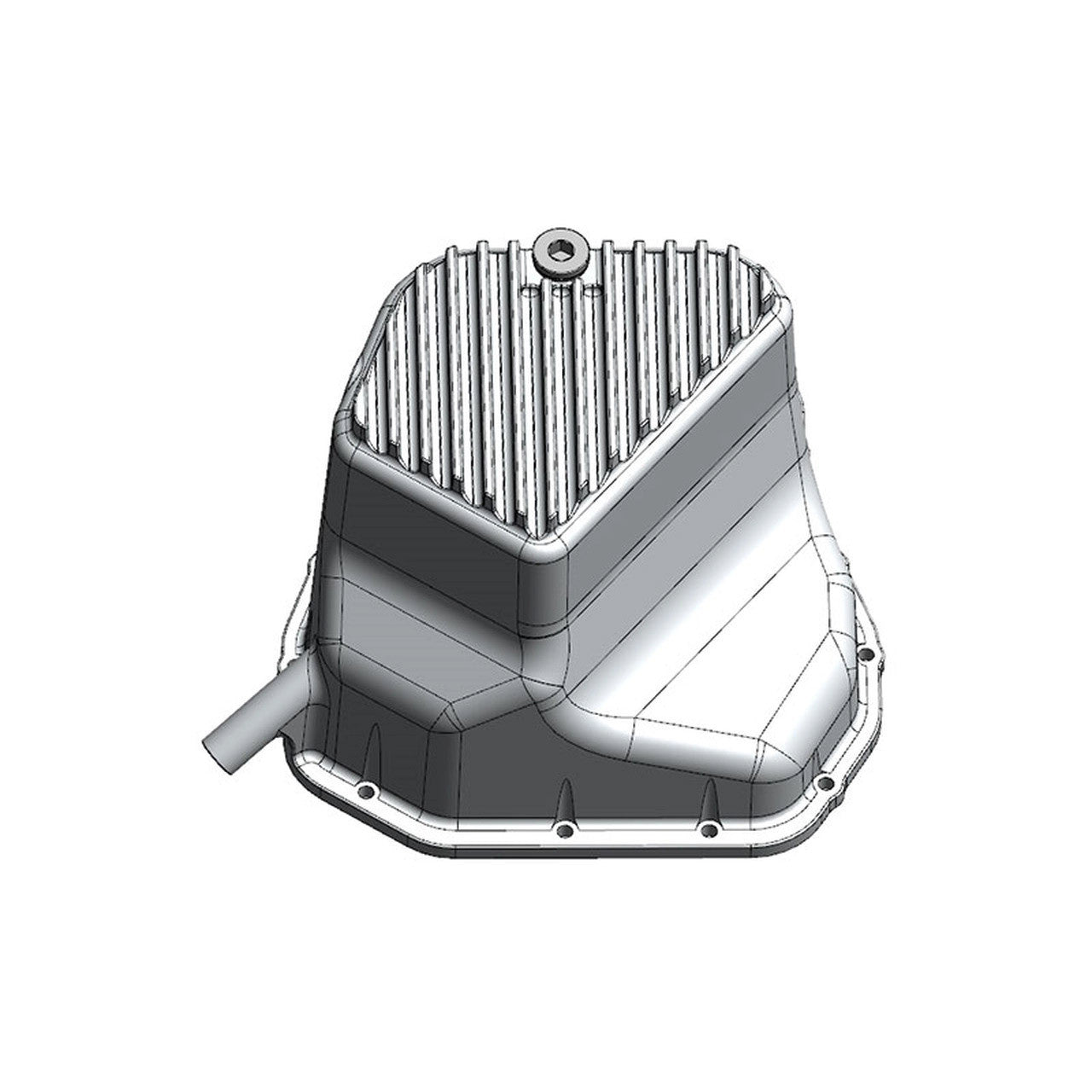

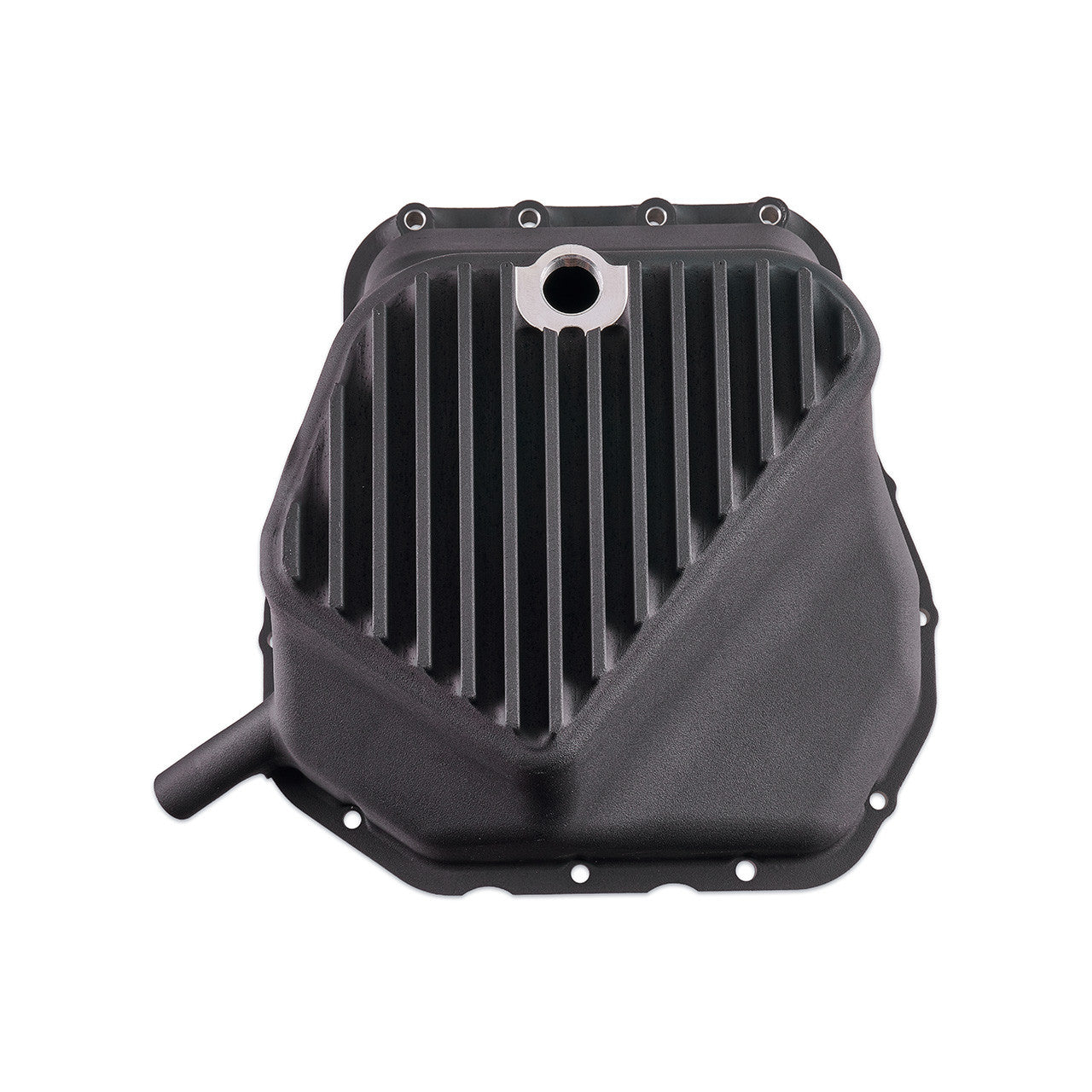

The IAG Performance EJ Street Series Oil Pan features external cooling fins to aid in dissipating heat from the oil as air passes over them. The included oil drain plug is integrated into the lower cooling fins at the absolute bottom of the pan to allow for easy draining and to ensure that all waste oil is removed during maintenance changes. The EJ Street Series Oil Pan features a 1/8th inch NPT port, making it compatible with many popular oil temperature sensors. We also include a 1/8th inch NPT plug in the event that the sensor port is not used.

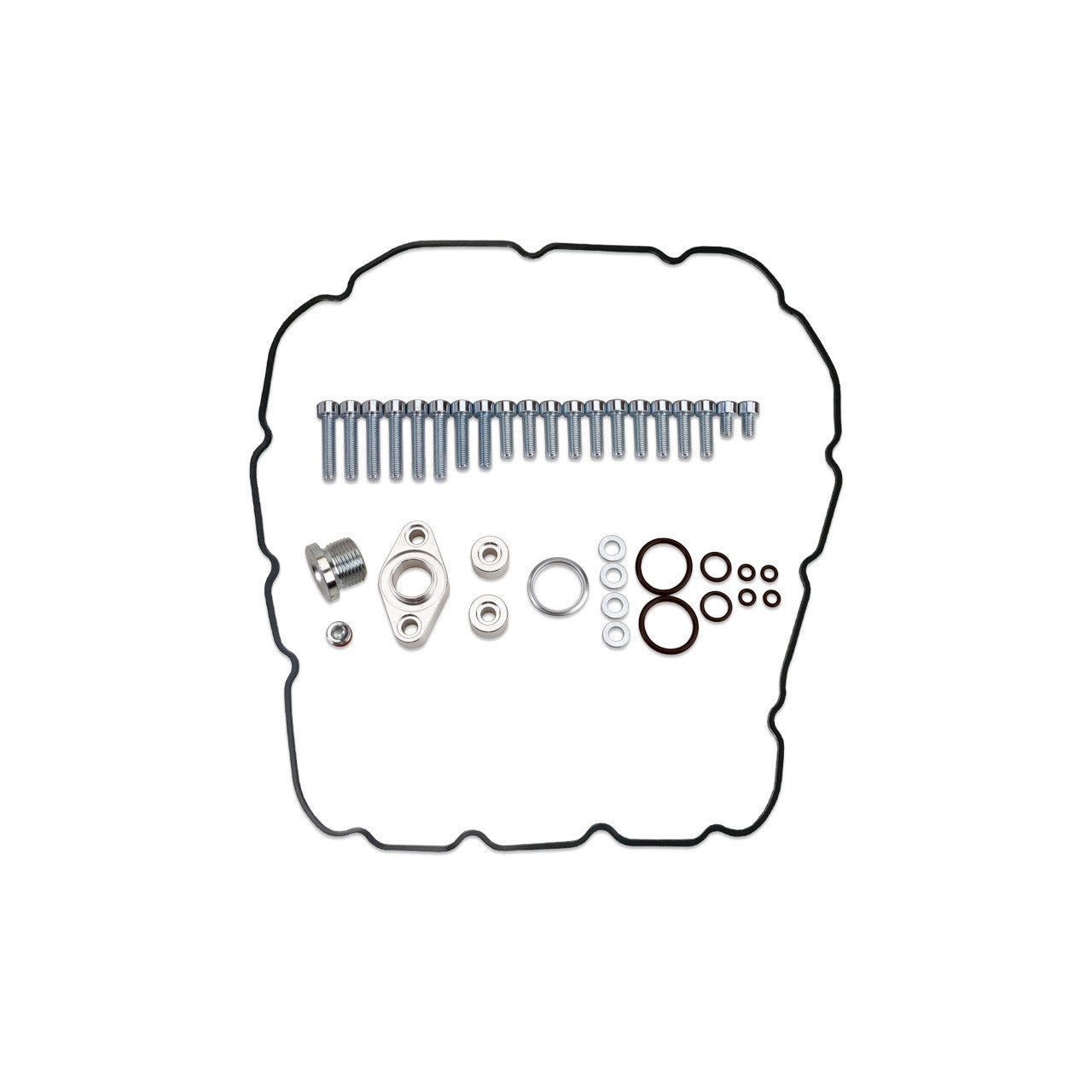

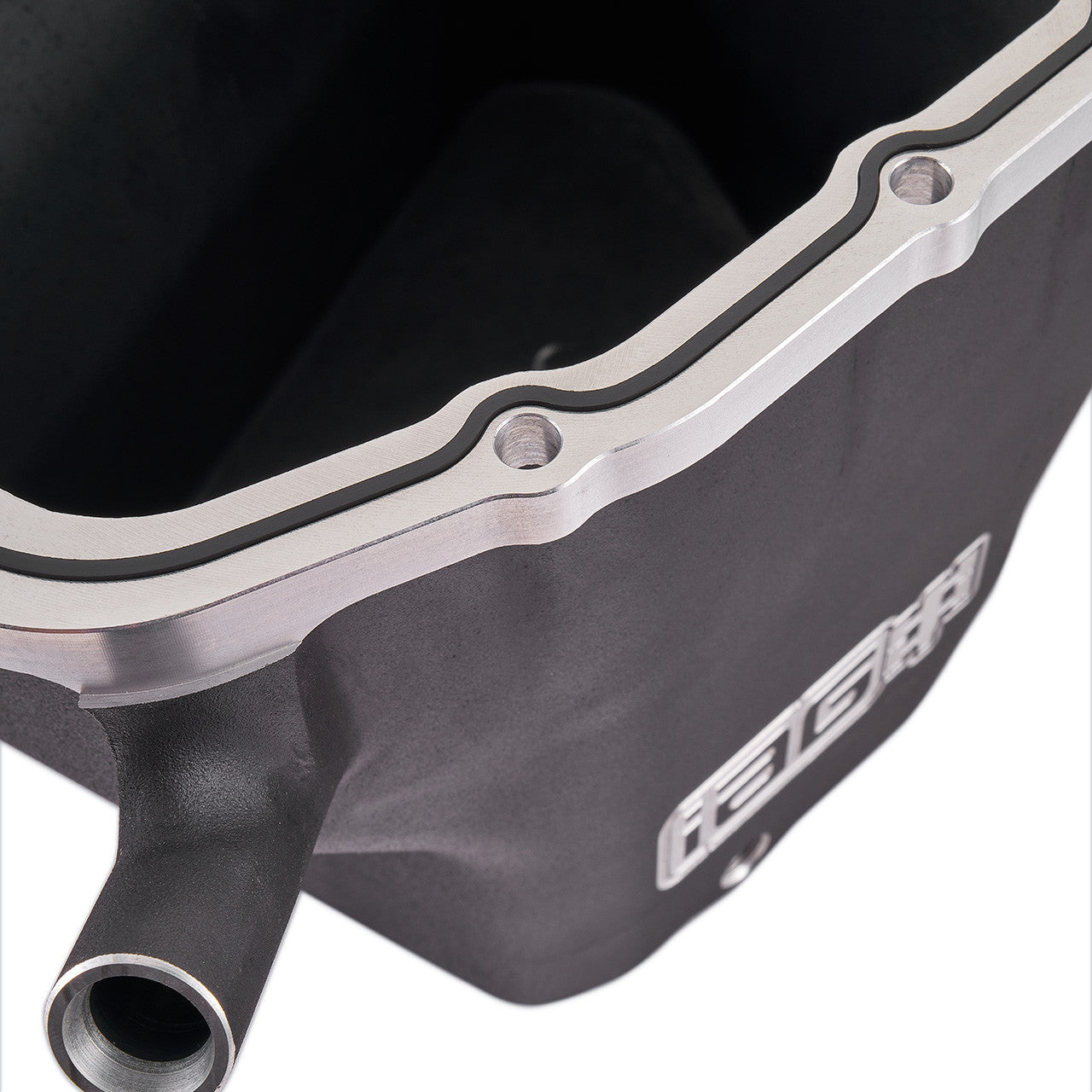

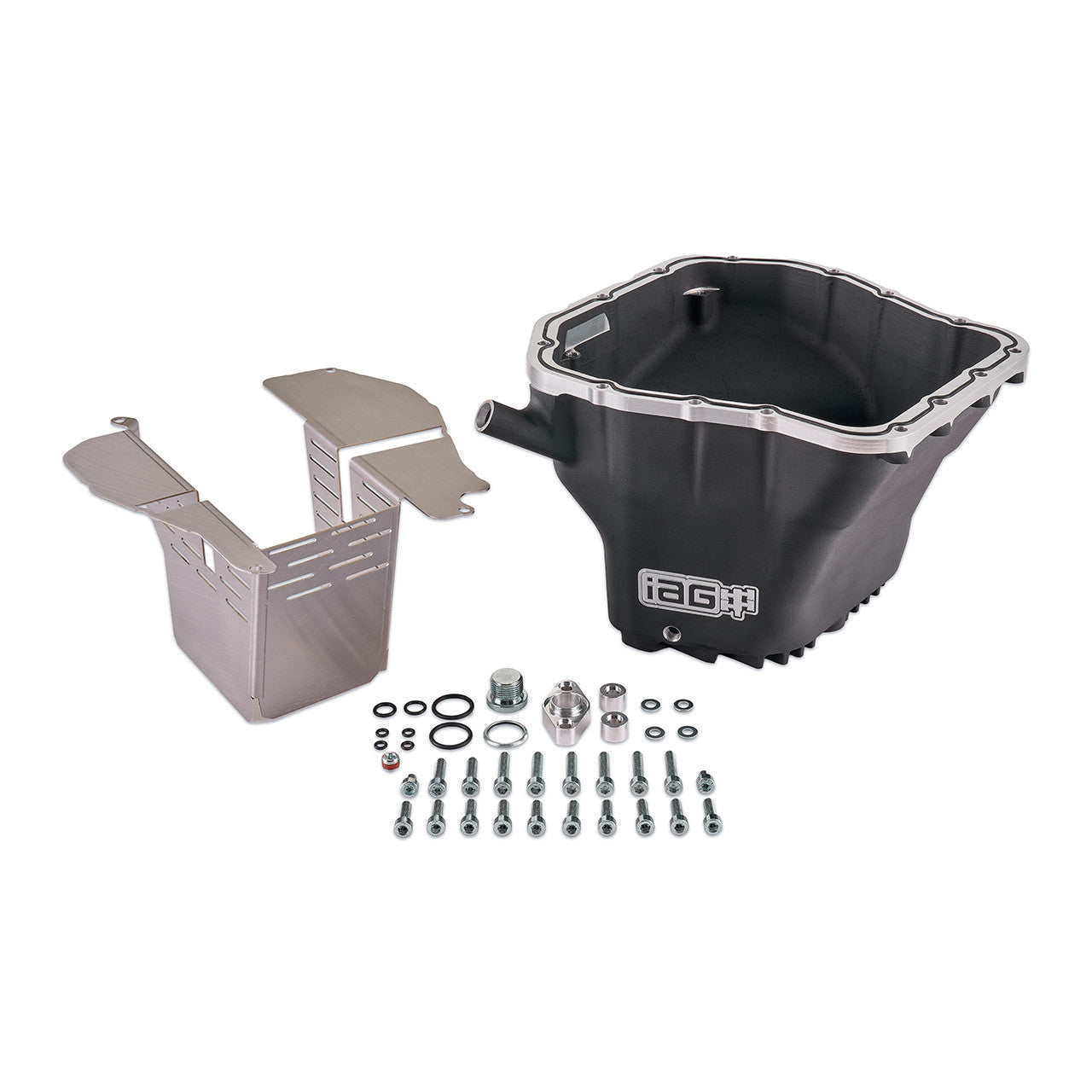

The IAG Performance EJ Street Series Oil Pan incorporates a range of well-thought-out design elements; the drain plug uses an OEM style crush washer, so there is no need to hunt around for odd sizes. Its upper flange mounting surface and o-ring groove is CNC machined for tighter tolerances and better hardware fitment. The molded O-ring is included and there is no need to apply silicone sealant to the flange during installation. The pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick and to prevent leaks.

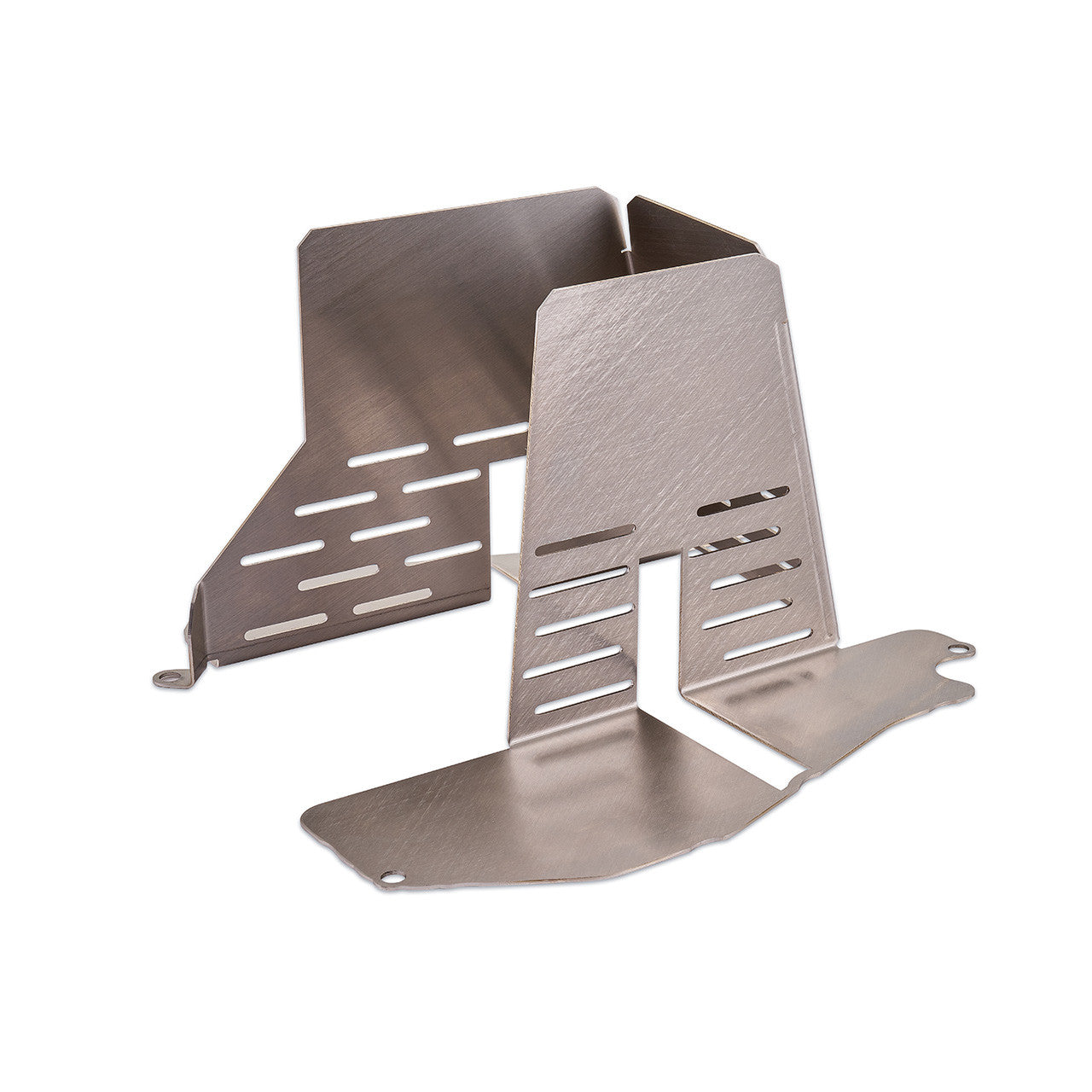

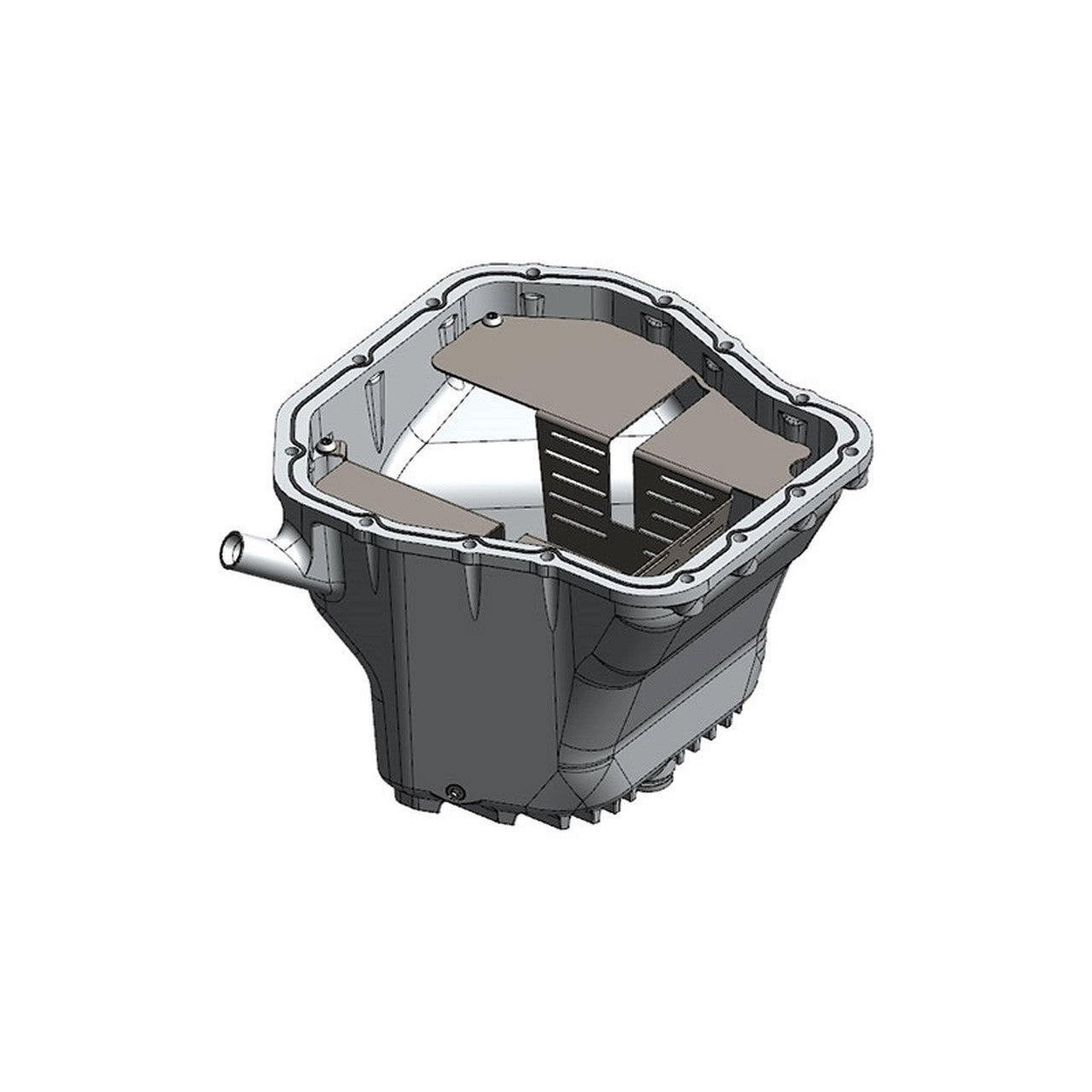

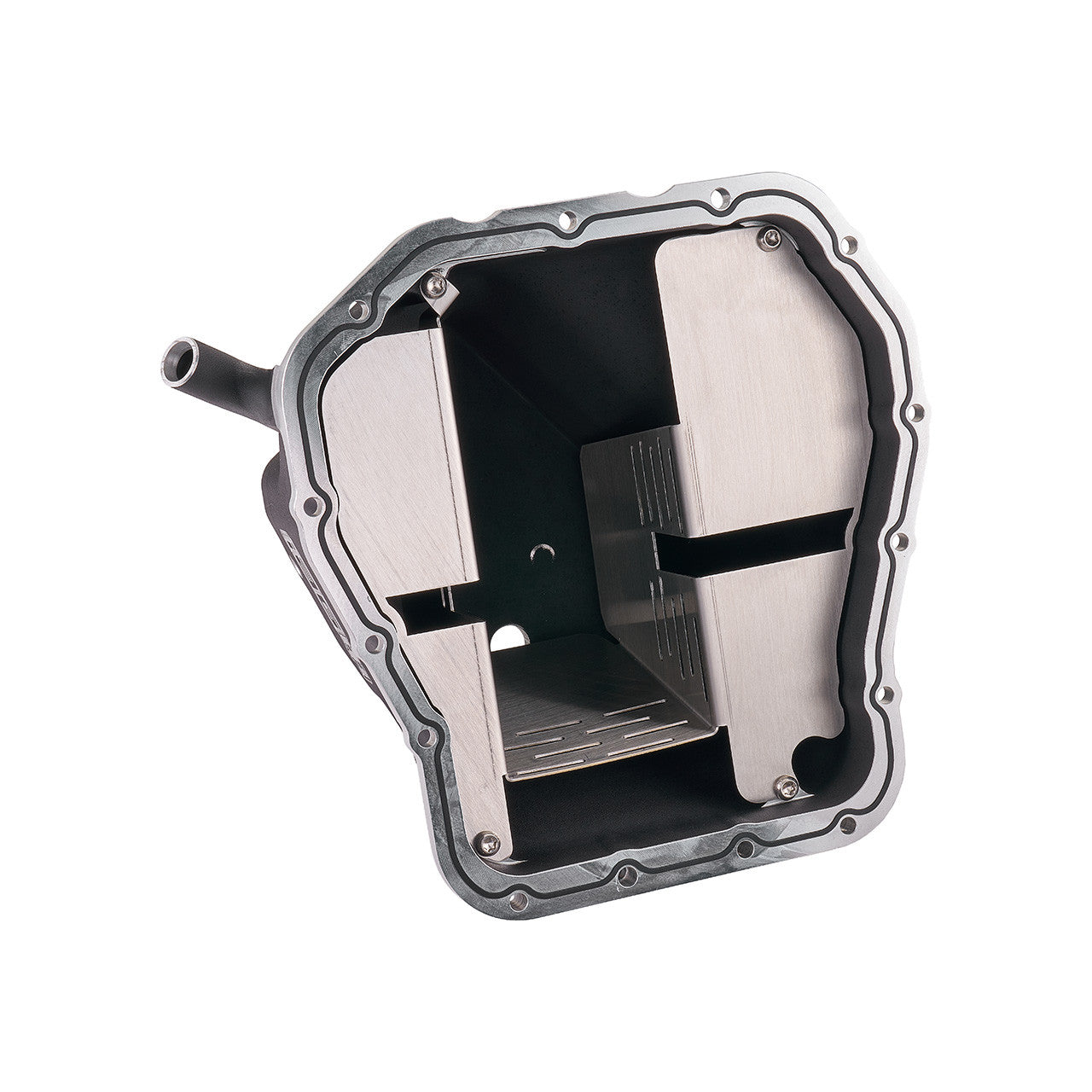

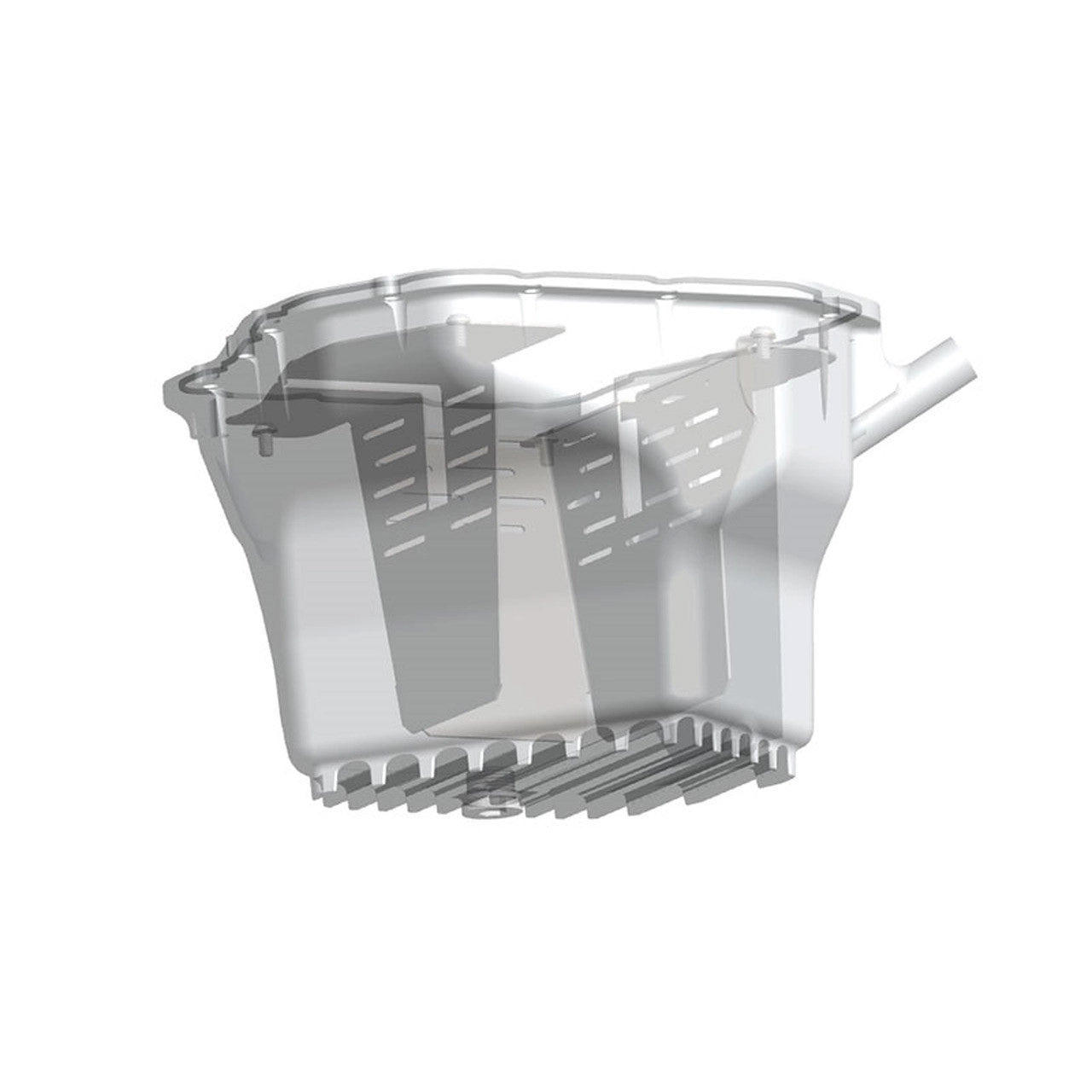

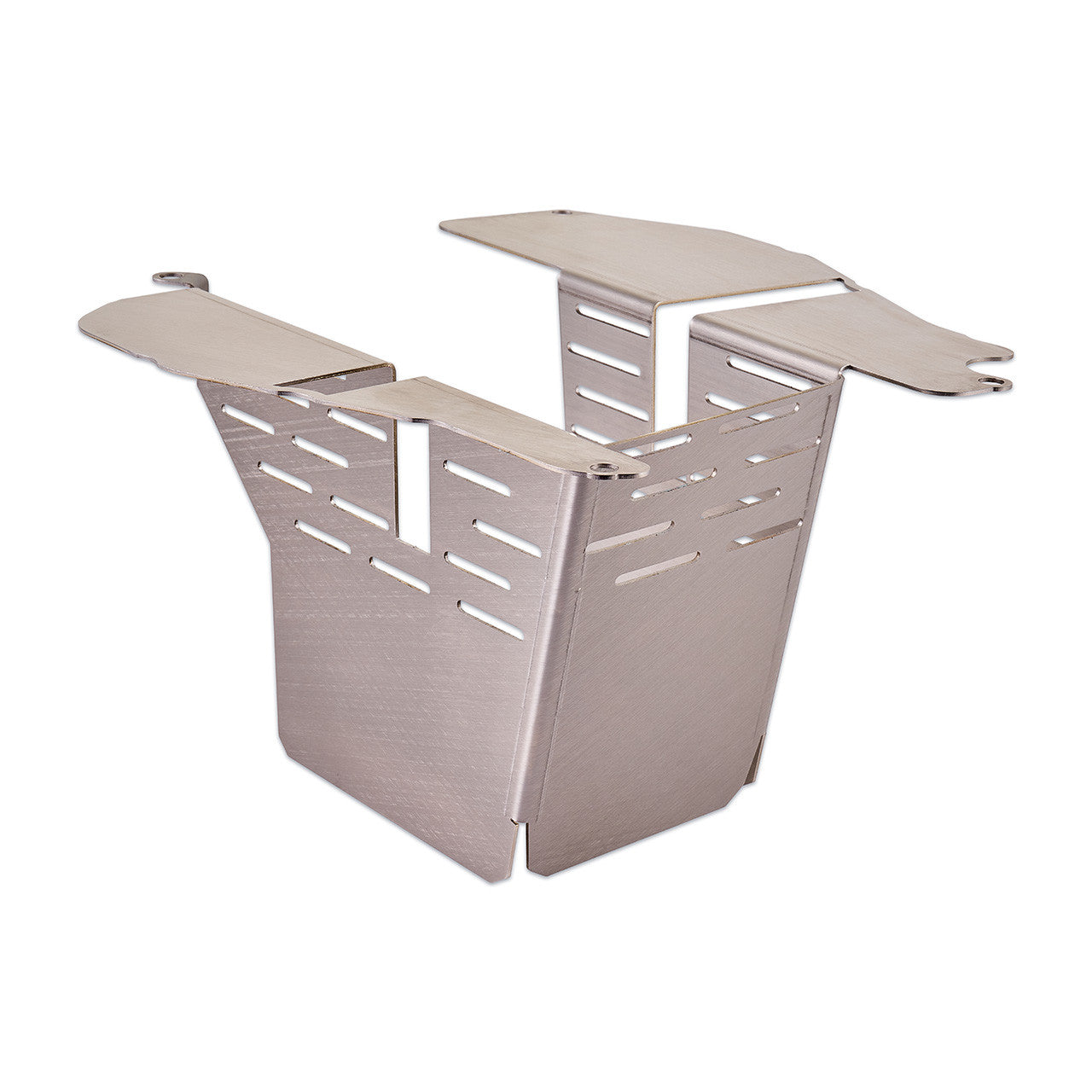

Internally, the EJ Street Series Oil Pan includes our integrated, stainless steel oil baffle that is designed to prevent oil inside the pan from sloshing around and creating cavitation, which can lead to oil starvation. The baffle is engineered to be removable for future upgrades and easy cleaning. Unlike welded baffles, the IAG Performance EJ Street Series Oil Pan Baffle won’t crack due to vibration.

IAG Performance’s EJ Street Series Oil Pan is designed to work with the IAG and Killer B oil pickup. It is also compatible with the PN# IAG-ENG-2087 Oil Control Baffle and Windage Tray, or our PN# IAG-ENG-2210 Windage Tray. If you are planning to race your car, we recommend our Competition Series Oil Pan. The Comp Series Pan features additional internal baffling to keep oil where you need it.
