IAG Garrett GT Series Turbo Oil Feed & AVCS Line For 2006-14 Subaru WRX, 04-21 STI, 05-09 LGT, 04-08 FXT
IAG-ENG-2072
23 in stock
Regular price
$139.99
Sale price
$139.99
Regular price
Unit price
per
Shipping calculated at checkout.
FREE SHIPPING on most orders over $249 in US 48
Thank you. We'll let you know when it's back in stock.
Unable to save your request. Please try again.
Sorry, it's out of stock.
But we can let you know when it's back in.
Couldn't load pickup availability
Question about this product?
We're happy to help.
CA WARNING:
Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to
www.P65Warnings.ca.gov/motor-vehicle-parts.

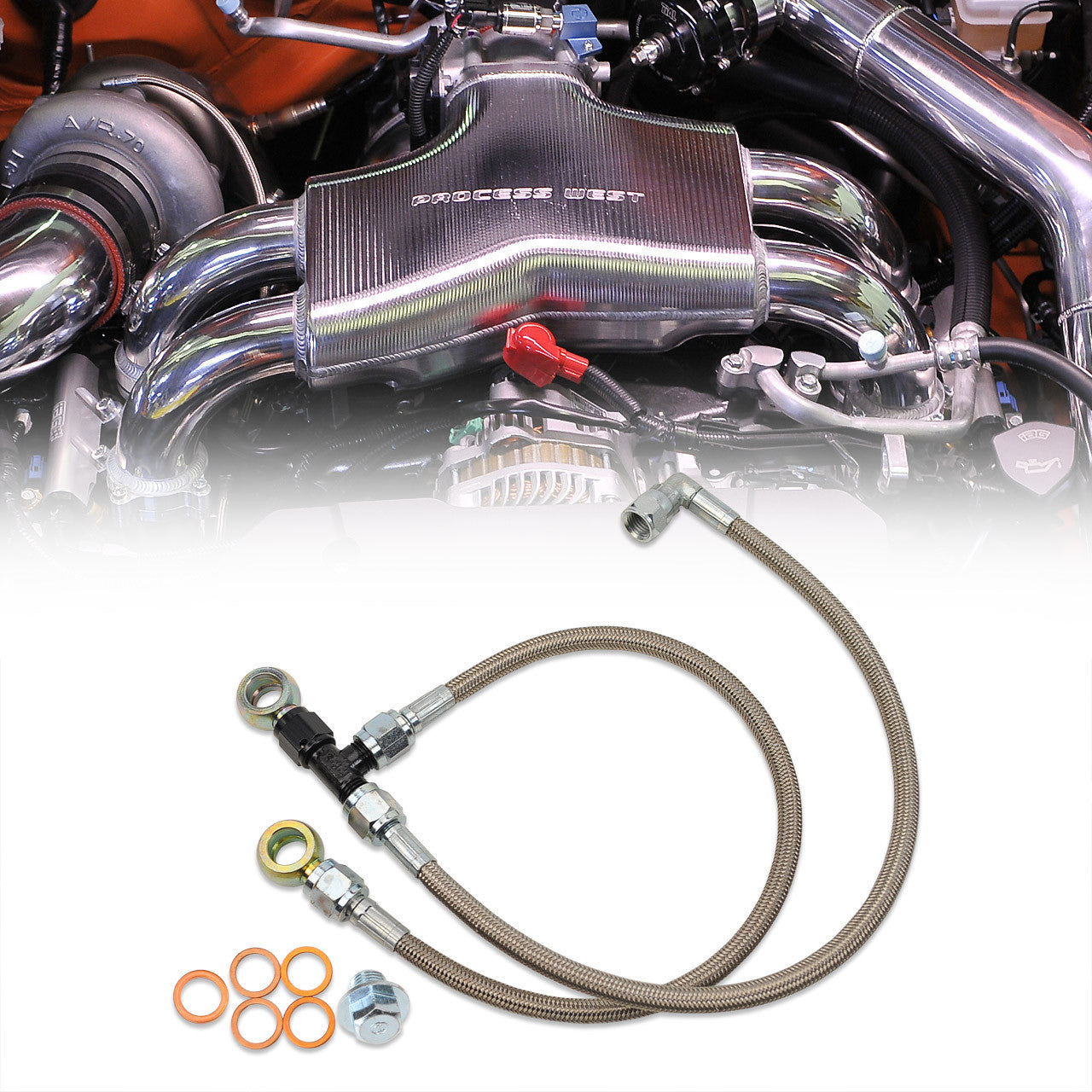

IAG GARRETT GT SERIES TURBO OIL FEED & AVCS LINE FOR 2006-14 SUBARU WRX, 04-21 STI, 05-09 LGT, 04-08 FXT
PROTECT YOUR ENGINE
The OEM Subaru turbo oil feed line is a commonly known weak point that is prone to damage when removing or installing a turbo. Subaru's rigid steel construction is susceptible to cracking, which can result in a potentially catastrophic loss of oil pressure in both your turbo and engine. Another issue is the microfilter that is located inside the factory banjo bolt that connects to the cylinder head. This filter has a tendency to become clogged with sludge, leading to oil supply problems for the turbo. IAG Performance has addressed these issues with the IAG Garrett GT Series Turbo Oil Feed & AVCS Line kit, which is designed to be used with Garrett GT series turbos and is compatible with 2006-2014 WRX, 2004-2021 STI, 2005-2009 LGT, 2004-2008 FXT Subaru models.
ADVANCED DESIGN

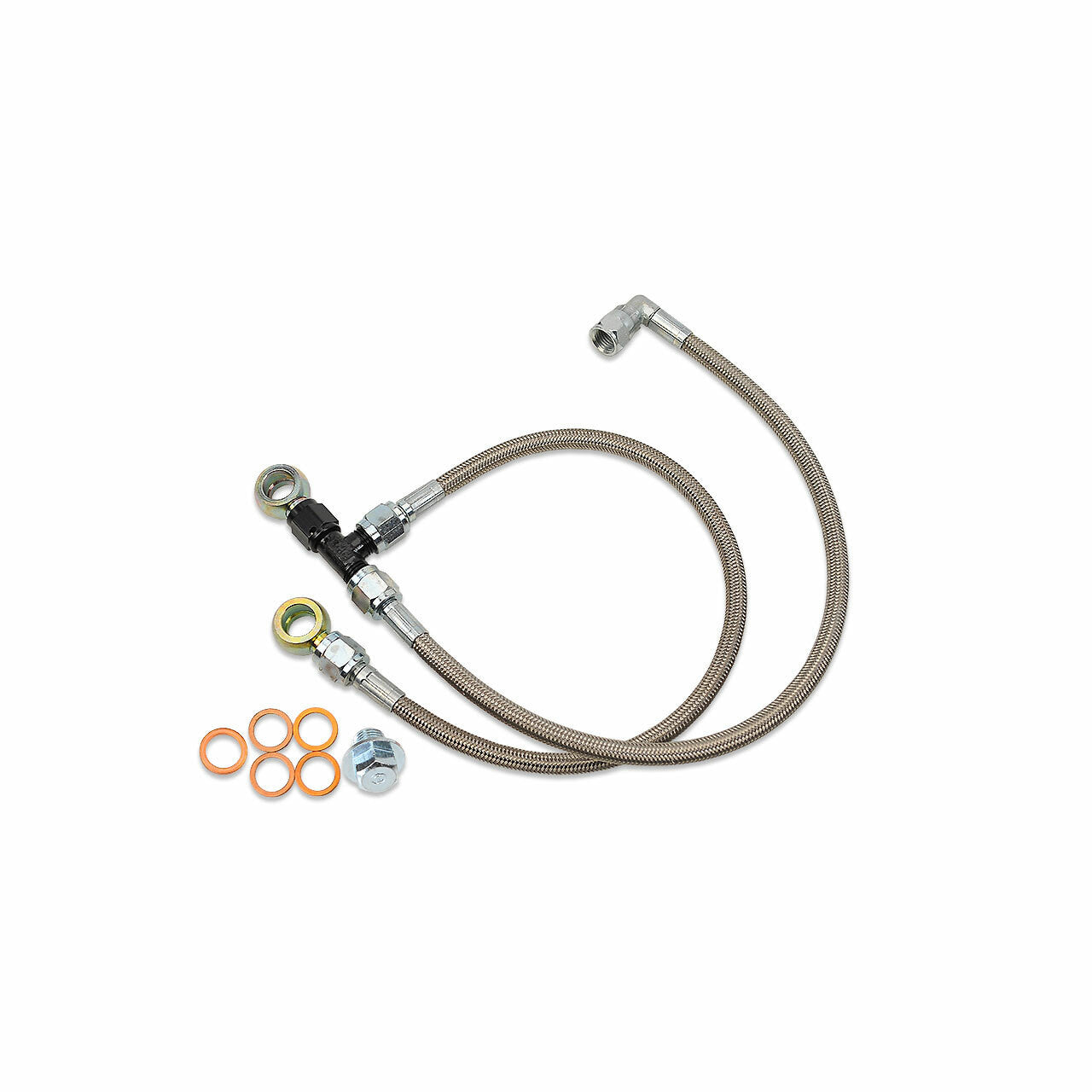

IAG Garrett GT Series Turbo Oil Feed & AVCS Line kit offers an advanced design that not only resolves factory oil feed line issues but also increases the oil flow to your Subaru’s engine and turbo. Our Oil Feed & AVCS Lines are constructed from braided stainless steel, allowing them to flex without the risk of cracking. The lines feature stainless -4AN fittings on the ends and are coated with a durable teflon inner lining that is capable of withstanding high-temperature environments. The included banjo fittings are constructed from high-quality steel, with a corrosion-resistant zinc coating. We also offer replacement OEM Banjo bolts to replace existing worn or clogged hardware.
EASY TO INSTALL

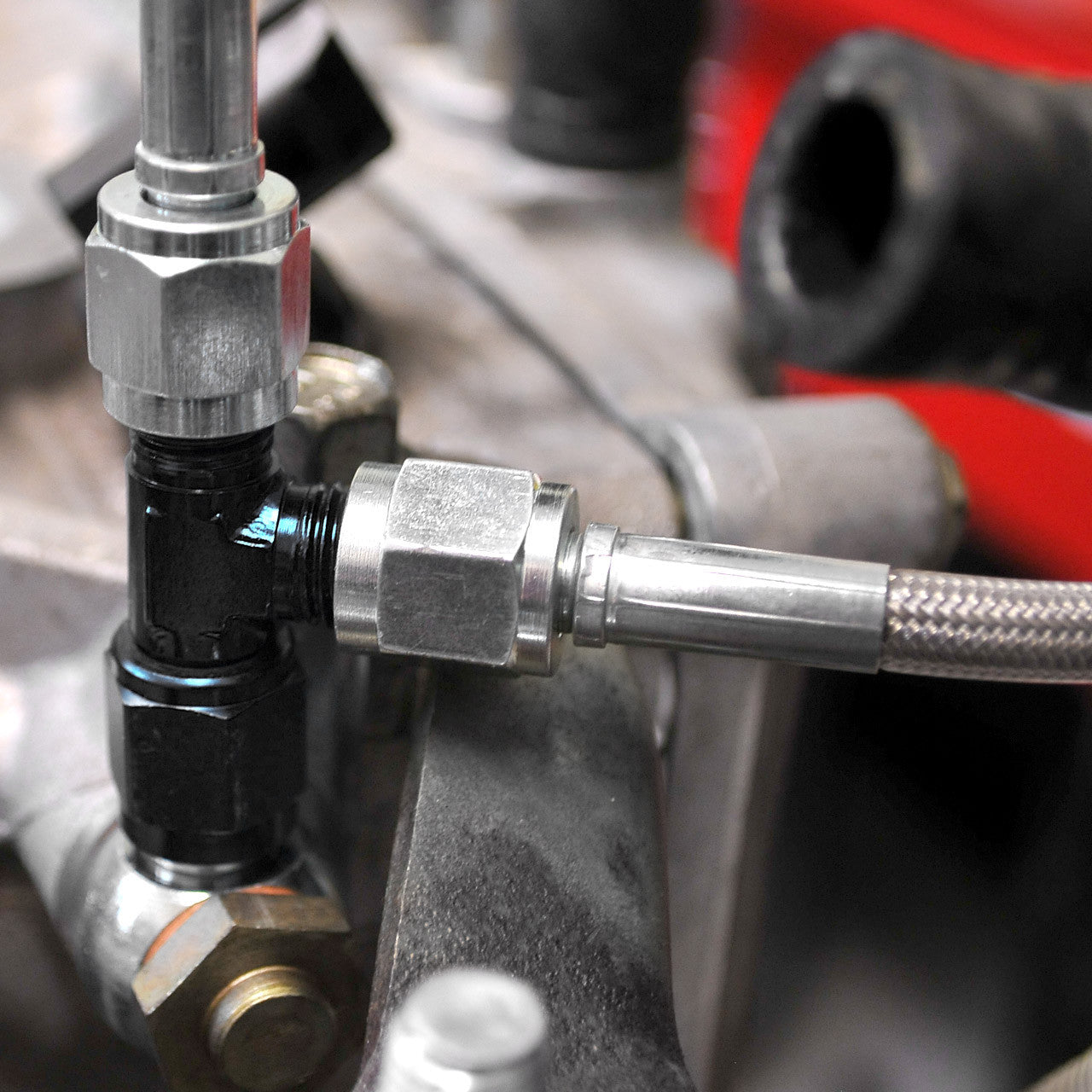

IAG Garrett GT Series Turbo Oil Feed & AVCS Line kit is easy to install, and there's no need to remove the intake manifold or crossover pipe. You'll have several mounting options to choose from for a seamless fit, and all the necessary installation hardware is included.
FITMENT NOTES
This kit is designed to be used on Garrett GT series turbos. It features a 90° -4AN female fitting that will screw directly to the oil restrictor on your turbo.
These fittings are not required for installation unless they are stripped, missing or clogged.

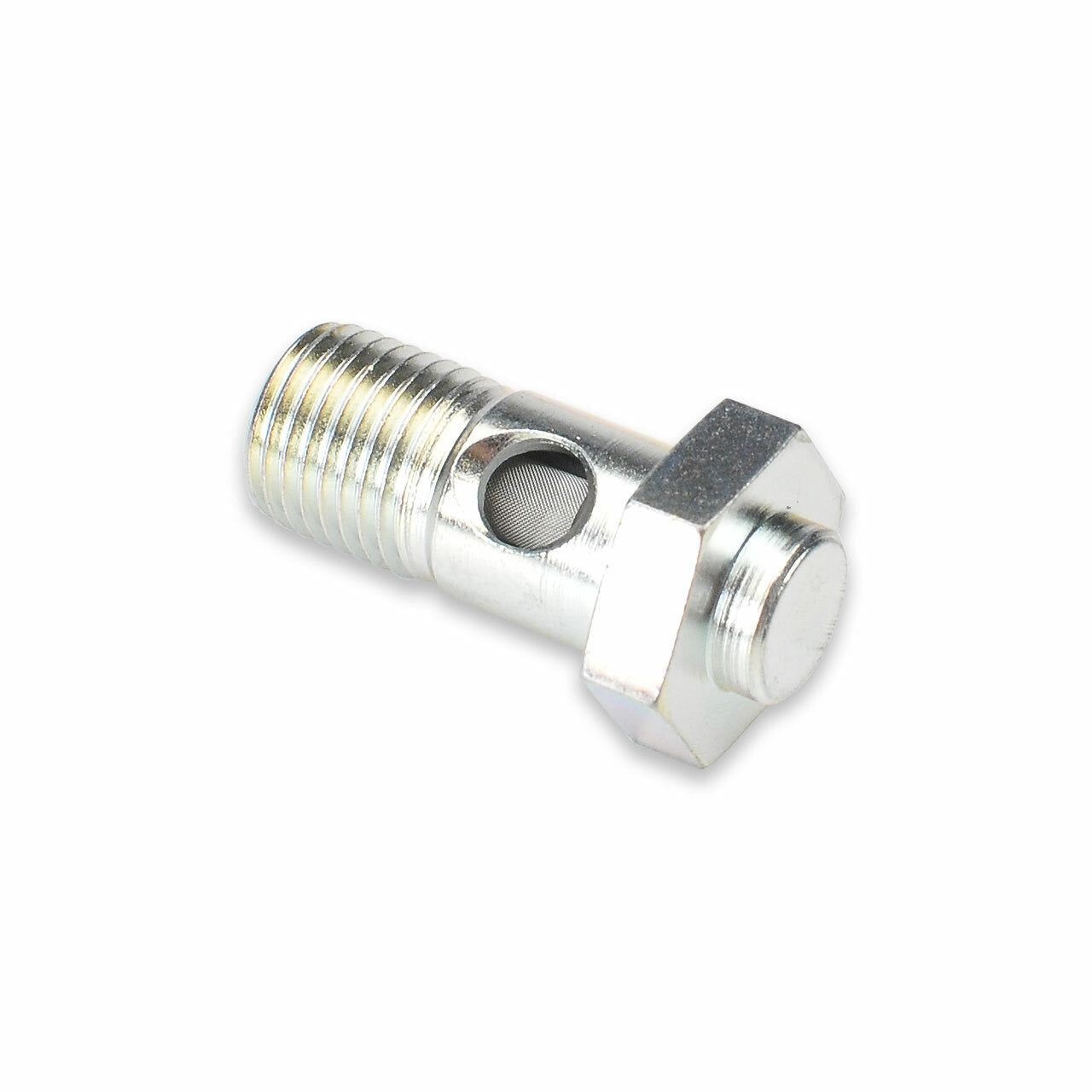

- Part# 14445AA090 AVCS Filter Fitting (Filters the oil before entering the AVCS controller and Cam Gear)

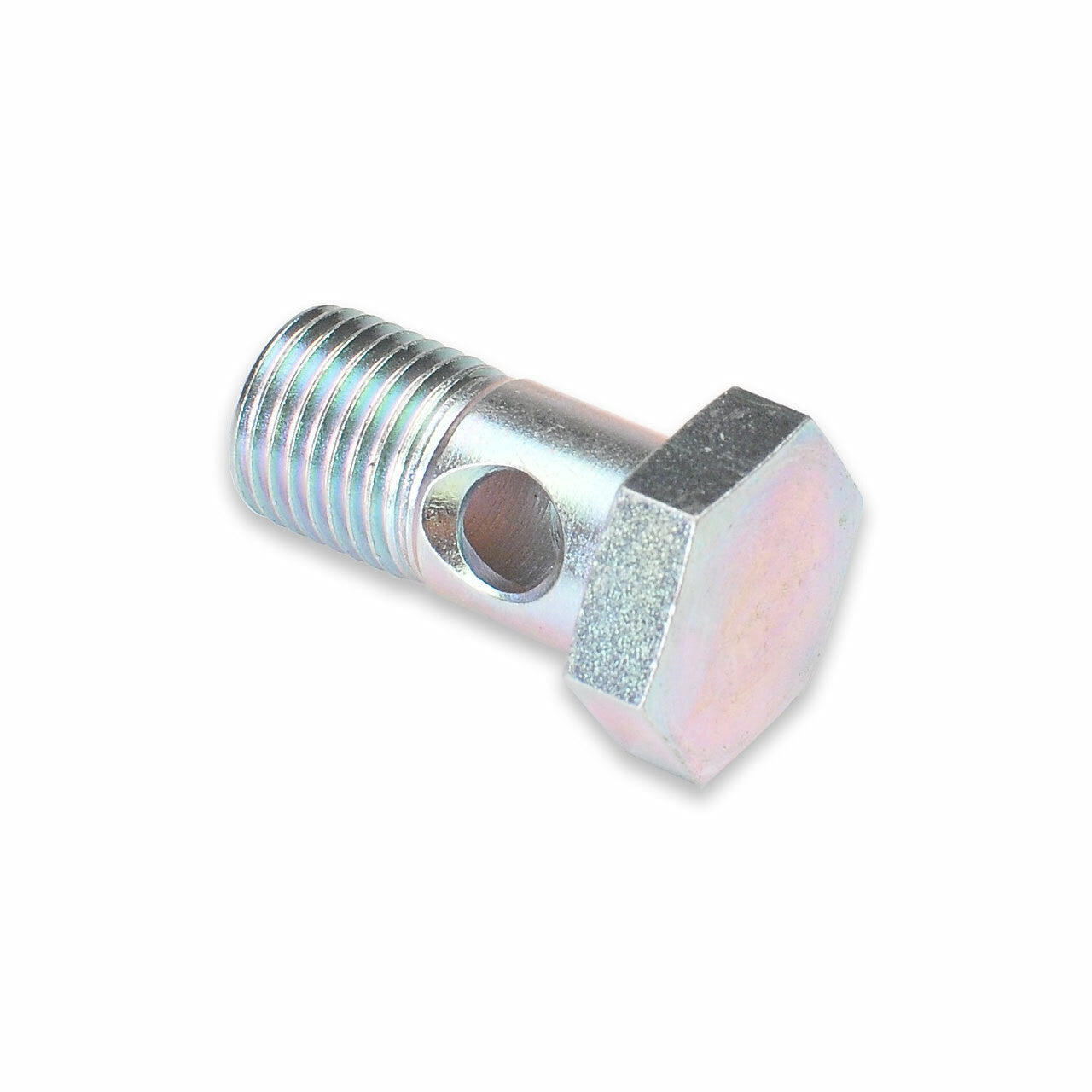

- Part# 15194AA270 Cylinder Head Oil Fitting
