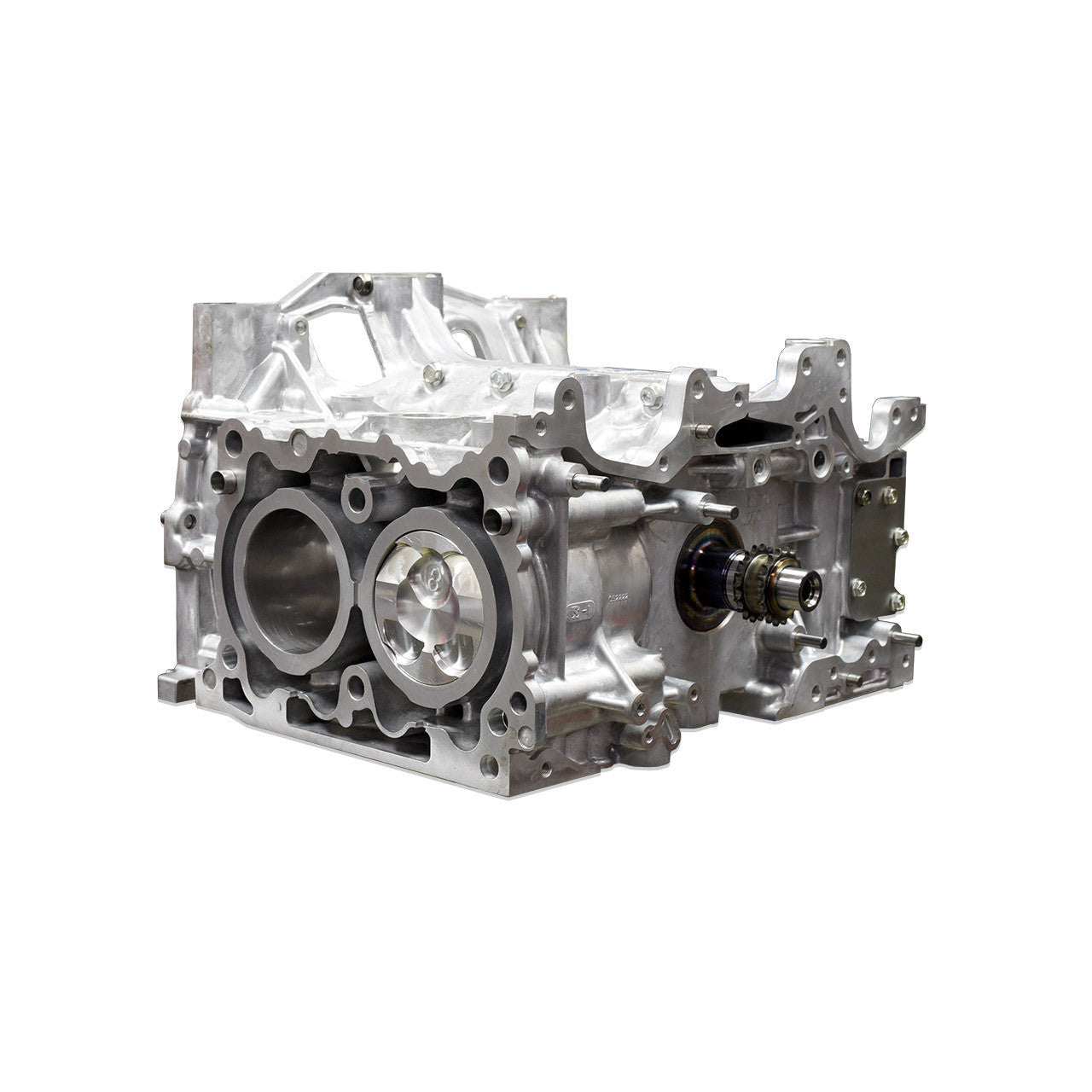

IAG 600 FA20 DIT Subaru Short Block for 2015-21 WRX - 600 BHP

The IAG 600 Short Block is designed for stock or modified FA20 DIT Subaru WRXs that need a stronger bottom end to support increased cylinder pressures created by additional boost pressure. The IAG 600 short block features IAG Spec H-Beam forged connecting rods. The upgraded connecting rods and race bearings are able to support additional engine load produced by larger turbochargers or increased boost which the OEM rods and pistons found in the stock short blocks cannot support reliably.

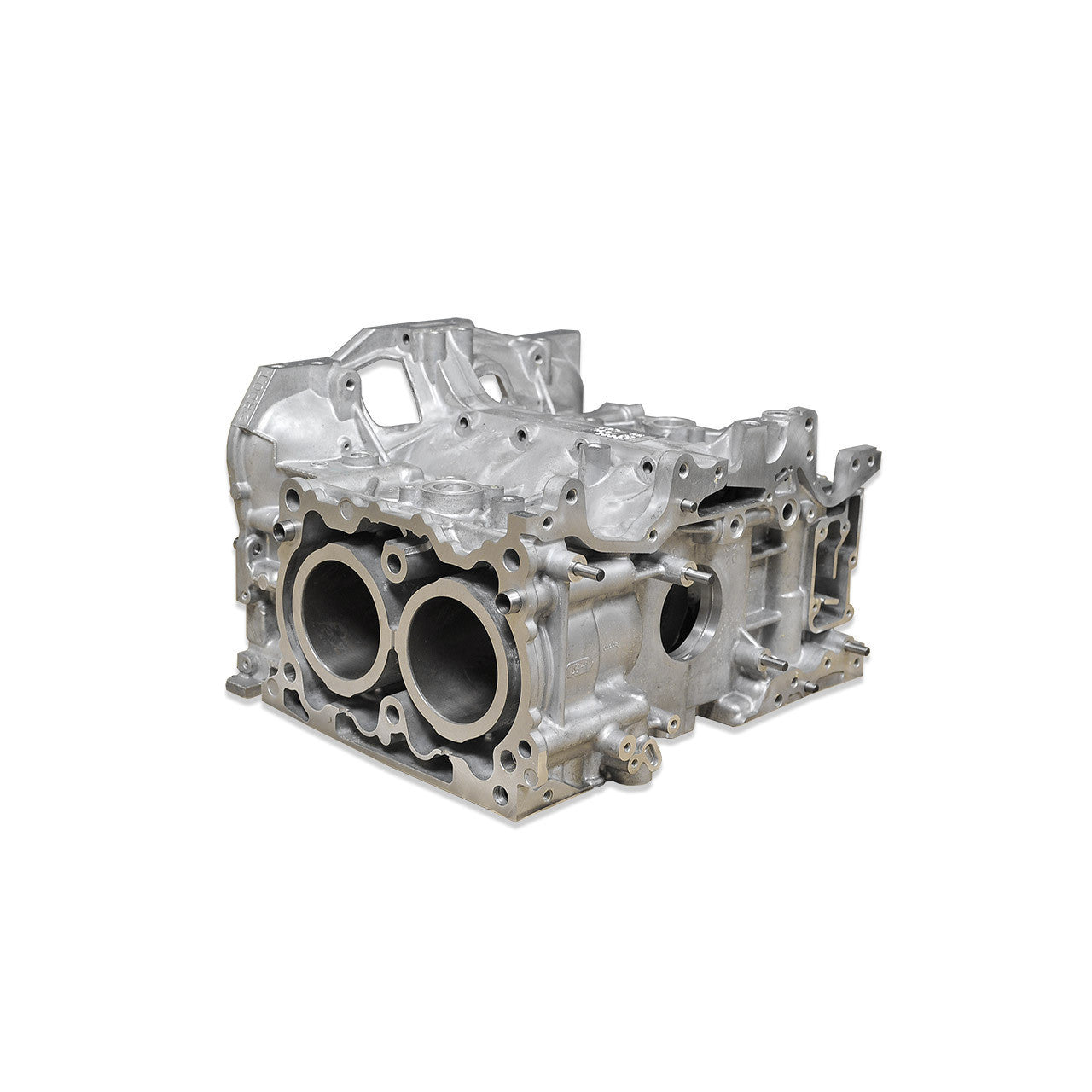

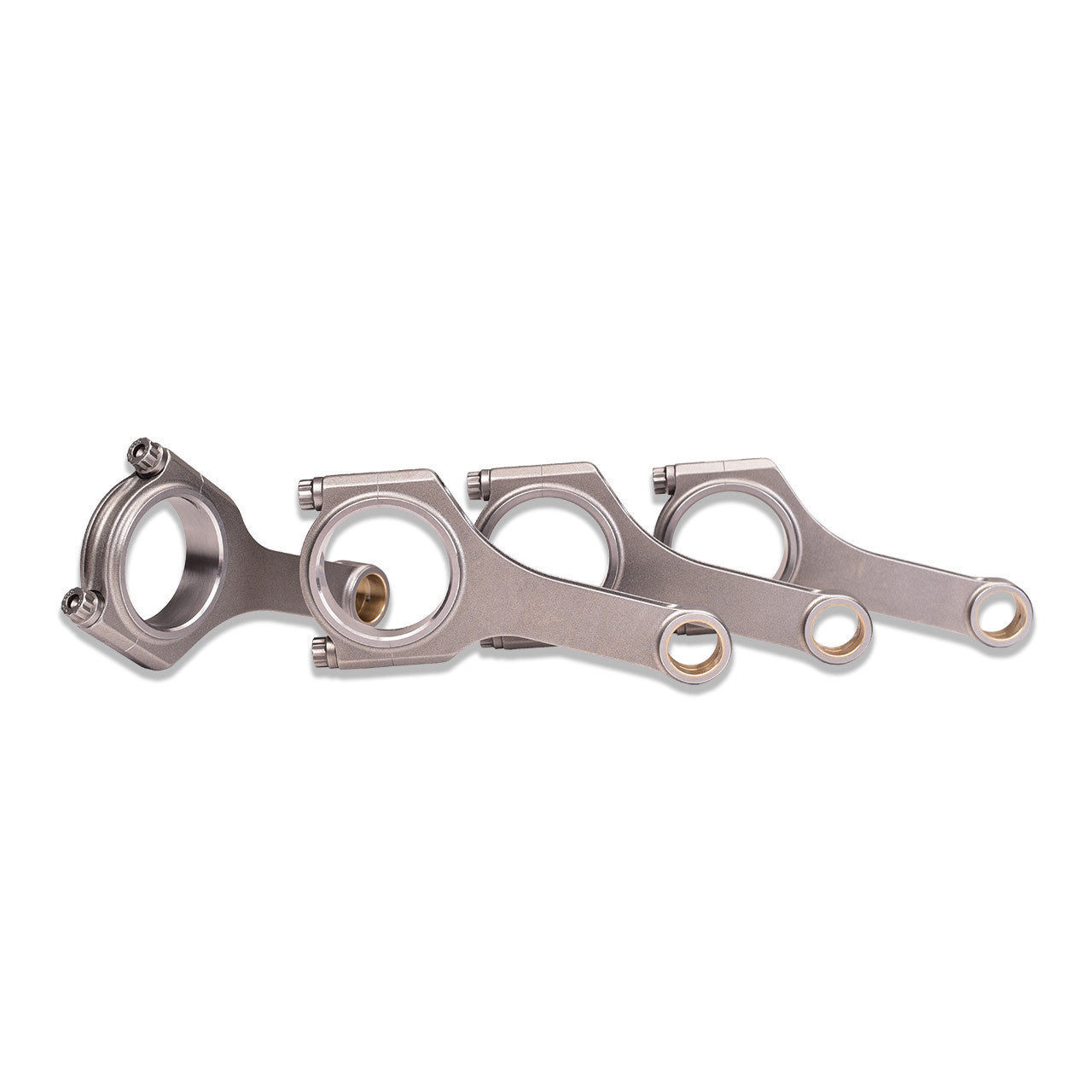

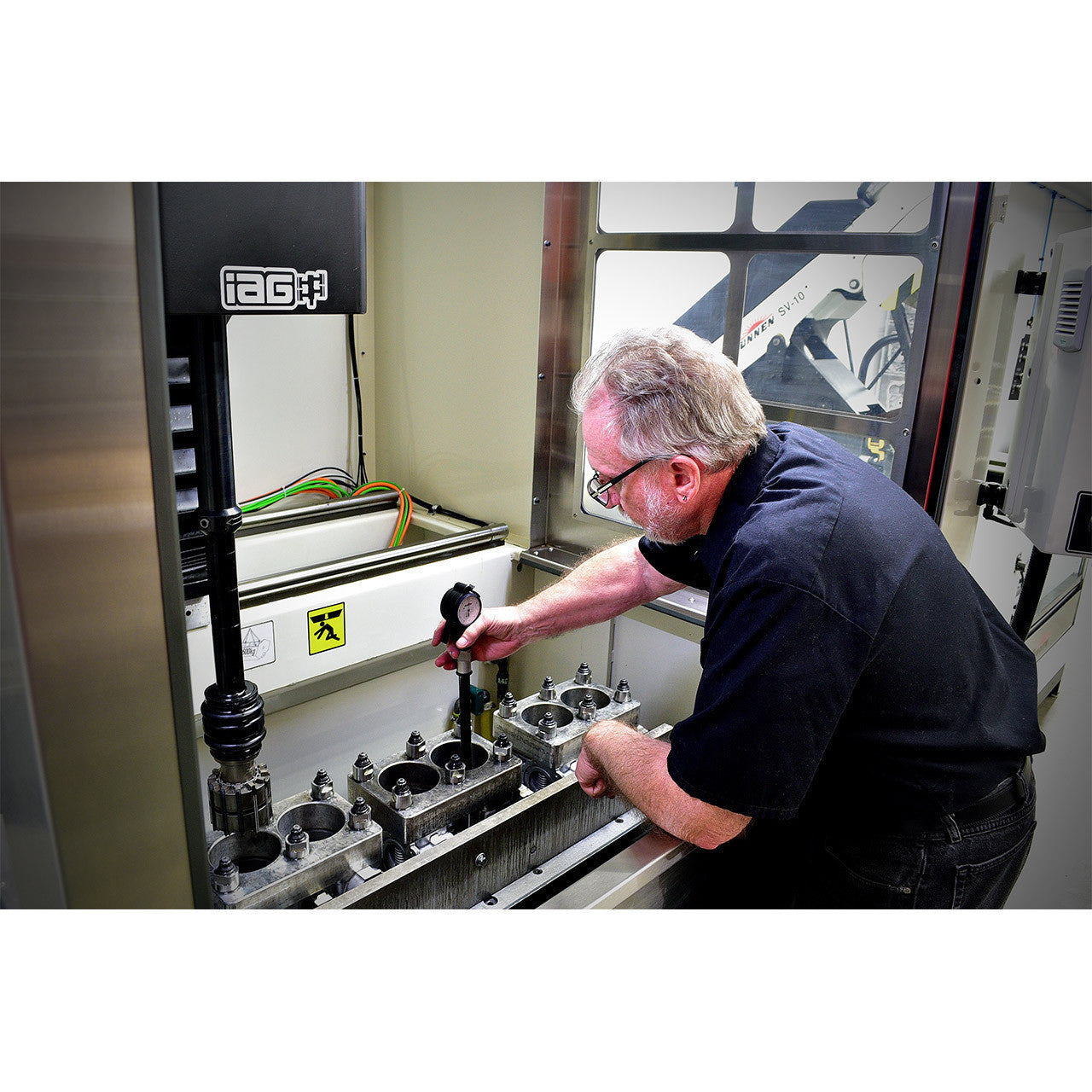

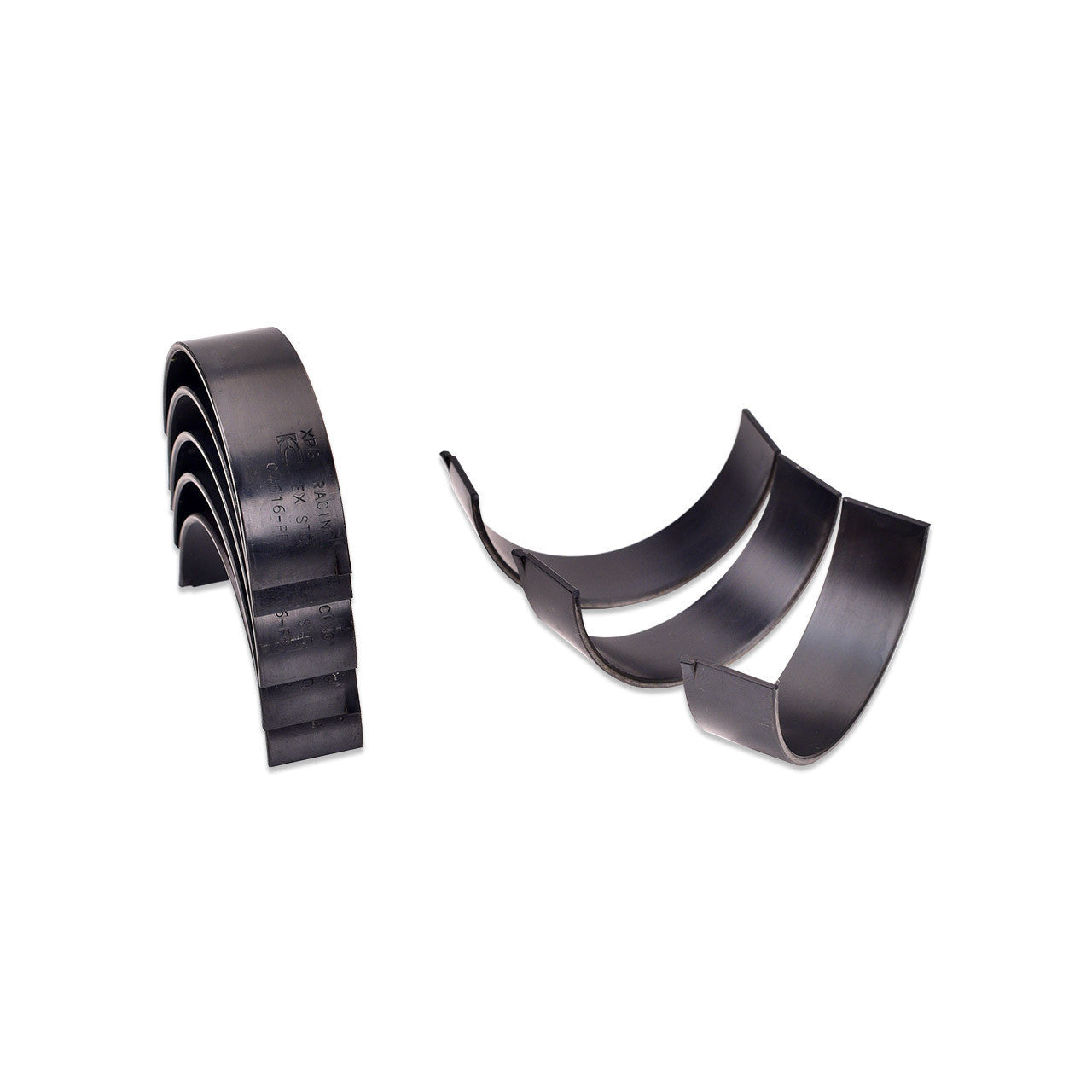

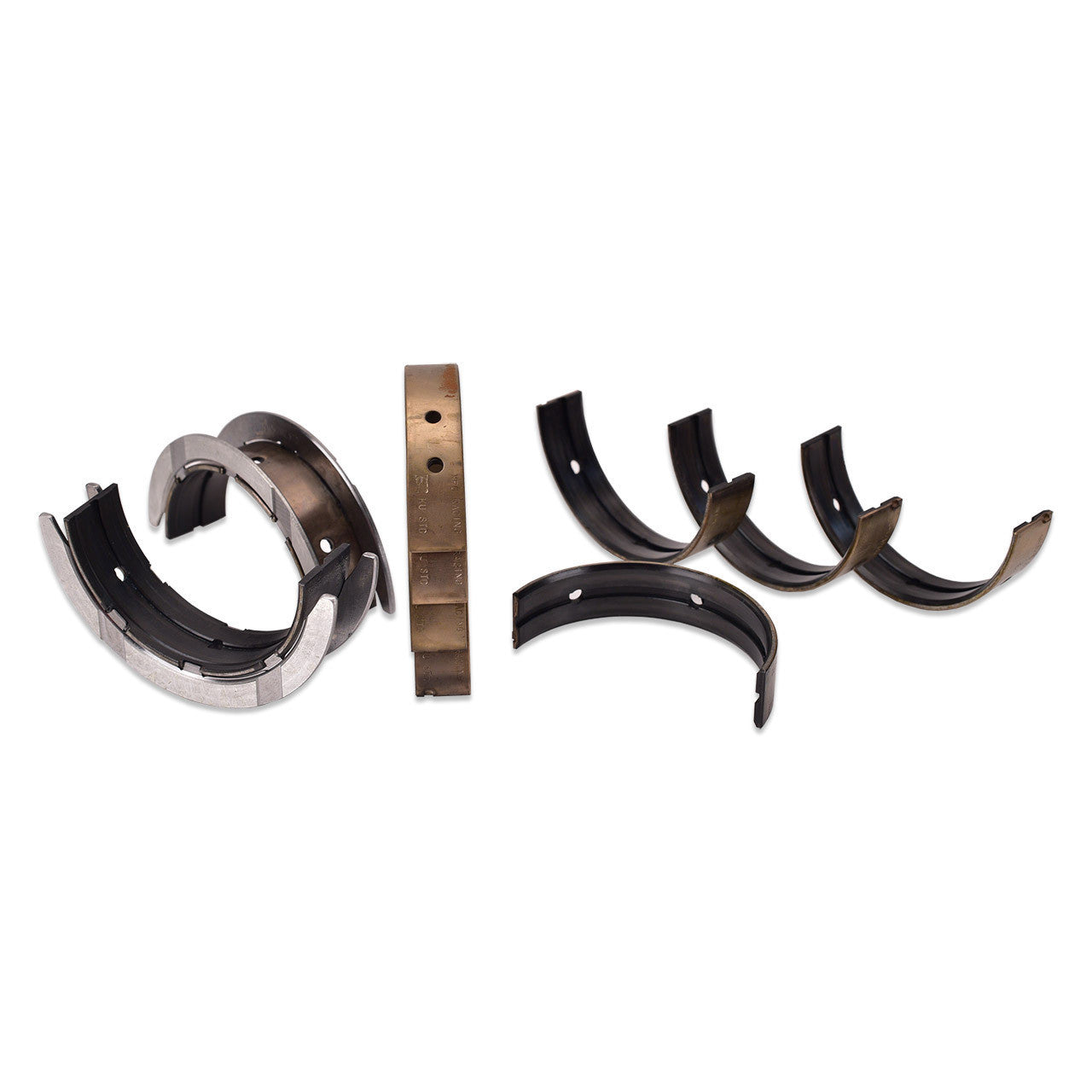

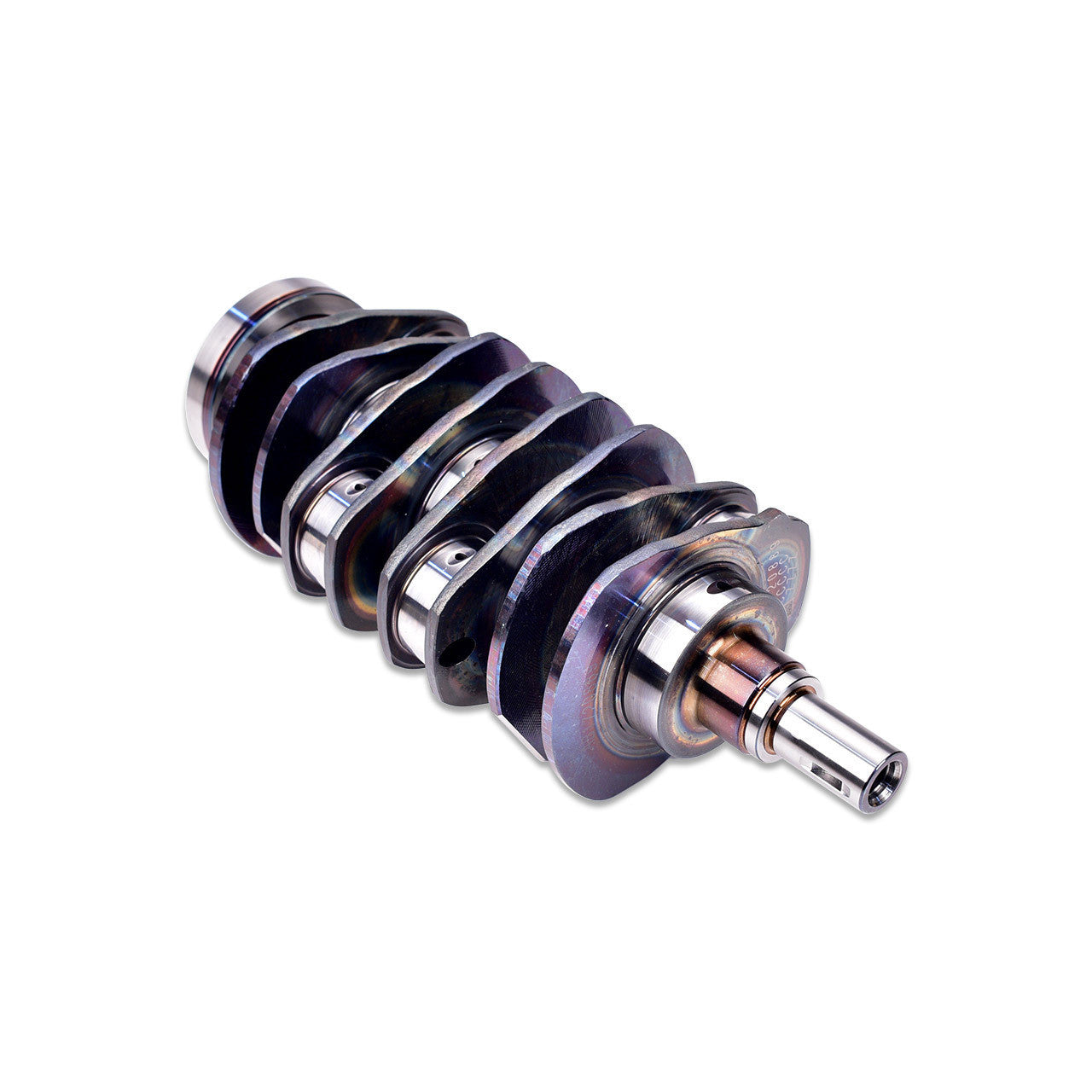

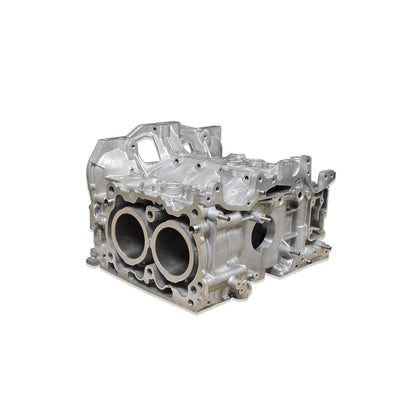

Each IAG 600 Short Block starts with brand new FA20 DIT Subaru 2.0L, 86mm stock bore engine case halves as standard. The case haves are carefully bored and honed to 86.25mm then measured and assembled using a new 2015+ Subaru 2.0L FA20 crankshaft, which is matched to ACL or King race main bearings. The IAG 600 Short Block features IAG Spec H-Beam Connecting Rods with ARP2000 rod bolts, along with ACL or King race rod bearings. The case halves are sealed with new OEM main case bolts and sealant. Finally, IAG Spec JE FSR 86.25mm Forged Pistons are carefully selected, measured, and installed to finish off the short block.

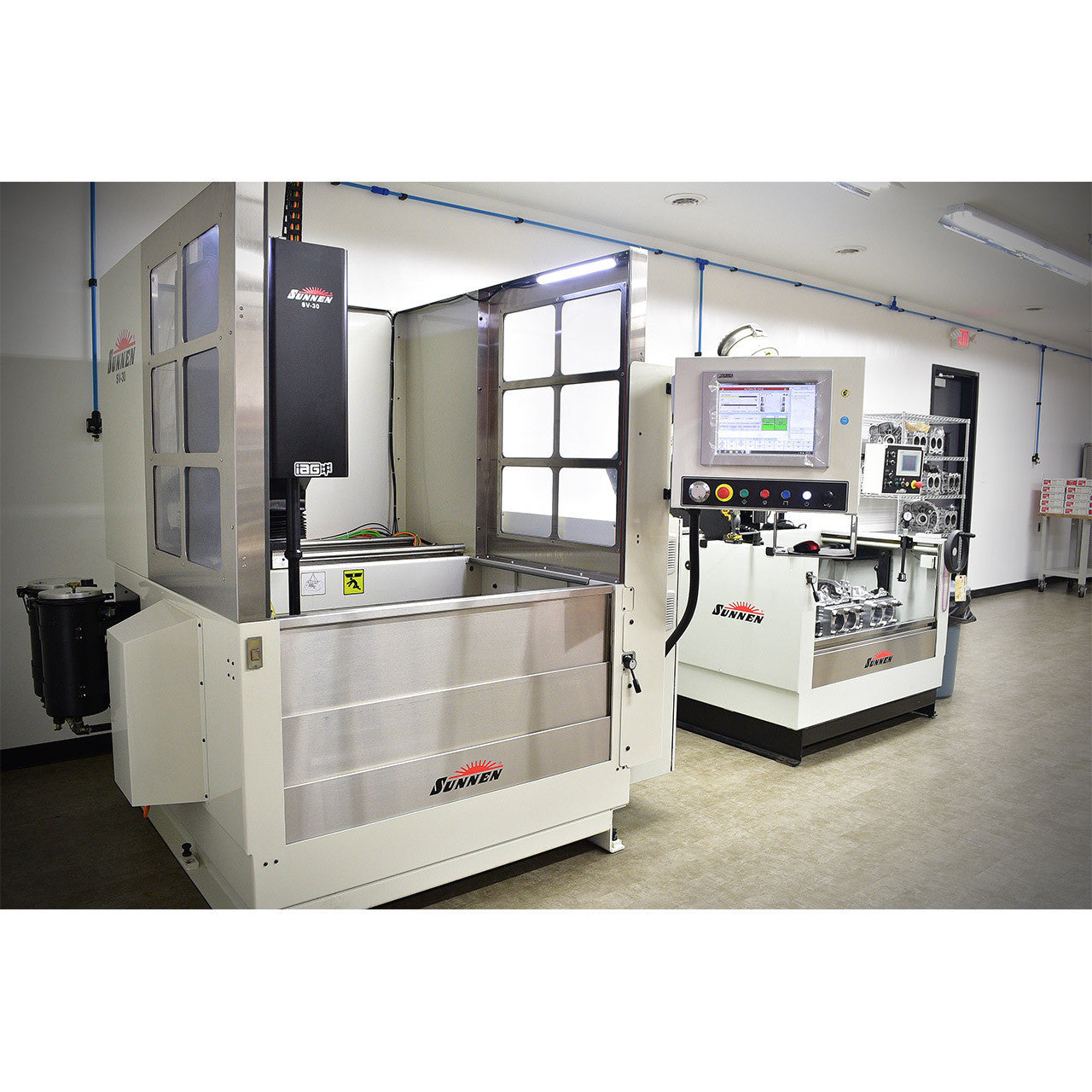

Adequate oil flow is critical to performance and reliability. It's no secret that the OEM cases from Subaru leave something to be desired in the oiling department. Our machinists carefully inspect and modify the internal oil passages of each new OEM case used in the IAG 600 Short Block to ensure proper flow and reliability.

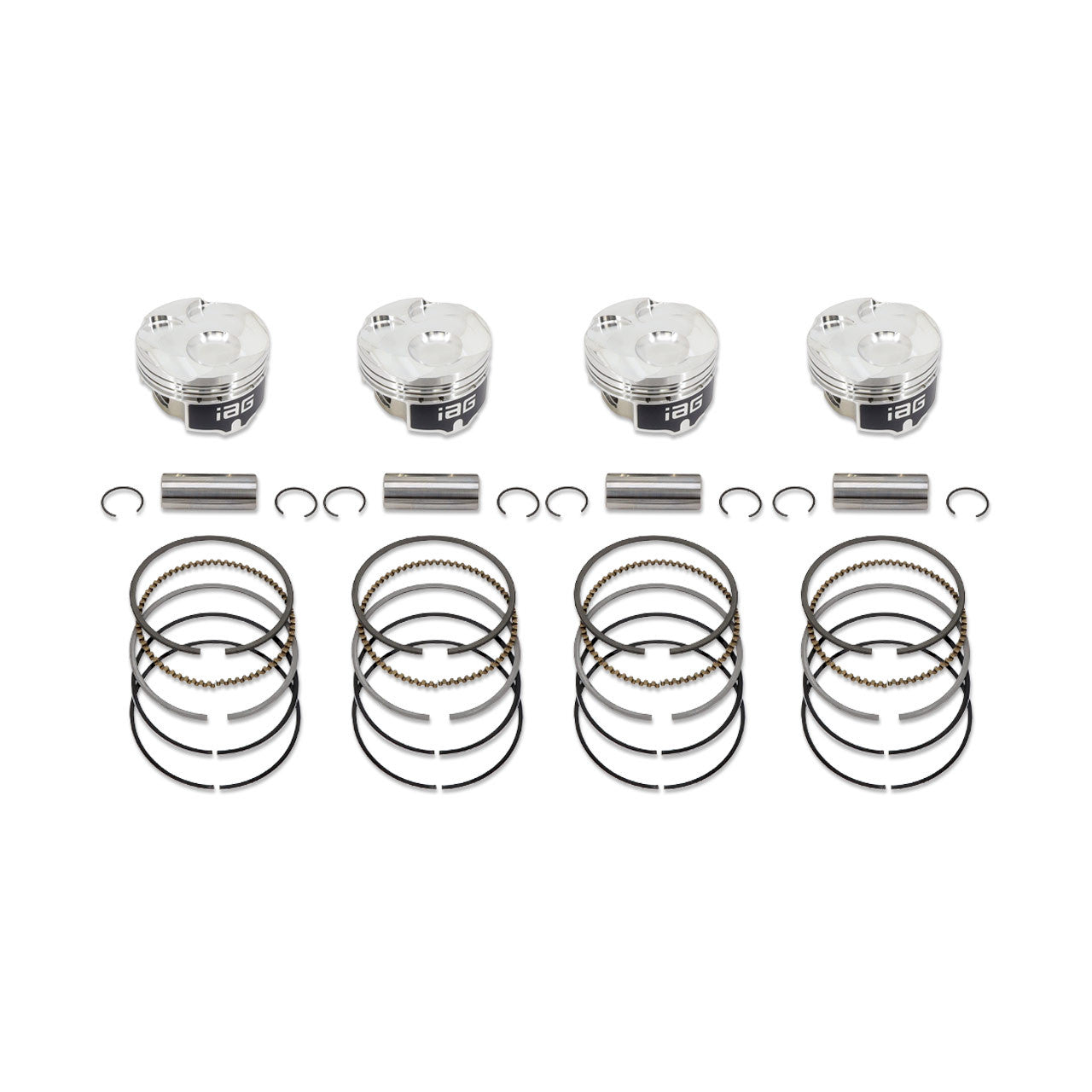

Each IAG 600 Short Block features IAG Spec JE FSR 86.25mm Forged Pistons. These 2618 T6 Alloy high-strength pistons have been specifically designed to support increased cylinder pressures which come with more boost. FSR forgings reduce mass and wear caused by friction without sacrificing strength. This is accomplished by using an asymmetrical skirt design instead of the traditional full-round skirt, also this reduces weight significantly. Featuring smooth flowing radii on the domes and dishes, the design promotes excellent flame travel. The pistons are secured to the rods with .866" x 2.250" x .150" wall carbon steel wrist pins with Tru Arc locks.

We made this video to highlight the differences between each of our short blocks and to help you choose the best one for your performance goals and budget. Our Build Advisors and Customer Support staff can also assist you with any questions or concerns. Just click the button below for assistance.

We stand behind every hand-built engine we produce. IAG's Standard Short Block Workmanship Warranty covers your short block for 12 months or 12,000 miles. We have also teamed up with a selection of IAG Certified Installation Facilities which offer up to a 24 month/24,000 mile workmanship warranty when the engine is purchased, installed, and tuned by that IAG Certified Installer.

Power:The IAG 600 Short Block has a power output rating of 600 BHP

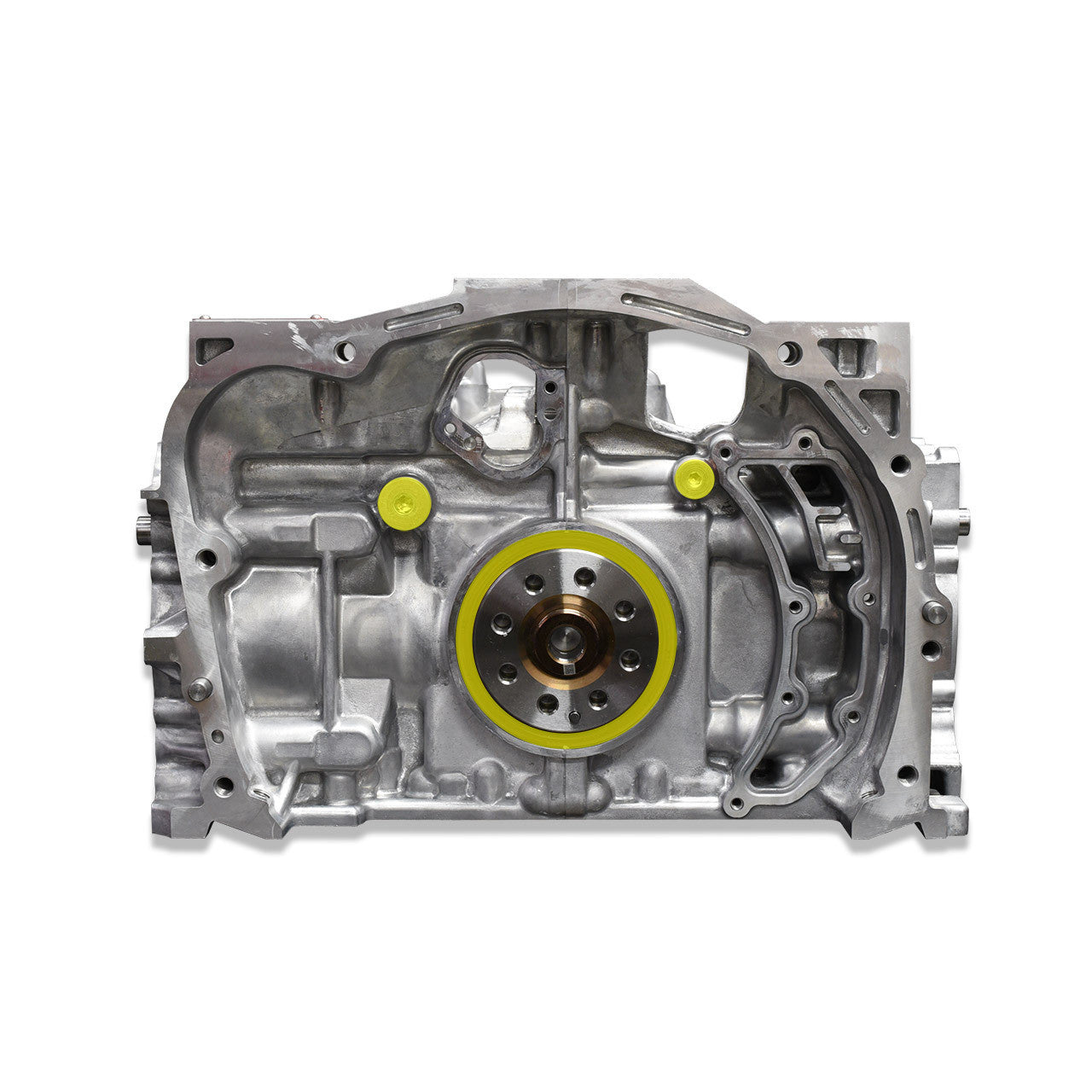

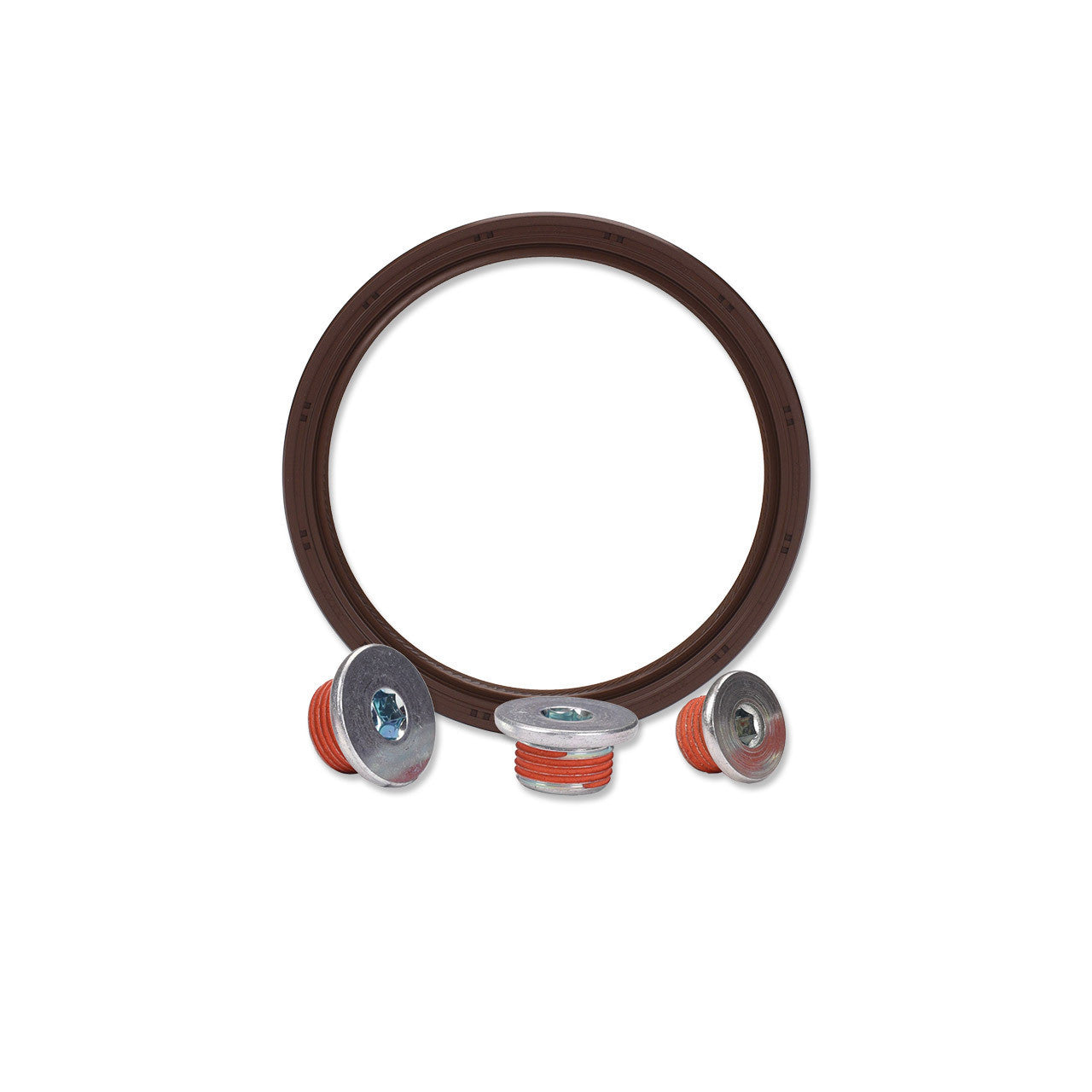

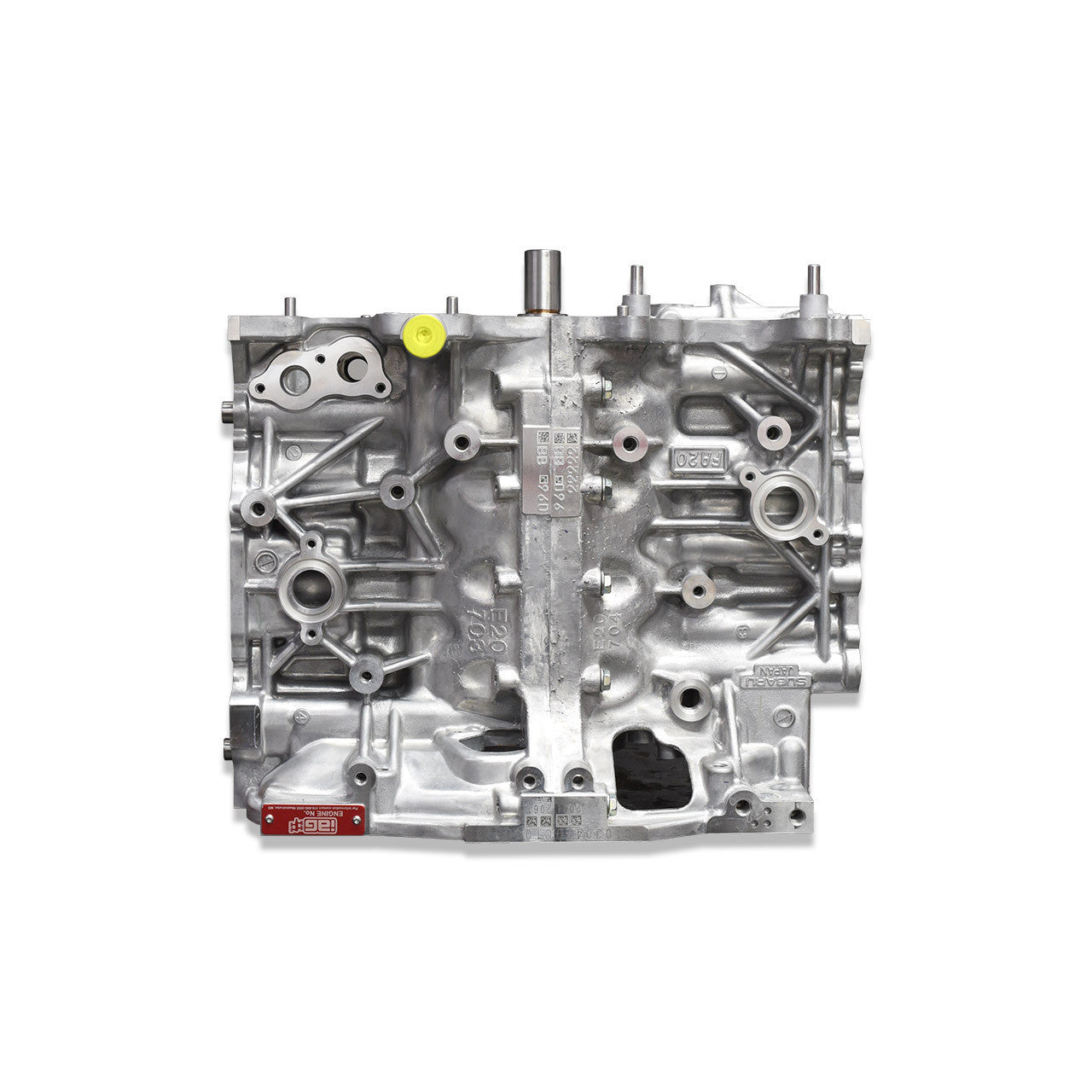

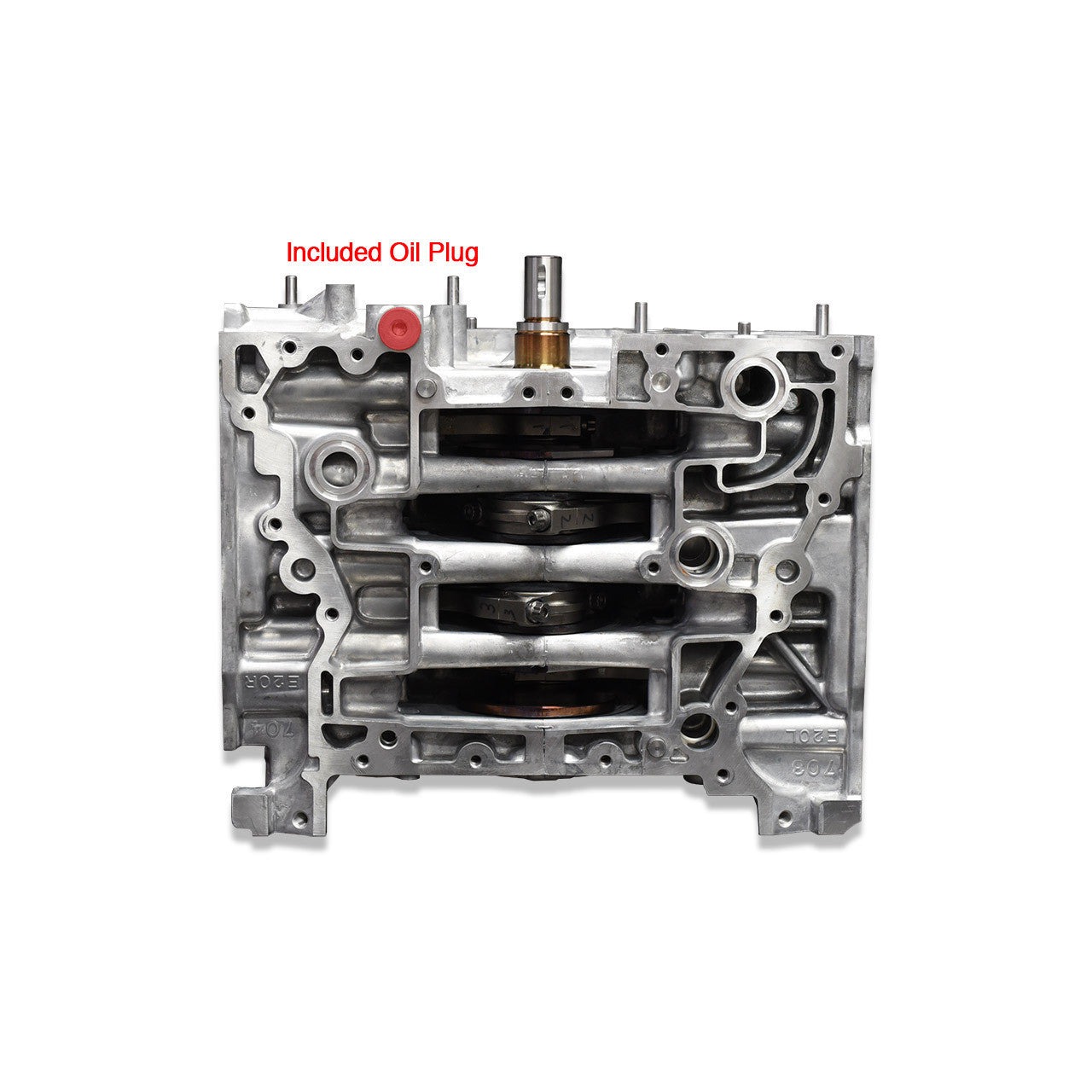

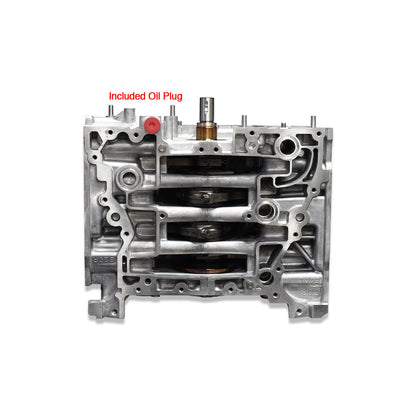

Not planning on reusing your original short block oil plugs? IAG offers a simple comprehensive cover and seal kit that includes (1) Rear main seal and (3) OEM Oil Plugs.* Never reuse a rear main seal on a new short block.* Please note all IAG FA20 DIT Short Blocks come with the oil pan side plug preinstalled. This kit does not include that plug.
