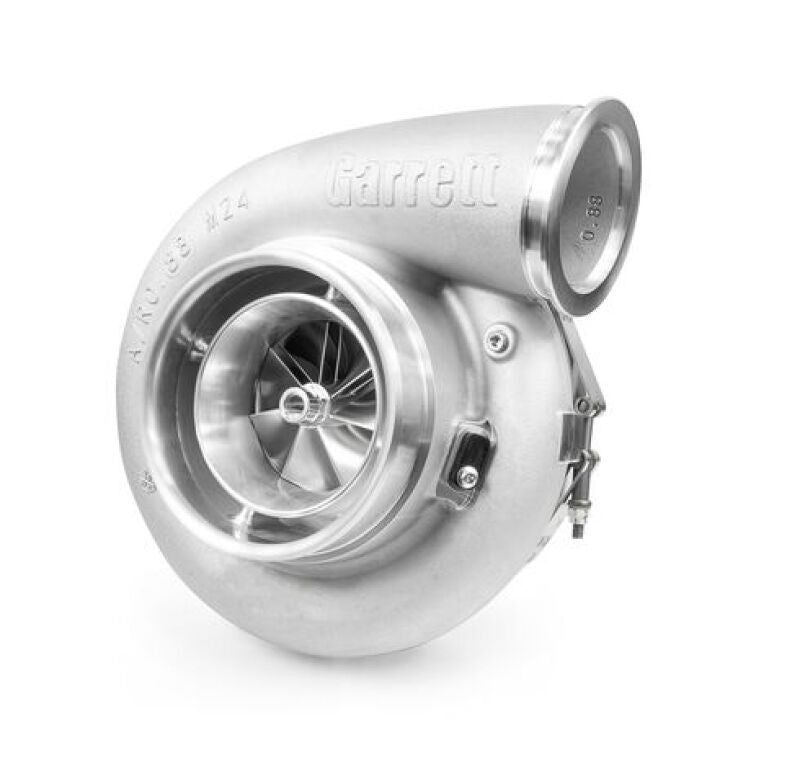

Garrett GXR55 1.40 A/R V-Band In/Out 103TW Turbine Housing Kit - 761208-0087

GARRETT GXR55 FREE FLOAT TURBINE HOUSING

Features

• XBoost Technology increases power and performance
• +21% compressor flow (GXR55-88 compared to G55-1950)
• Enhanced pressure ratio capability and higher boost pressure
• Increased efficiency at high flow rates
• Lower intake temperature
• Lightweight aluminum backplate
• Fully machined flange-style speed sensor port for easy sensor installation and monitoring turbo speed
• For use in drag race classes LDR (Limited Drag Radial), X275, and classes with 88mm compressor inducer rule.

G-XRace Compressor Stage
G-XRace compressor stage delivers enhanced pressure ratio capability and higher boost pressure with XBoost technology. You will notice increased efficiency at high flow rates and lower intake temperatures.

G-XRace Turbine Housing Kits
G-XRace GXR55 turbine housing kits are available in two A/R. 1.24 A/R | 1.40 A/R stainless steel housings with V-Band turbine inlet flanges. G-XRace utilizes the same V-Band turbine housings as G-Series to enable an easy upgrade.

WARNING: Maximum allowable turbocharger speed is 84krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately.

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
