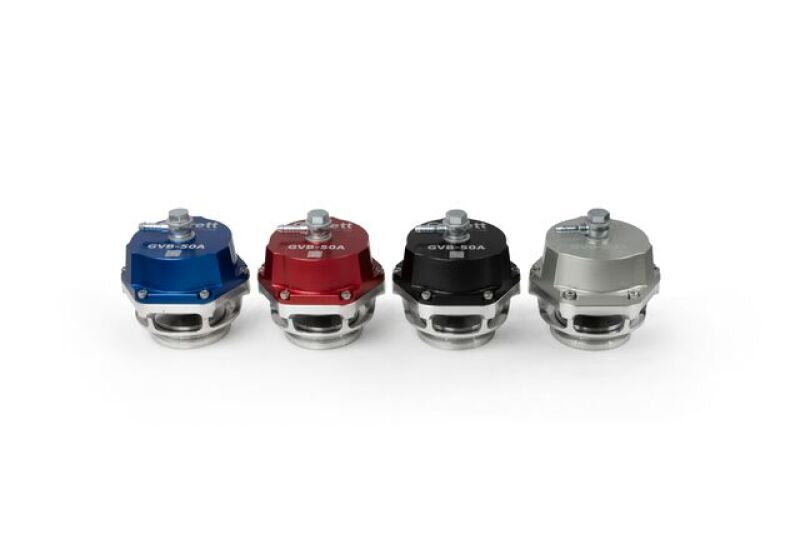

Garrett GVB-50R 50mm RCV BOV - Black - 914959-0003

Garrett GVB Blow-Off Valves:

Features:

• Recirculating and Vent to atmosphere housing options
• CFD tested for maximum flow and thermal efficiency
• Replaceable components to increase service life
• Robust design for easy diaphragm replacement
• 6061 Anodized aluminum actuator cover and fully-machined billet housing
• Maximum flow 350 CFM | .21kg/s for GVB-50R (Recirculating)
• Springs | Fittings | Flanges | V-Bands included
• Configurable springs settings include rates from 0.2 Bar | 3 PSI – 0.9 Bar | 13 PSI
• Wrought Aluminum Alloy Weld Flange
• 17/7 PH Stainless Steel Springs (2 installed, 3 additional)
• Plated stem and bushing for lowered friction and wear resistance
• High temp nomex reinforced diaphragm
• Stainless steel fittings and fasteners

Material Data

• Valve Housing: Fully-machined billet
• Diaphragm: High temp Nomex reinforced elastomer
• Actuator Cover: Fully-machined anodized 6061 aluminum
• Valve Bushing: Hard-anodized wrought aluminum alloy
• Valve: high temp stainless steel with plated stem
• V-Band: CNC machined 304 stainless steel
• Flanges: Fully-machined 304 stainless steel
• Springs: 17/7 PH stainless steel

Kit Contents
GVB-50 Blow-Off Valves include all the following parts:

• Springs (Installed: blue, white, Spare: red, green, brown)
• V-Band Assembly: (V-Band, bolt, nut)
• Inlet Flange and O-Ring
• Air Fitting Hardware (nuts, bolts, washers, banjo fitting)
