Garrett GVB-50A 50mm VTA BOV - Silver - 914956-0004
ds_BDZW_914956-0004
Out of stock
Sorry, it's out of stock.
But we can let you know when it's back in.
Regular price
$471.39
Sale price
$471.39
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Question about this product?
We're happy to help.
CA WARNING:
Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to
www.P65Warnings.ca.gov/motor-vehicle-parts.
Sold out

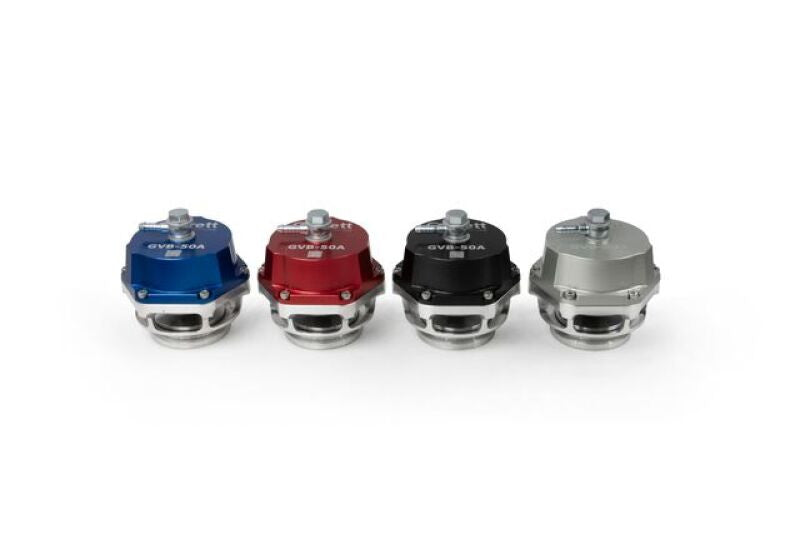

Garrett GVB Blow-Off Valves:
Features:
- Recirculating and Vent to atmosphere housing options
- CFD tested for maximum flow and thermal efficiency
- Replaceable components to increase service life
- Robust design for easy diaphragm replacement
- 6061 Anodized aluminum actuator cover and fully-machined billet housing
- Maximum flow 350 CFM | .21kg/s for GVB-50R (Recirculating)
- Springs | Fittings | Flanges | V-Bands included
- Configurable springs settings include rates from 0.2 Bar | 3 PSI – 0.9 Bar | 13 PSI
- Wrought Aluminum Alloy Weld Flange
- 17/7 PH Stainless Steel Springs (2 installed, 3 additional)
- Plated stem and bushing for lowered friction and wear resistance
- High temp nomex reinforced diaphragm
- Stainless steel fittings and fasteners
Material Data
- Valve Housing: Fully-machined billet
- Diaphragm: High temp Nomex reinforced elastomer
- Actuator Cover: Fully-machined anodized 6061 aluminum
- Valve Bushing: Hard-anodized wrought aluminum alloy
- Valve: high temp stainless steel with plated stem
- V-Band: CNC machined 304 stainless steel
- Flanges: Fully-machined 304 stainless steel
- Springs: 17/7 PH stainless steel
Kit Contents
GVB-50 Blow-Off Valves include all the following parts:
- Springs (Installed: blue, white, Spare: red, green, brown)
- V-Band Assembly: (V-Band, bolt, nut)
- Inlet Flange and O-Ring
- Air Fitting Hardware (nuts, bolts, washers, banjo fitting)
