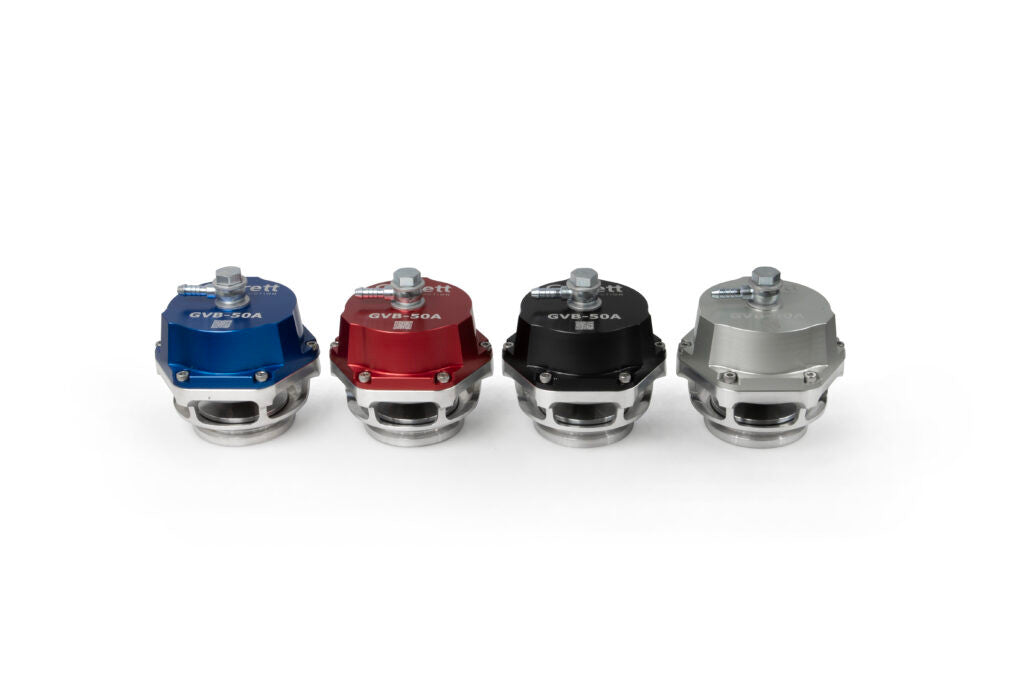

• Garrett GVB-50A 50mm VTA BOV - Blue

Garrett GVB-50A 50mm VTA BOV - Blue - 914956-0002

ds_BDZW_914956-0002

Out of stock
Usually Ships In: Contact Us For Updated ETA
Sorry, it's out of stock.

But we can let you know when it's back in.

$471.39
$471.39
Shipping calculated at checkout.

Question about this product?

We're happy to help.

CA WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to www.P65Warnings.ca.gov/motor-vehicle-parts.
Sold out

Garrett GVB Blow-Off Valves:

Features:

  • Recirculating and Vent to atmosphere housing options
  • CFD tested for maximum flow and thermal efficiency
  • Replaceable components to increase service life
  • Robust design for easy diaphragm replacement
  • 6061 Anodized aluminum actuator cover and fully-machined billet housing
  • Maximum flow 350 CFM | .21kg/s for GVB-50R (Recirculating)
  • Springs | Fittings | Flanges | V-Bands included
  • Configurable springs settings include rates from 0.2 Bar | 3 PSI – 0.9 Bar | 13 PSI
  • Wrought Aluminum Alloy Weld Flange
  • 17/7 PH Stainless Steel Springs (2 installed, 3 additional)
  • Plated stem and bushing for lowered friction and wear resistance
  • High temp nomex reinforced diaphragm
  • Stainless steel fittings and fasteners

Material Data

  • Valve Housing: Fully-machined billet
  • Diaphragm: High temp Nomex reinforced elastomer
  • Actuator Cover: Fully-machined anodized 6061 aluminum
  • Valve Bushing: Hard-anodized wrought aluminum alloy
  • Valve: high temp stainless steel with plated stem
  • V-Band: CNC machined 304 stainless steel
  • Flanges: Fully-machined 304 stainless steel
  • Springs: 17/7 PH stainless steel

Kit Contents
GVB-50 Blow-Off Valves include all the following parts:

  • Springs (Installed: blue, white, Spare: red, green, brown)
  • V-Band Assembly: (V-Band, bolt, nut)
  • Inlet Flange and O-Ring
  • Air Fitting Hardware (nuts, bolts, washers, banjo fitting)
