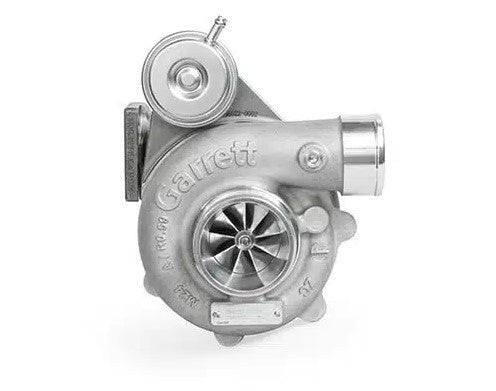

Garrett GBC17-250 Club Line Turbocharger 0.50 O/V T25 / 5-Bolt - Internal WG - 896052-5003S

Description
Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST | CLUB LINE. The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating. GBC17-250.

The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.

• 36mm compressor inducer | 49mm compressor exducer
• 17, 20 and 22 outline interchangeable
• 150 –250 horsepower capability
• Internal wastegate assembly with calibrated actuator
• Billet compressor wheel with extended tip design for higher pressure ratio capability
• GTX Gen II compressor aero with modern gasoline turbine wheel aero
• Journal bearing rotating group
• Engineered for small displacement engines including powersports, personal watercraft and automobiles
