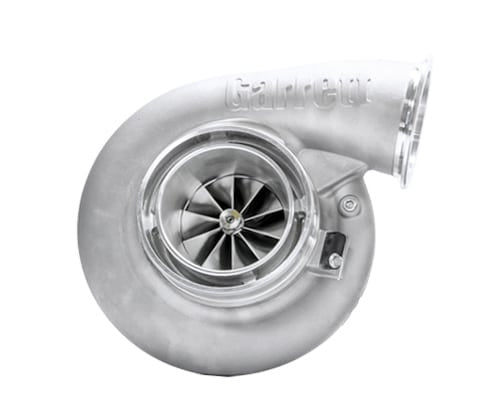

Garrett G45-1475 Super Core - Standard Rotation - 888169-5007S

GARRETT G45-1475

Features

• 79mm compressor inducer | 98mm compressor exducer
• Large 65 trim compressor wheel for maximum flow and optimal boost response
• Dual ceramic ball bearing with steel cages
• G-Series turbine aero increases flow 14% (compared to GTX45R)
• Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with supercore
• Stainless steel turbine housings available in T4 divided inlet

WARNING: Maximum allowable turbocharger speed is 114krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed.

ADDITIONAL G45 CONFIGURATIONS

Designed for high-horsepower engine applications, this turbocharger is a gamechanger. A Garrett-powered racer recently made history, becoming the first BMW M Sedan to break into the 7-second range with a 7.964-second pass at 176.71 MPH in the 1/4 mile. The team didn’t stop there, recently improving their performance with a 7.805-second pass at 181 MPH.

On the dyno, the Garrett G-Series G45-1475 turbocharger delivered an impressive 1500 AWHP and 1390 AWTQ with a 1.01 A/R turbine housing (see dynograph below). The BMW G8X, equipped with this turbocharger, features a highly modified setup, including a Pure Drivetrain Solutions drivetrain and an RK Autowerks 3.4L stroker engine kit, among other performance enhancements
