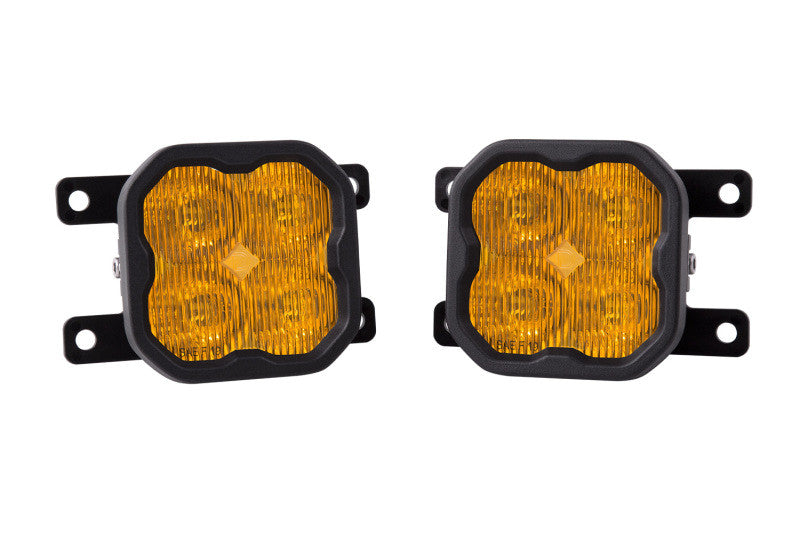

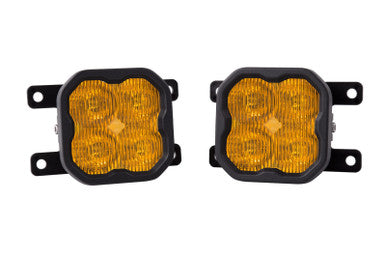

Diode Dynamics SS3 Max Type Fog Light Kit For 2019-22 Subaru Ascent - Yellow SAE Fog - DD6994

DESCRIPTION

Features:

• Advanced TIR optics provide high efficiency and focus
• SAE-compliant road-legal output
• Includes round bezel, for factory-style appearance
• Plug and play, no modification needed
• Durable powdercoated aluminum extrusion
• Engineered and Assembled in USA

OVERVIEW

Overview
Upgrade your fog lights with Diode Dynamics SS3 Type AS Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included standard bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Plug and Play
Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and theirs will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

Focused
Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

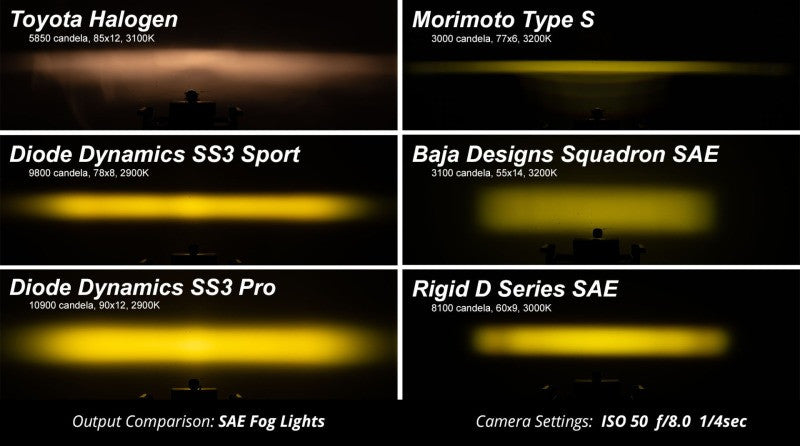

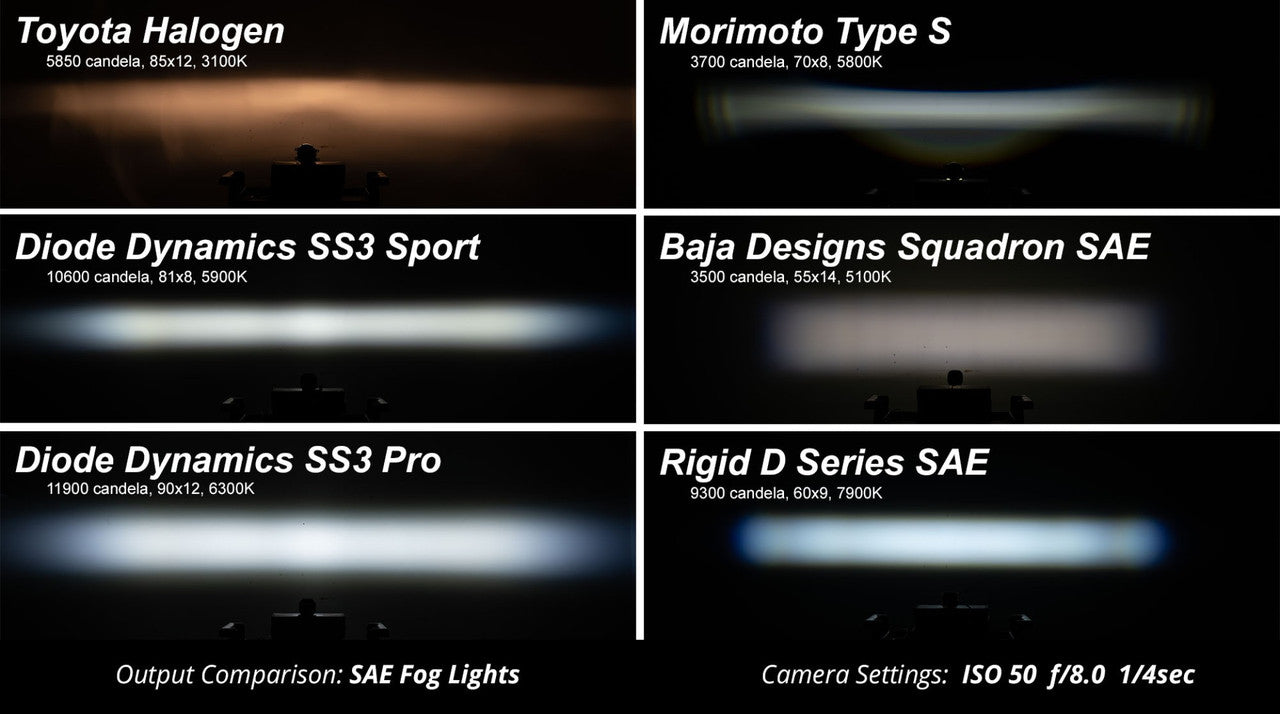

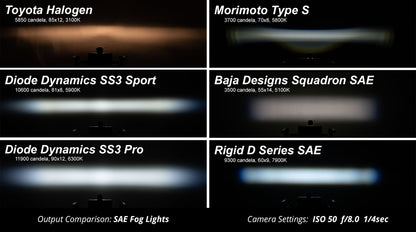

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant

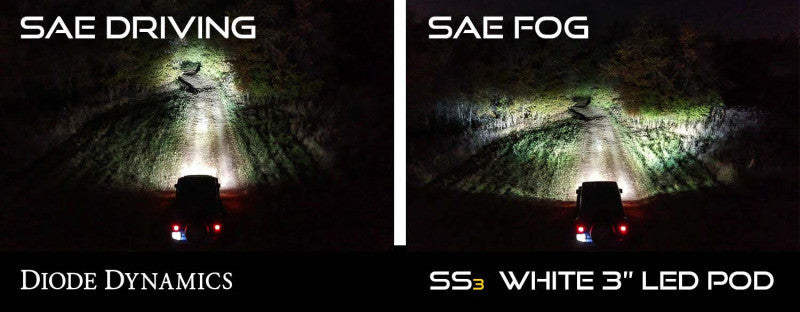

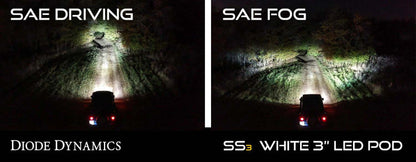

SAE Fog uses their distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle.

When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

The Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity.

Backlight Functionality

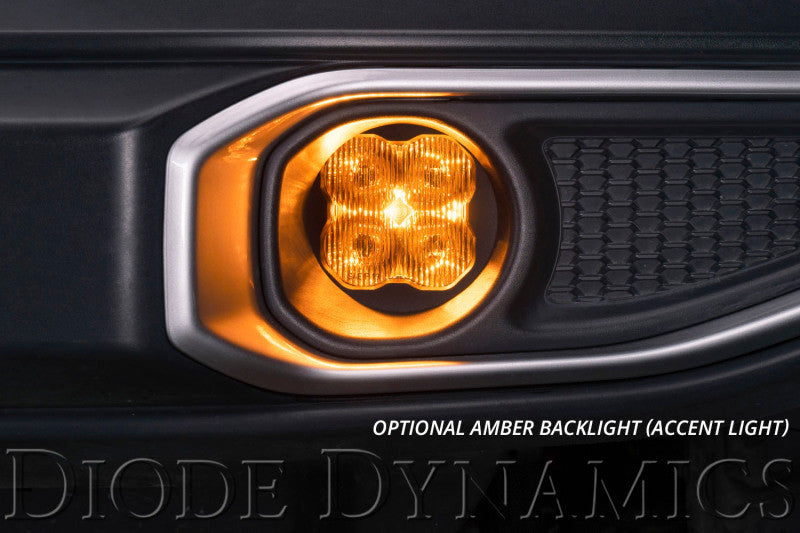

The Stage Series 3" LED Pod features a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

Proven Reliability
Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience
After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. They directly assemble and engineer their own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, they pride ourselves in offering only the best possible LED solutions.

In the Box:

• Two (2) SS3 3” Standard LED Pods
• Two (2) Type A brackets
• Two (2) H11 2-pin DT adapters
• One (1) H11 4-pin DT backlight tap wire kit
• Mounting hardware
• Mounting guide

Note: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
