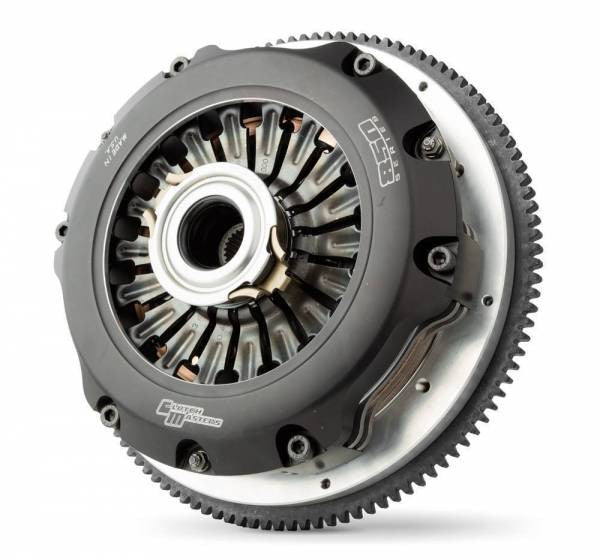

Clutch Masters FX850 Twin Disc Street Clutch Kit w/ Steel FW Pull-Type For 2004-21 WRX STI 2.5L 6 spd - 15017-TD8S-SW

850 SERIES STREET TWIN DISC CLUTCH KIT

Description
“Street and Race” (TD8S) – 1 sprung ceramic disc, and 1 fiber tuff rigid disc

The Clutch Masters FX850 is an 8.5” (216mm) Twin Disc clutch is the ultimate in twin disk performance for engines/transmissions with smaller bell-housings. Clutch Masters FX850 Twin Disc systems are pure racing technology that also work well in high performance street applications. The FX850 is designed to hold tremendous horsepower and torque, while maintaining reasonable peddle pressure to operate on the track. By increasing the clamping force of the pressure plate and adding to the square inchesof usable disc area, Clutch Master FX850 Twin Discs significantly increase clamping rates with an average of 50% increase in pedal pressure depending on the application.

The cover assembly is machined from billet aluminum and is then Type 3 hard anodized. Their billet covers have roughly 25% more tensile strength than the competition’s cast unit. By focusing their ability on machining the trongest cover possible while maintaining minimal weight, they are basically able to eliminate any flex in the cover. Their billet covers see only .003” of flex where as a cast or stamped unit can see as much as .030” of flex. By eliminating this flex in the cover, the driver is able to operate the clutch much more consistently and confidently. All the movement being applied to the diaphragm of the clutch from the throwout bearing is used solely to engage and disengage the clutch and isn’t wasted by the cover flexing first. The strength of their covers also results in greater clamping force over the same amount of area vs. a cast or stamped cover. This means their twin discs are easy to drive and have superior clamping force to make sure all the power your engine is making is being utilized.

What makes their FX725 and FX850 Multi-Disc Kits truly special, and a feature unique to Clutch Masters is their QR System, or Quick Release Pressure Plate. The QR System Incorporates three spring-loaded bolts allowing the pressure plate to engage and disengage evenly and smoothly while reducing internal clutch noise/chatter by up to 50%. The QR System was developed to provide quiet and smooth operation for the street user while delivering the performance a multi-disc race clutch needs.

Flywheels are made for each specific application in either aluminum or steel. Their aluminum flywheels are machined from billet 6061-T6 aluminum to meet SFI spec 1.2 for competition in NHRA, NDRA, IDRC, IHRA, SCCA and NASA. Aluminum flywheels are Type 3 hard coat anodized to ensure their durability and performance lasts. Each aluminum flywheel includes a replaceable insert. Steel flywheels are machined from 1045 billet cores and are then black oxide treated for rust prevention.
