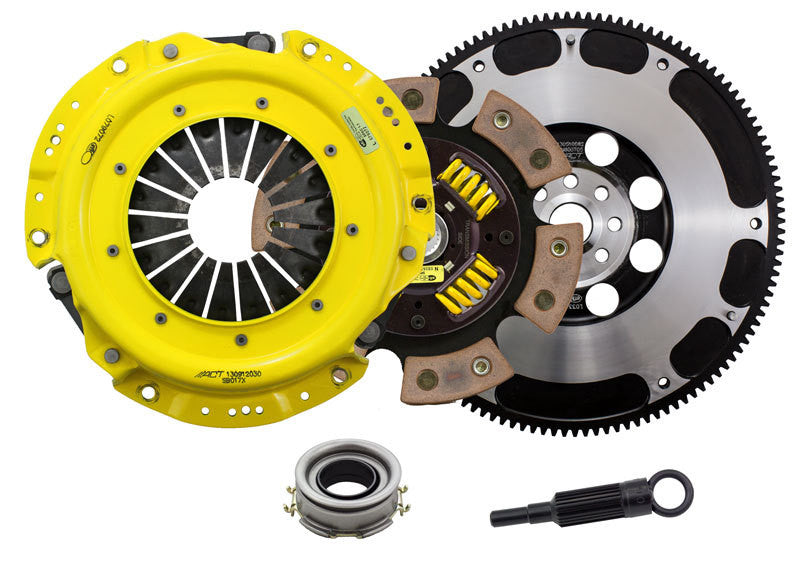

ACT XT/Race Sprung 6 Pad Clutch Kit For 2013 Scion FR-S - SB7-XTG6

ACT EXTREME/RACE SPRUNG 6 PAD CLUTCH KIT

Specification

• Product Weight (lbs.): 26.6
• Title: ACT XT/Race Sprung 6 Pad Kit
• Torque Capacity (ft/lbs.): 449
• Torque Capacity Over OE: 166%
• Pressure Plate Type: Xtreme
• Clutch Disc Diameter: 224
• Input Spline Quantity: 24
• Input Shaft Diameter: 1
• Warranty: ACT 12 Months

DESCRIPTION

SB7-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel
Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle

Life
Moderate friction life, extended by ACT's exclusive diaphragm design

Quality
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommended Use
Recommended for high horsepower street or race use

ACT Difference
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
