ACT Heavy Duty Race Rigid 6 Pad Clutch Kit with Monoloc For 2004-21 Subaru WRX STI - SB10-HDR6
ACTSB10-HDR6
Low stock! Only 5 left
Regular price
$799.00
Sale price
$799.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Question about this product?
We're happy to help.
CA WARNING:
Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to
www.P65Warnings.ca.gov/motor-vehicle-parts.

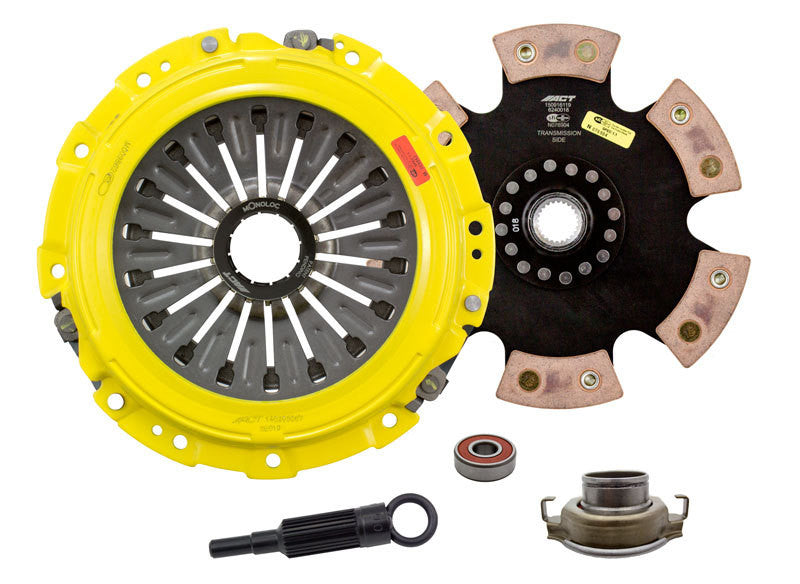

ACT HEAVY DUTY RACE RIGID 6 PAD CLUTCH KIT WITH MONOLOC
Specifications
- Item Description: ACT Heavy Duty Race Rigid 6 Pad Clutch Kit with Monoloc
- Product Weight (lbs.): 16.4
- Torque Capacity (ft/lbs.): 668
- Torque Capacity Over OE: 88%
- Disc Material: Ceramic
- Clutch Disc Diameter (Inches): 9.4
- Clutch Disc Diameter (Millimeters): 240
- Input Shaft Diameter (inches): 1
- Pressure Plate Type: Heavy Duty
- Warranty: ACT 12 Months
DESCRIPTION
SB10-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
Feel
Light to moderate pedal effort, aggressive engagement, increased gear rattle, confidence during hard shifts
Life
Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life, rigid design may increase spline wear
Quality
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism
Recommended Use
Recommended for race use only
ACT Difference
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc
Installation Instructions
Installation Instructions
Fitment
Fitment
