ACT Extreme Race Sprung 6 Pad Clutch Kit For 2013-20 Subaru BRZ/Scion FR-S - SB8-XTG6
ACTSB8-XTG6
Low stock! Only 3 left
Regular price
$946.00
Sale price
$946.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Question about this product?
We're happy to help.
CA WARNING:
Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to
www.P65Warnings.ca.gov/motor-vehicle-parts.

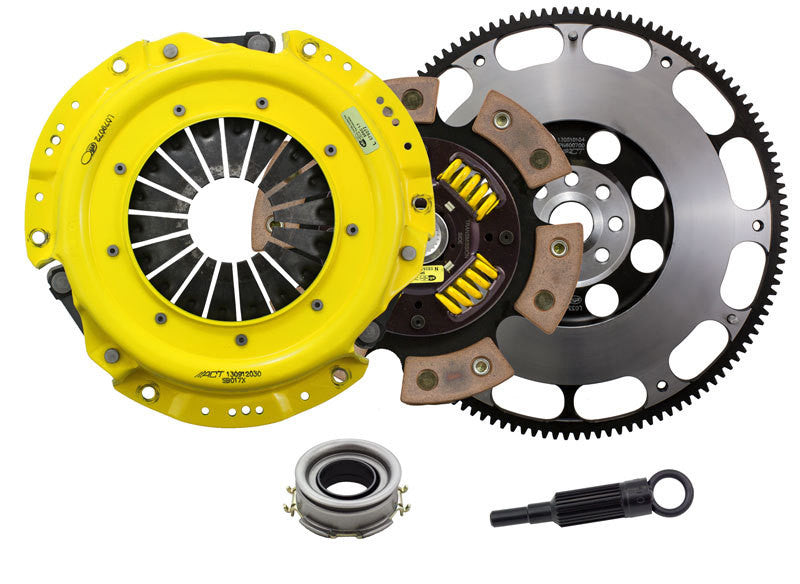

ACT EXTREME RACE SPRUNG 6 PAD CLUTCH KIT
Note: Conversion kit. Includes ACT Prolite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).
Specifications:
- Item Description: ACT Extreme Race Sprung 6 Pad Clutch Kit
- Product Weight (lbs.): 25.3
- Torque Capacity (ft/lbs.): 449
- Torque Capacity Over OE: 166%
- Disc Material: Ceramic
- Clutch Disc Diameter (Inches): 8.8
- Clutch Disc Diameter (Millimeters): 224
- Input Shaft Diameter (inches): 1
- Pressure Plate Type: Xtreme
- Flywheel Type: Prolite
- Warranty: ACT 12 Months
DESCRIPTION
SB8-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Feel
Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
Life
Moderate friction life, extended by ACT's exclusive diaphragm design
Quality
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended Use
Recommended for high horsepower street or race use
ACT Difference
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Installation Instructions
Installation Instructions
Fitment
Fitment
