IAG EJ Street Series Oil Pan Package (Silver Pan / Pickup / Street Baffle / Windage Tray) For WRX, STI, LGT, FXT

5 reviews Write a Review
$629.99
SKU:
IAG-ENG-2201SL
UPC:
887753778833
Availability:
Usually Ships in 24 to 72 Hours
Proposition 65:
warning P65 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.
5 customers are viewing this product

IAG EJ Street Series Oil Pan Package (Silver Pan / Pickup / Street Baffle / Windage Tray) For WRX, STI, LGT, FXT

$629.99

Out of Stock

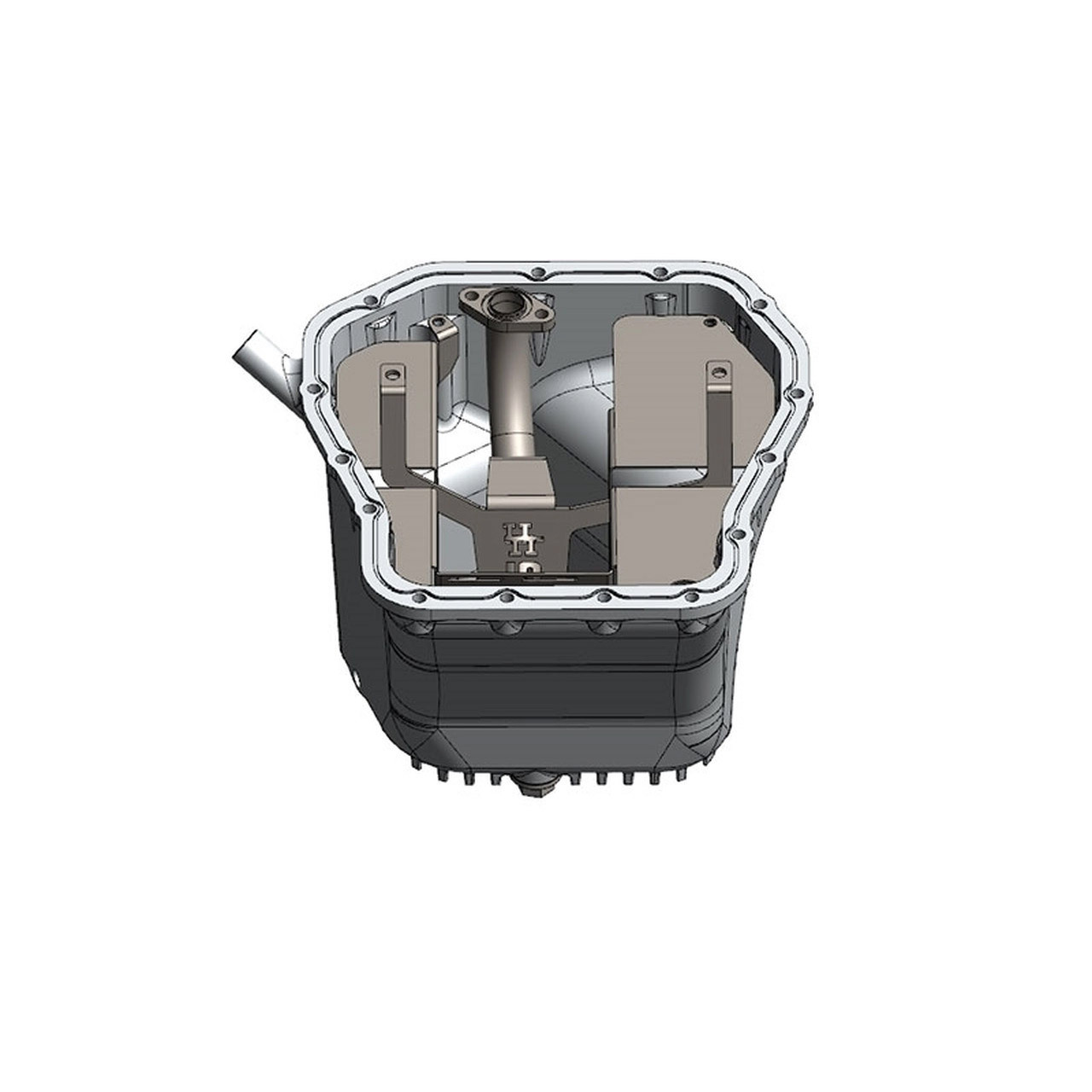

IAG offers our V2 Oil Pickup, Street Series Baffle and Windage Tray combined with our New Oil Pan as a complete package.

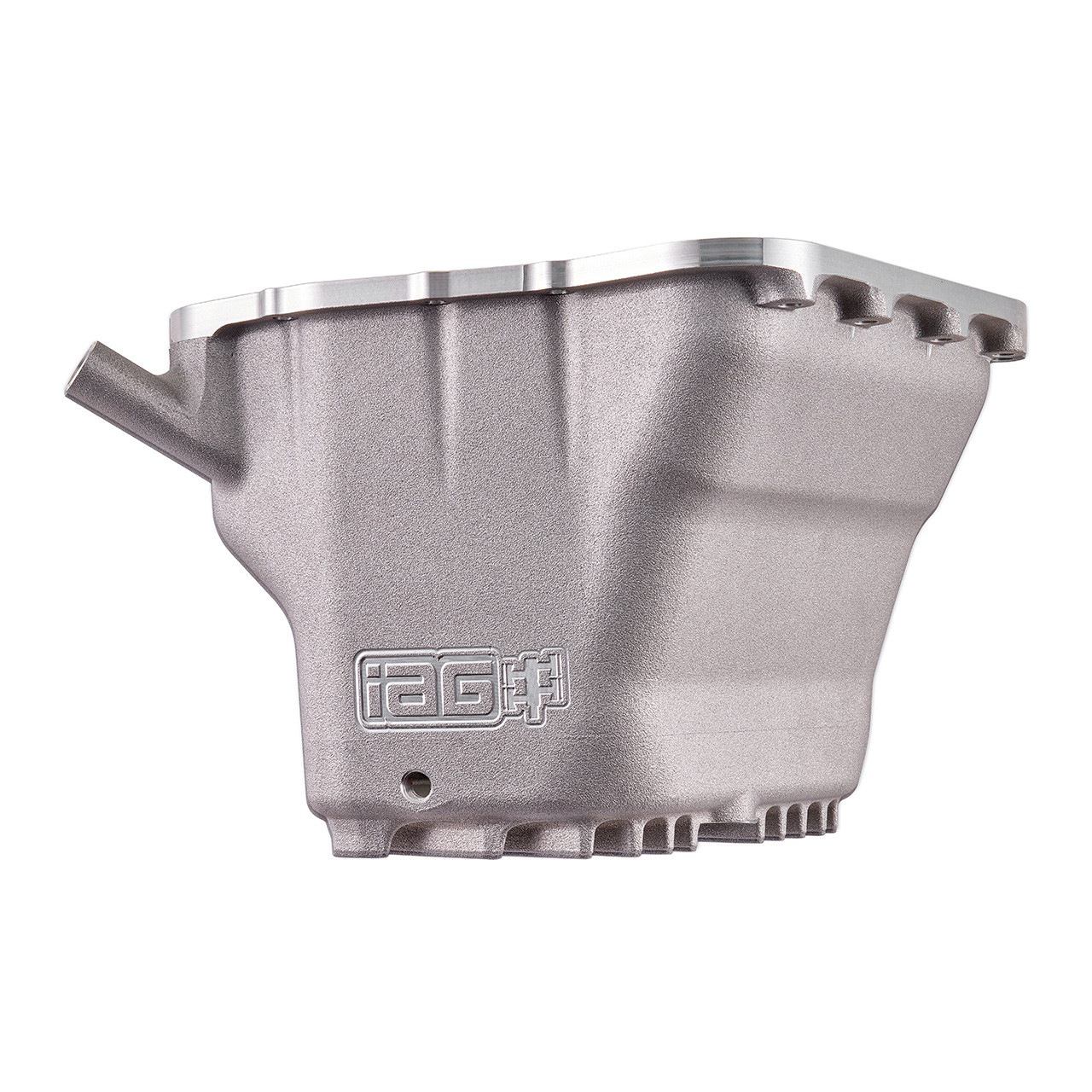

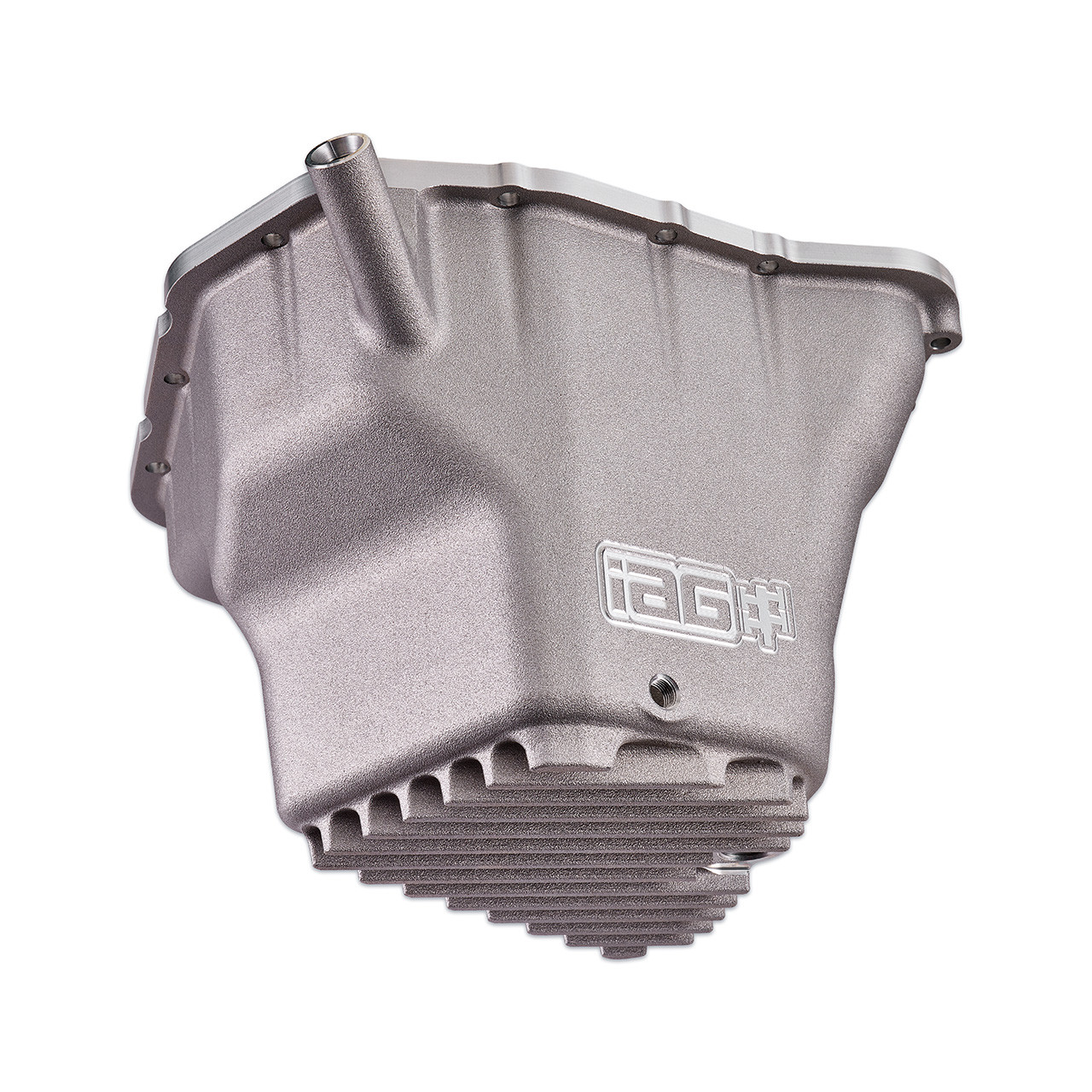

About Street Series EJ Oil Pan

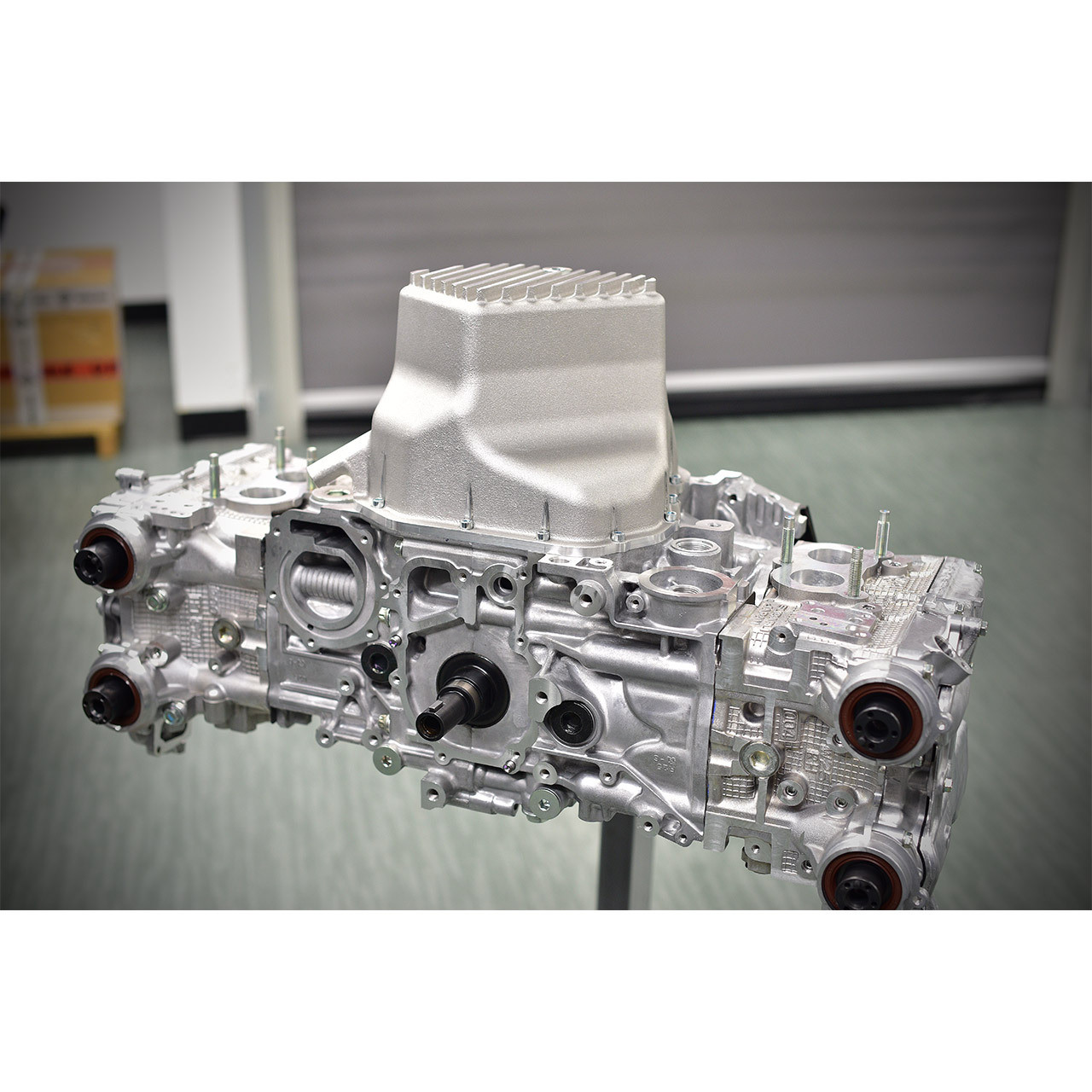

The IAG Street Series Oil Pan for the Subaru WRX and STI is uniquely designed and CNC machined to suit a wide range of street and track applications. The cast aluminum oil pan was designed with fitment for a larger variety of popular headers in mind, while still increasing oil capacity up to 30% over OEM.

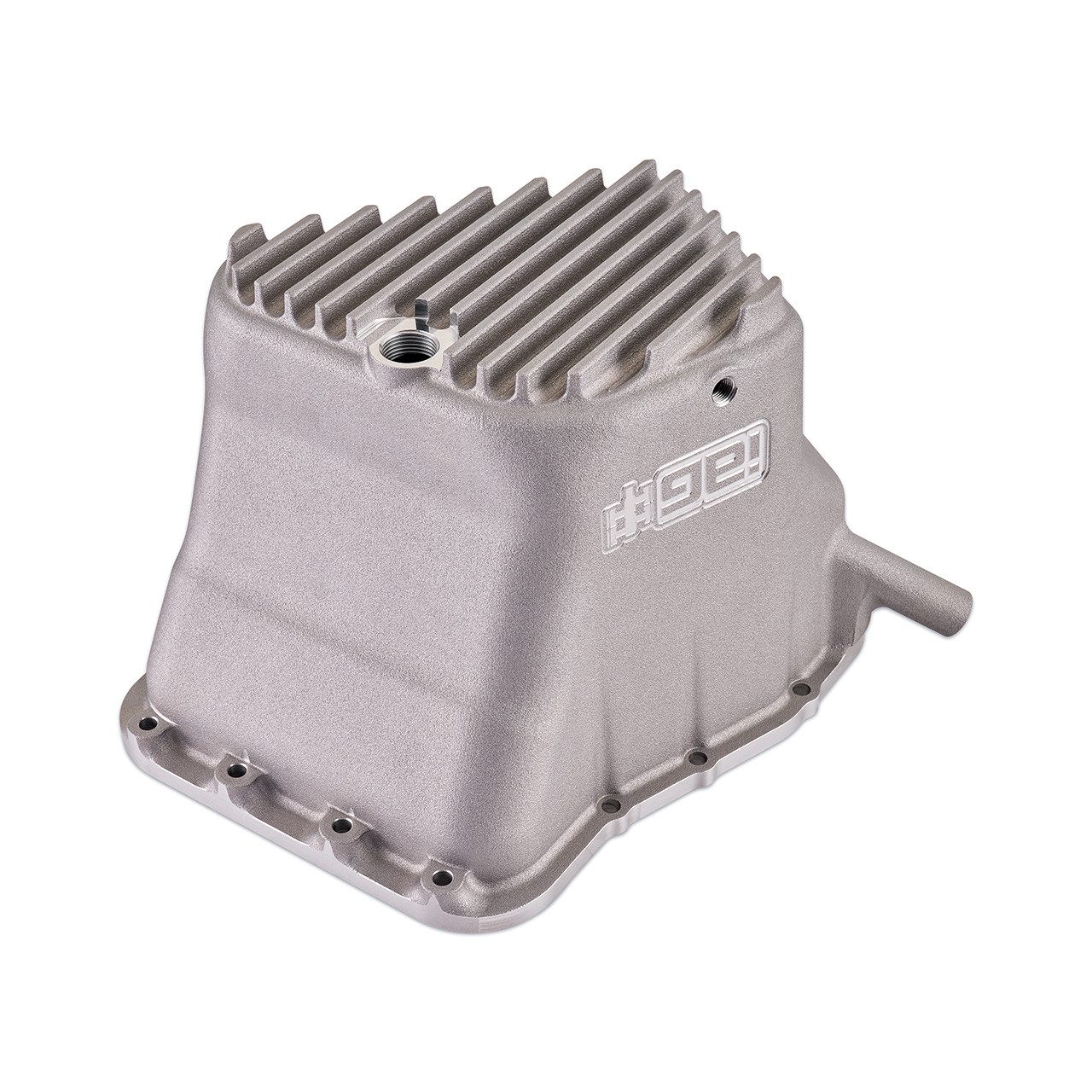

The design incorporates cooling fins to aid in dissipating heat from the oil as air passes over them. The included oil drain plug is integrated into the lower cooling fins at the absolute bottom of the pan to make sure all the waste oil is removed during maintenance changes. The oil drain plug uses an OEM style crush washer. The oil pan is also threaded with 1/8th inch NPT port to accept many popular oil temperature sensors. 1/8th inch NPT plug is also included in the event that the sensor port is not used.

The upper flange mounting surface is CNC machined for better hardware fitment. The flange features a sealing O-ring for easier installation and removal. The pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick.

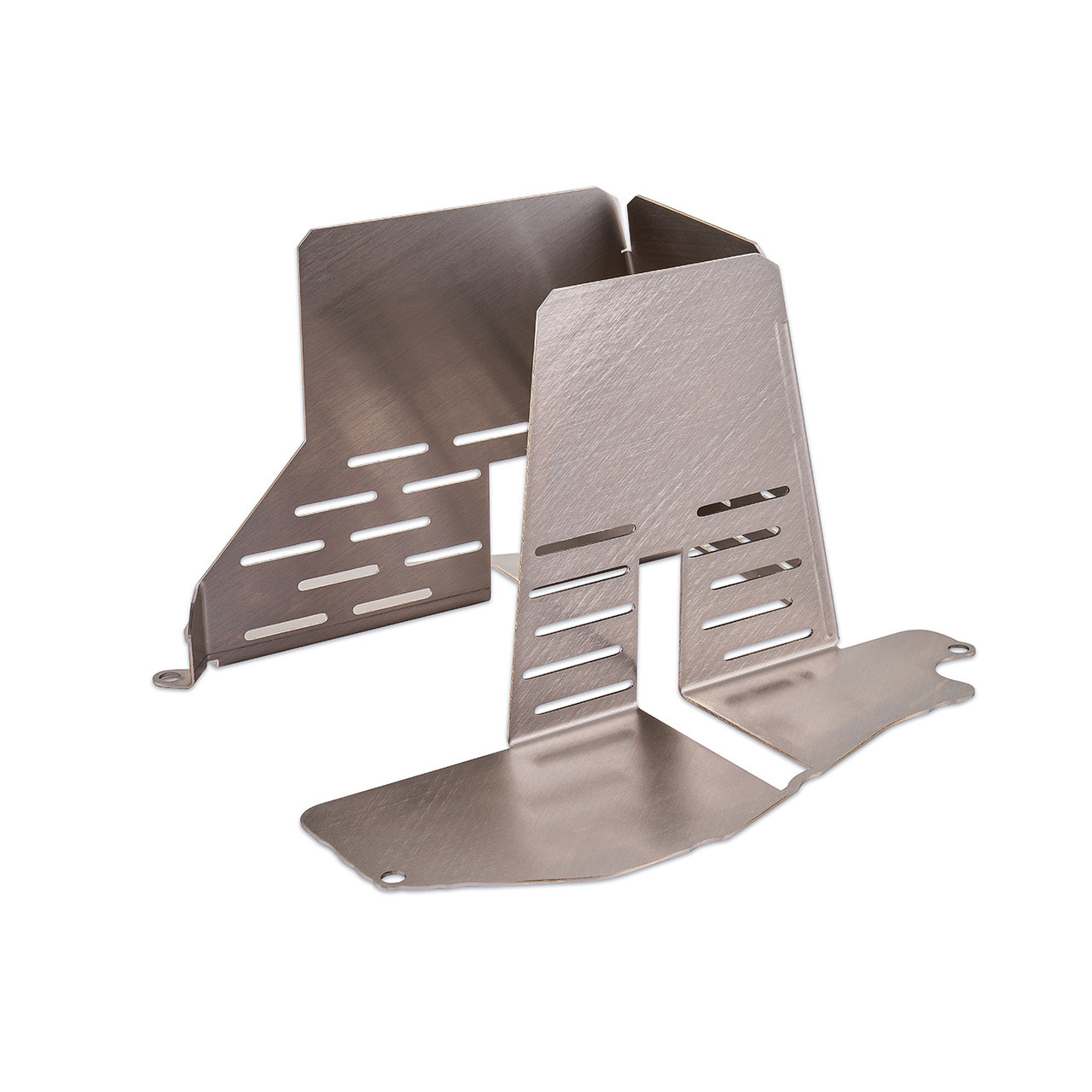

About Street Series Oil Baffle

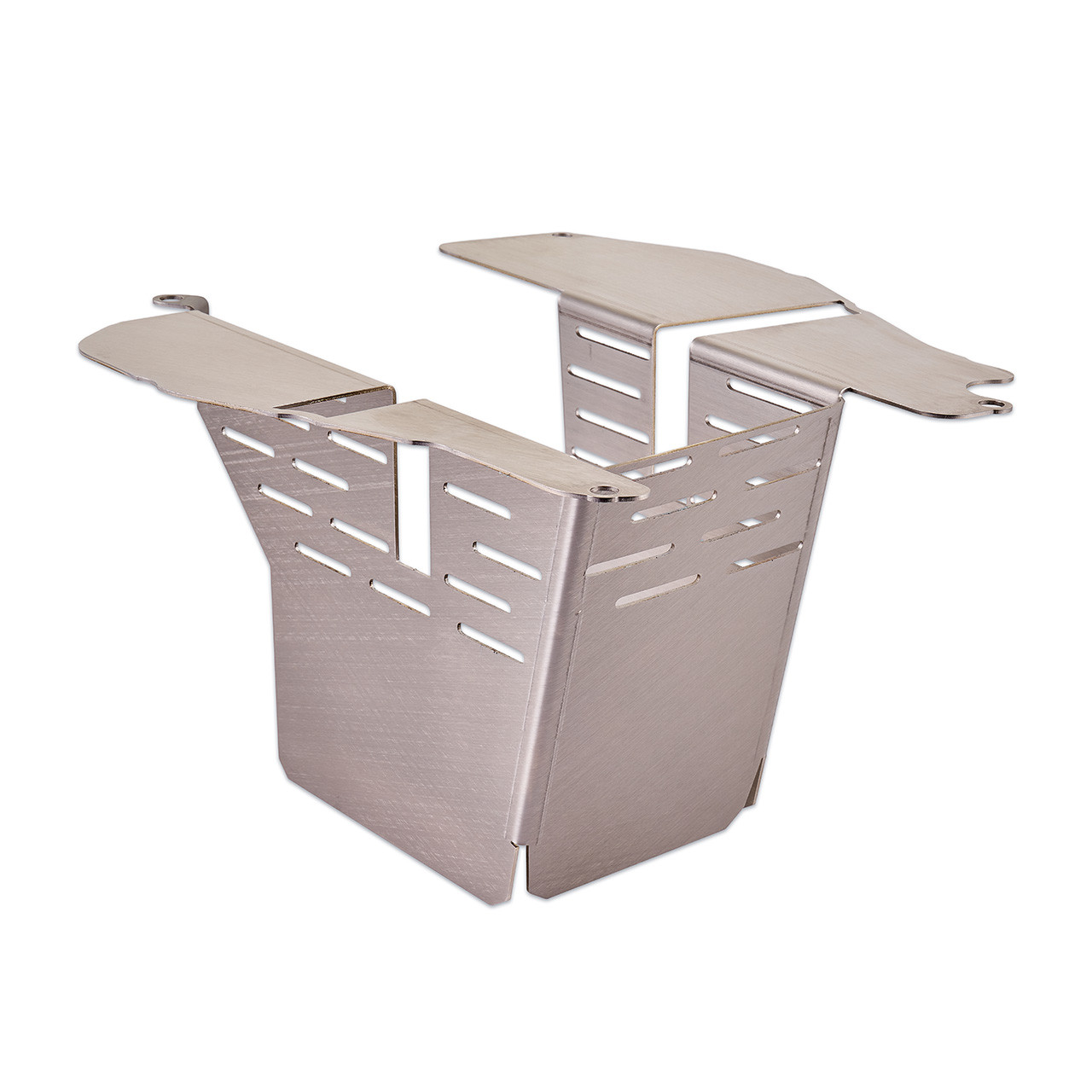

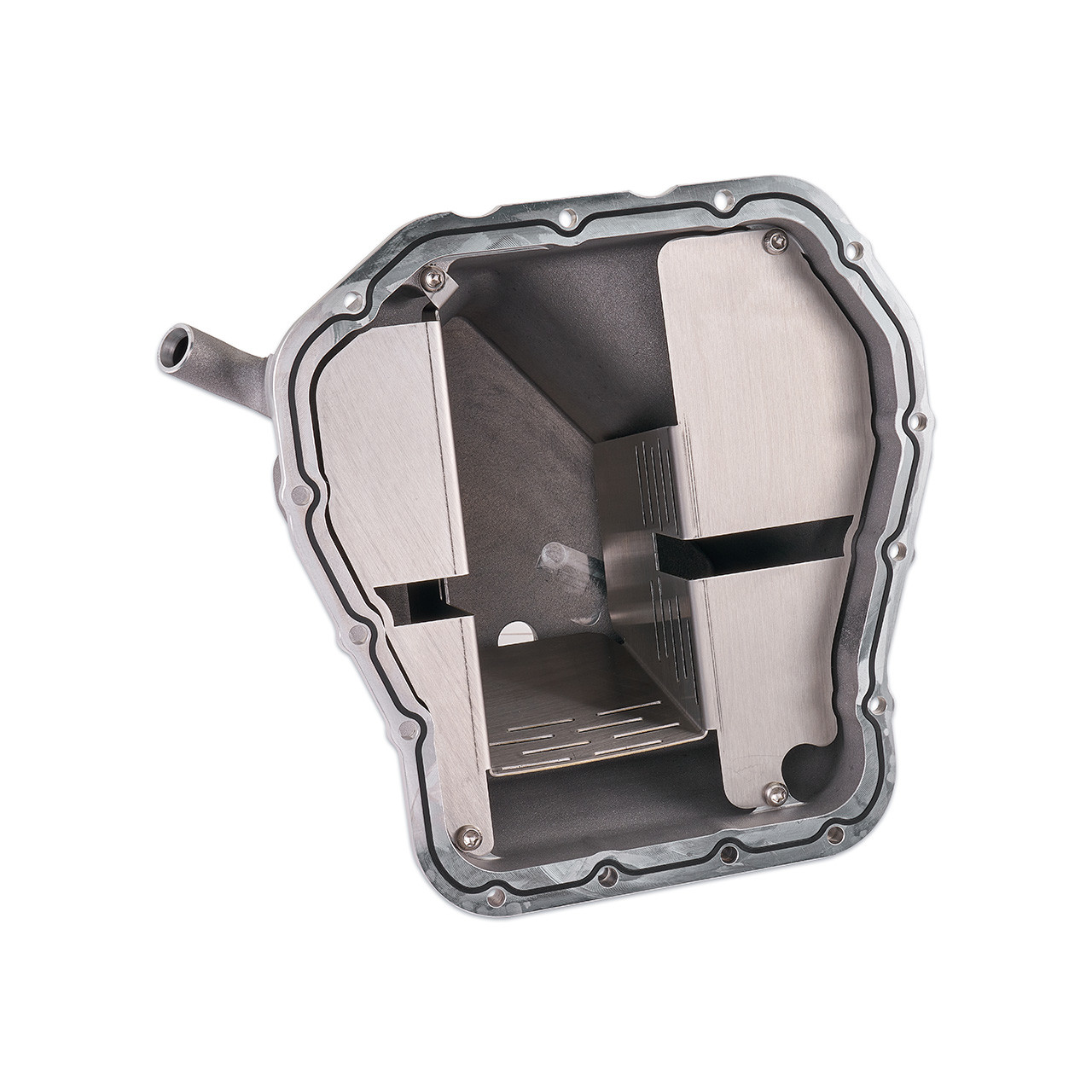

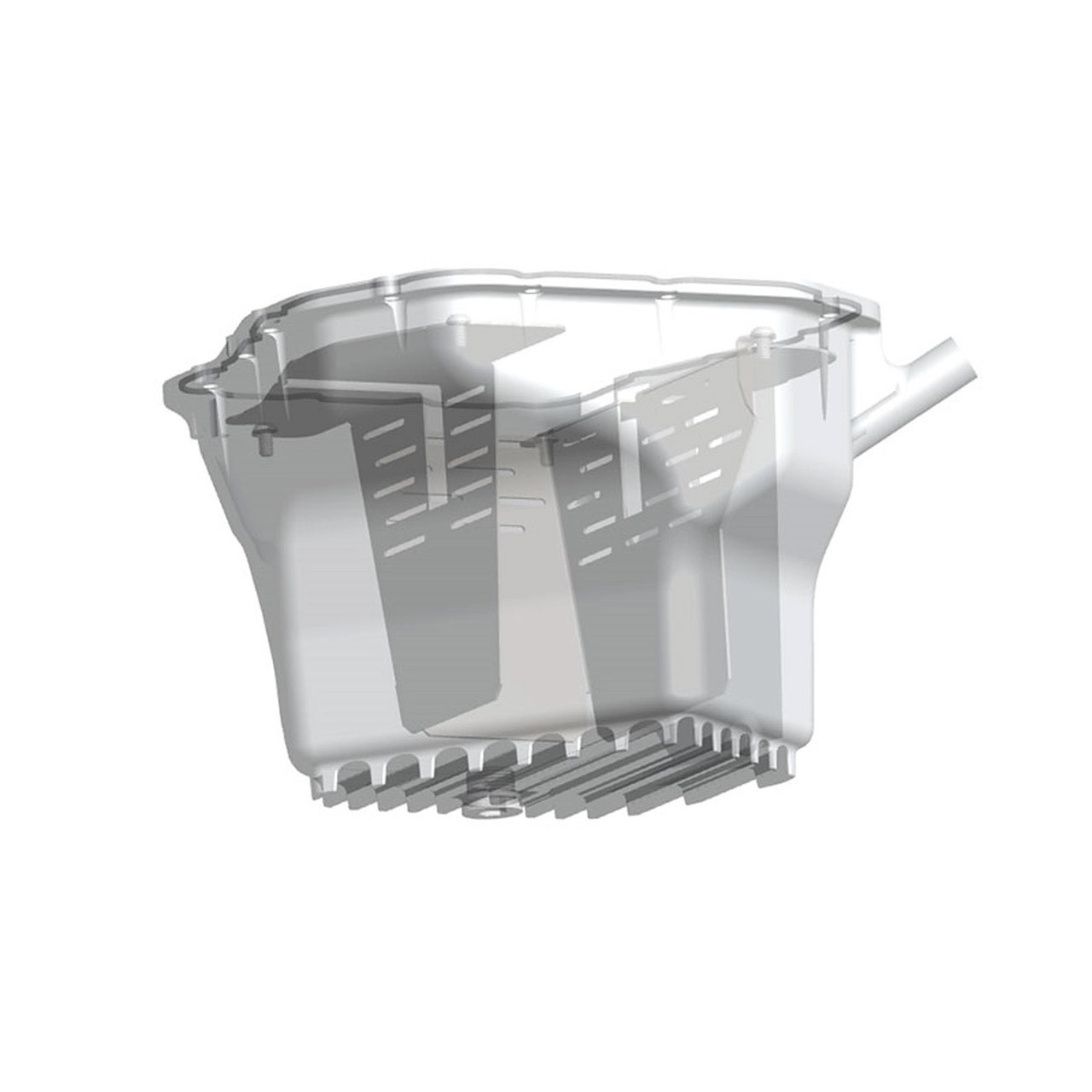

Internally, the pan includes our integrated, stainless steel, Street Series Oil Baffle that is designed to prevent oil inside the pan from sloshing around and creating cavitation, which can lead to oil starvation. The baffle is engineered to be removable for future upgrades and easy cleaning.

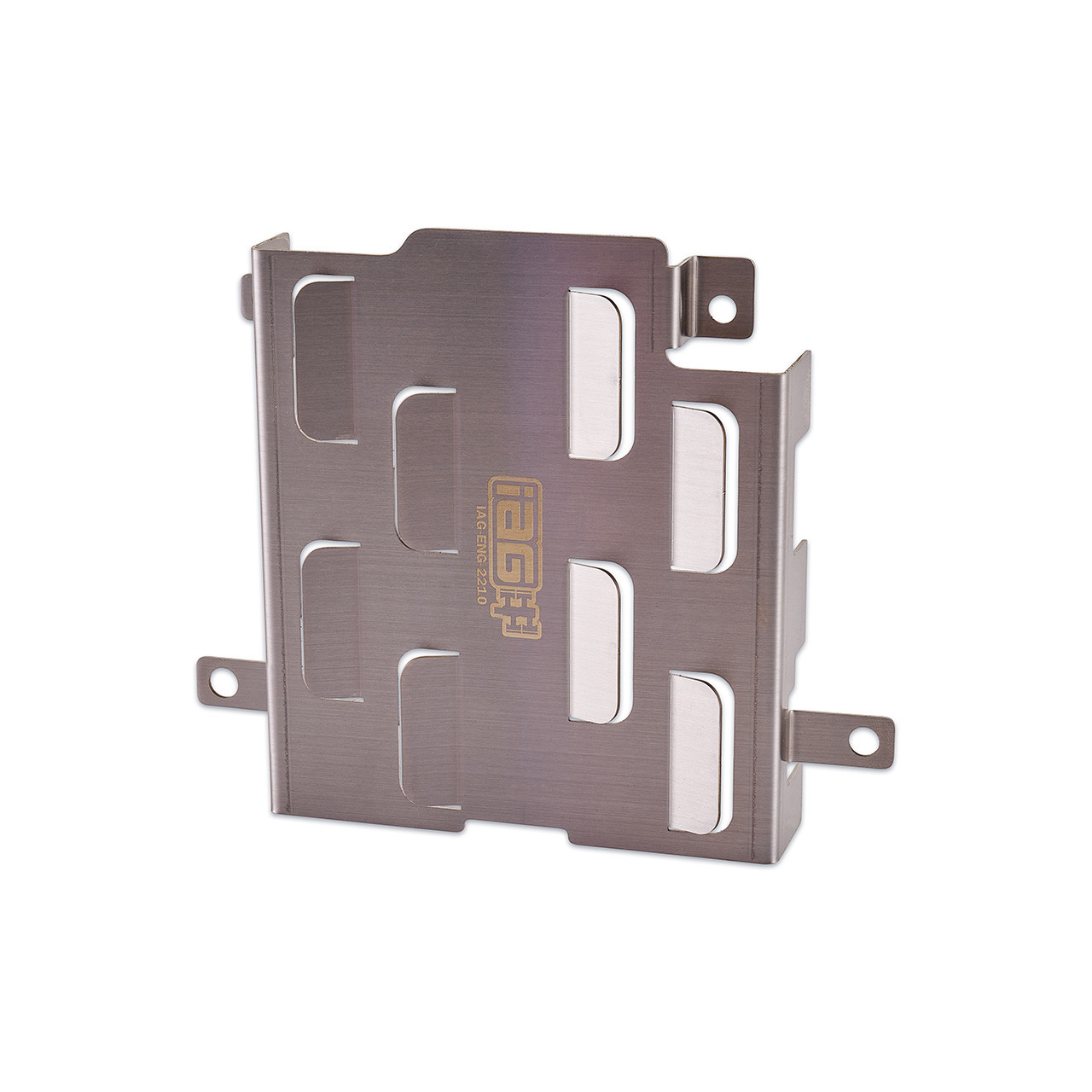

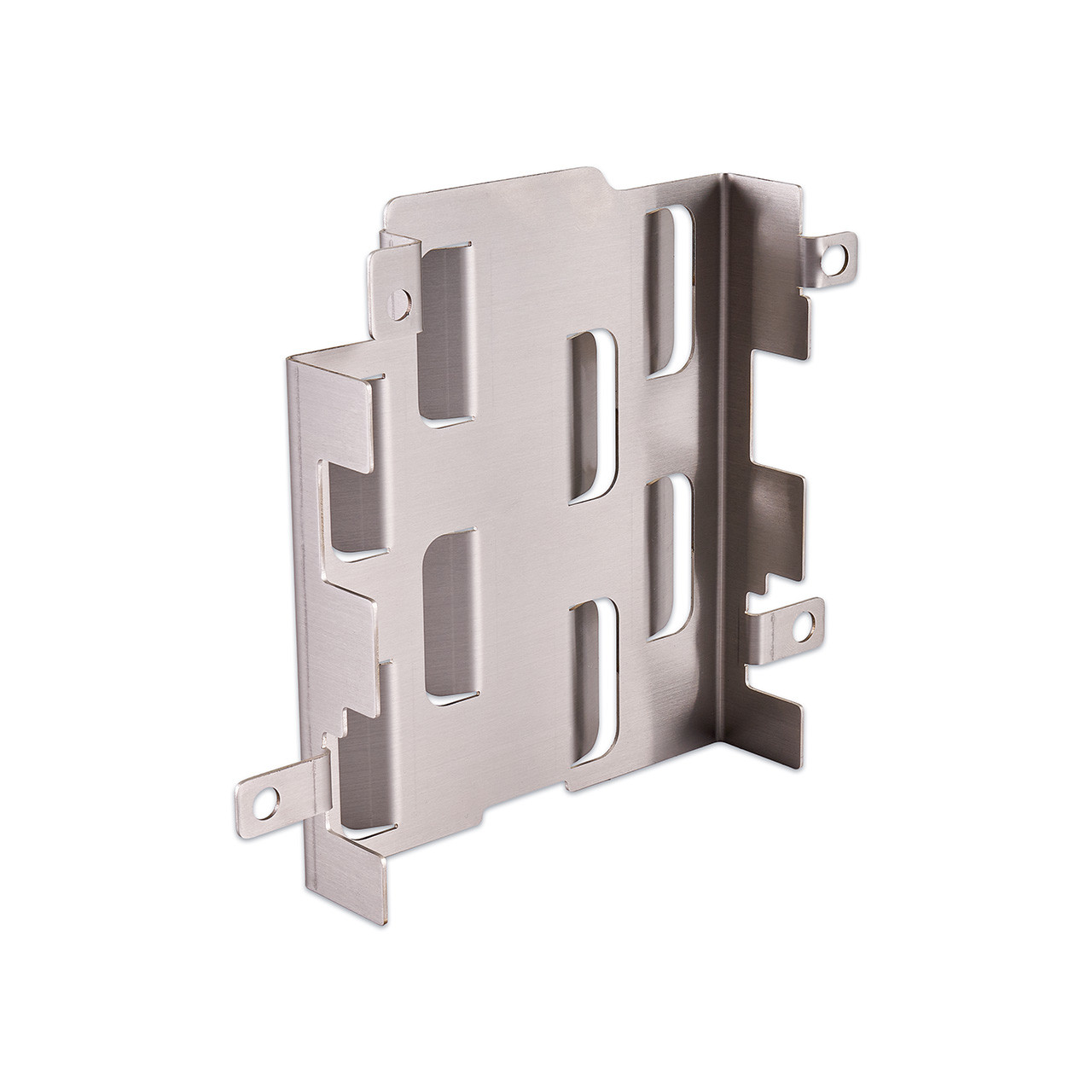

About Windage Tray
The job of the windage tray is to help direct oil from the upper crankcase down into the lower crankcase and oil pan area. Manufactured from stainless steel, precision-formed louvers direct oil downwards and help to prevent oil that is draining from the cylinder heads in the lower crankcase area from sloshing upwards into the path of the crankshaft and connecting rods, thus reducing aeration.

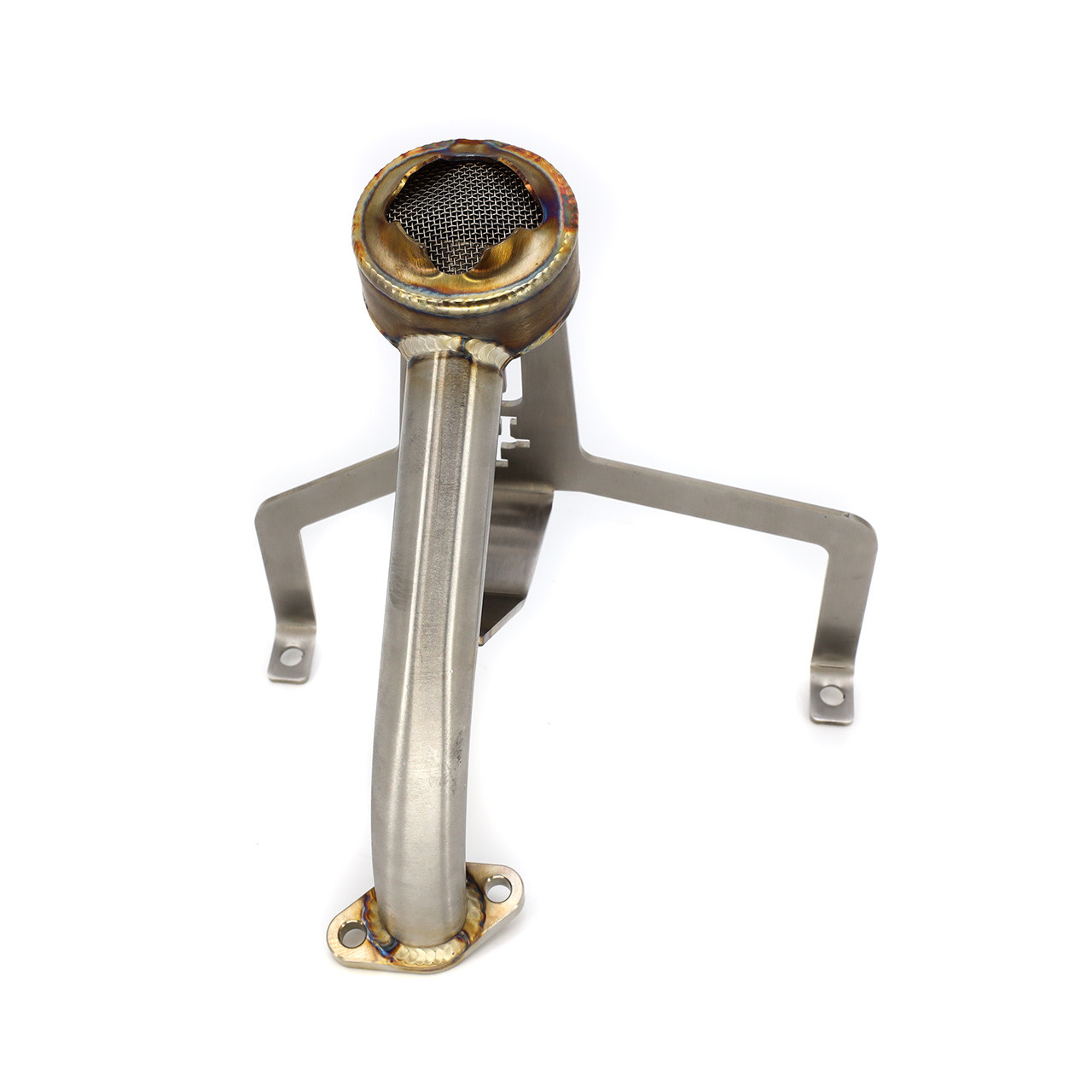

About IAG V2 Oil Pickup:
The IAG Performance Subaru WRX / STI oil pickup is designed to replace the OEM EJ25 oil pickup which is prone to failure. It's a well-known fact that the OEM oil pickups often crack and fail which in most cases destroys your motor from lack of oil pressure. To avoid the cracking failures seen in the OEM oil pickup tubes, the IAG oil pickup is manufactured from heavy-gauge steel tubing that is 2x thicker than OEM. Additionally, it features a flange machined from 3/8" stainless steel to mate with the block, sealed with a Viton O-ring. The integrated heavy-duty stainless steel mounting bracket uses two mounting points rather than the OEM single mounting point. Furthermore, the oil pickup features a formed bottom with an OEM style mesh screen for proper filtration. The TIG-welded oil pickup increased material thickness matched with the two-point heavy-duty mounting bracket helps ensure it does not fatigue and fail over time like an OEM unit.


Package Includes:

  • (x1) IAG Cast Aluminum Oil Pan with Machined Flanges, Cooling Fins & Silver Finish
  • (x1) IAG Street Series Oil Pan Baffle
  • (x1) IAG Windage Tray
  • (x1) IAG V2 Oil Pickup
  • (x1) Oil Pan Mounting Hardware Pack
  • (x1) Oil Baffle Hardware Pack
  • (x1) Oil Pickup Spacer Kit
  • (x1) M20 Zinc Plated Oil Drain Plug & OEM Style Crush Washer/Gasket
  • (x1) 1/8" NPT Zinc Plated Plug
  • (x1) Oil Pan O-ring
  • (x2) Oil Pan Dipstick Viton OEM Sized O-rings
  • All necessary hardware required for install


Install Notes

  • IAG oil pickup spacer is included and required when using the IAG oil pickup.



PDF icon PDF Instructions for IAG Oil Pan Install




Model Year & Fitment


  • 2002 Subaru WRX
  • 2003 Subaru WRX
  • 2004 Subaru WRX
  • 2005 Subaru WRX
  • 2006 Subaru WRX
  • 2007 Subaru WRX
  • 2008 Subaru WRX
  • 2009 Subaru WRX
  • 2010 Subaru WRX
  • 2011 Subaru WRX
  • 2012 Subaru WRX
  • 2013 Subaru WRX
  • 2014 Subaru WRX
  • 2004 Subaru STI
  • 2005 Subaru STI
  • 2006 Subaru STI
  • 2007 Subaru STI
  • 2008 Subaru STI
  • 2009 Subaru STI
  • 2010 Subaru STI
  • 2011 Subaru STI
  • 2012 Subaru STI
  • 2013 Subaru STI
  • 2014 Subaru STI
  • 2015 Subaru STI
  • 2016 Subaru STI
  • 2017 Subaru STI
  • 2018 Subaru STI
  • 2019 Subaru STI
  • 2020 Subaru STI
  • 2021 Subaru STI
  • 2005 Subaru Legacy GT
  • 2006 Subaru Legacy GT
  • 2007 Subaru Legacy GT
  • 2008 Subaru Legacy GT
  • 2009 Subaru Legacy GT
  • 2004 Subaru Forester XT
  • 2005 Subaru Forester XT
  • 2006 Subaru Forester XT
  • 2007 Subaru Forester XT
  • 2008 Subaru Forester XT
  • 2009 Subaru Forester XT
  • 2010 Subaru Forester XT
  • 2011 Subaru Forester XT
  • 2012 Subaru Forester XT
  • 2013 Subaru Forester XT

  • IAG Oil pan/widage tray/pick up 2019 STI
    5

    Posted by Shanaka on Feb 2nd 2023

    Finally got around to installing the IAG oil pan, windage tray, and the pick up for the 2019 STI. The package arrived promptly after ordering. After opening the package I thought some of the hardware was missing because couple of the plastic bags that held the hardware were torn. But luckily I was able to find all the screws and the tiny washers among the packaging material. Other than that the quality of the pan and everything is great. Hardest part of the installation for me was getting the OEM pan off. After that installation was not that bad. Now I am able to monitor the oil temperature and I also noticed an increase in oil pressure at idle as well. Overall I am very pleased with the product and would recommend it to anyone who's looking to upgrade their oil pan.

  • IAG EJ Street series oil pan package
    5

    Posted by Joe on Dec 7th 2021

    Before I bought this package I had actually purchased a STI oil pan and pickup for my 04 WRX wagon. Once I saw the OEM pickup tube I put that on the shelf and bought this. Having them side by side I am beyond EXCITED to have this under my car. The fit and finish is so much nicer than I ever could have expected. From the hardware to the windage tray pickup tube(that I won’t be seeing for a LONG time) and the absolutely gorgeous oil pan. The fit and finish is second to none and I’ve never been more excited to get under the car and change the oil. If you are thinking about it DO IT! You will NOT be disappointed.

  • 2013 WRX STI Hatchback
    5

    Posted by @funky4_u on Sep 8th 2021

    Awesome product and quality is top notch . Recommended for anyone trying to upgrade their oil pan / baffle / windage tray. I found the IAG pan to be easier to install than the competitors as the rear bolts provided from IAG were designed perfectly for ease of reach despite of the tight space. - Bottom drain is a big plus - Oil pan takes about 5.8 quarts - Clears Killer b headers no problem
