IAG EJ Competition Series Oil Pan Package (Black Pan / Pickup / Comp Baffle / Windage Tray) For WRX, STI, LGT, FXT

$839.99

SKU:
IAG-ENG-2202BK
UPC:
887753778666
Availability:
Usually Ships in 2 to 3 Weeks
Proposition 65:
warning P65 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.
fbt-product:
32450
shipping-truck-icon
Delivery by ,
If ordered within hours and minutes
Not Shipping to ?
More Delivery Options
5 customers are viewing this product
IAG EJ Competition Series Oil Pan Package (Black Pan / Pickup / Comp Baffle / Windage Tray) For WRX, STI, LGT, FXT

IAG EJ Competition Series Oil Pan Package (Black Pan / Pickup / Comp Baffle / Windage Tray) For WRX, STI, LGT, FXT

$839.99

IAG EJ COMPETITION SERIES OIL PAN PACKAGE (BLACK PAN / PICKUP / COMP BAFFLE / WINDAGE TRAY) FOR WRX, STI, LGT, FXT



IAG EJ Competition Series Oil Pan Package (Black Pan / Pickup / Comp Baffle / Windage Tray) For WRX, STI, LGT, FXT

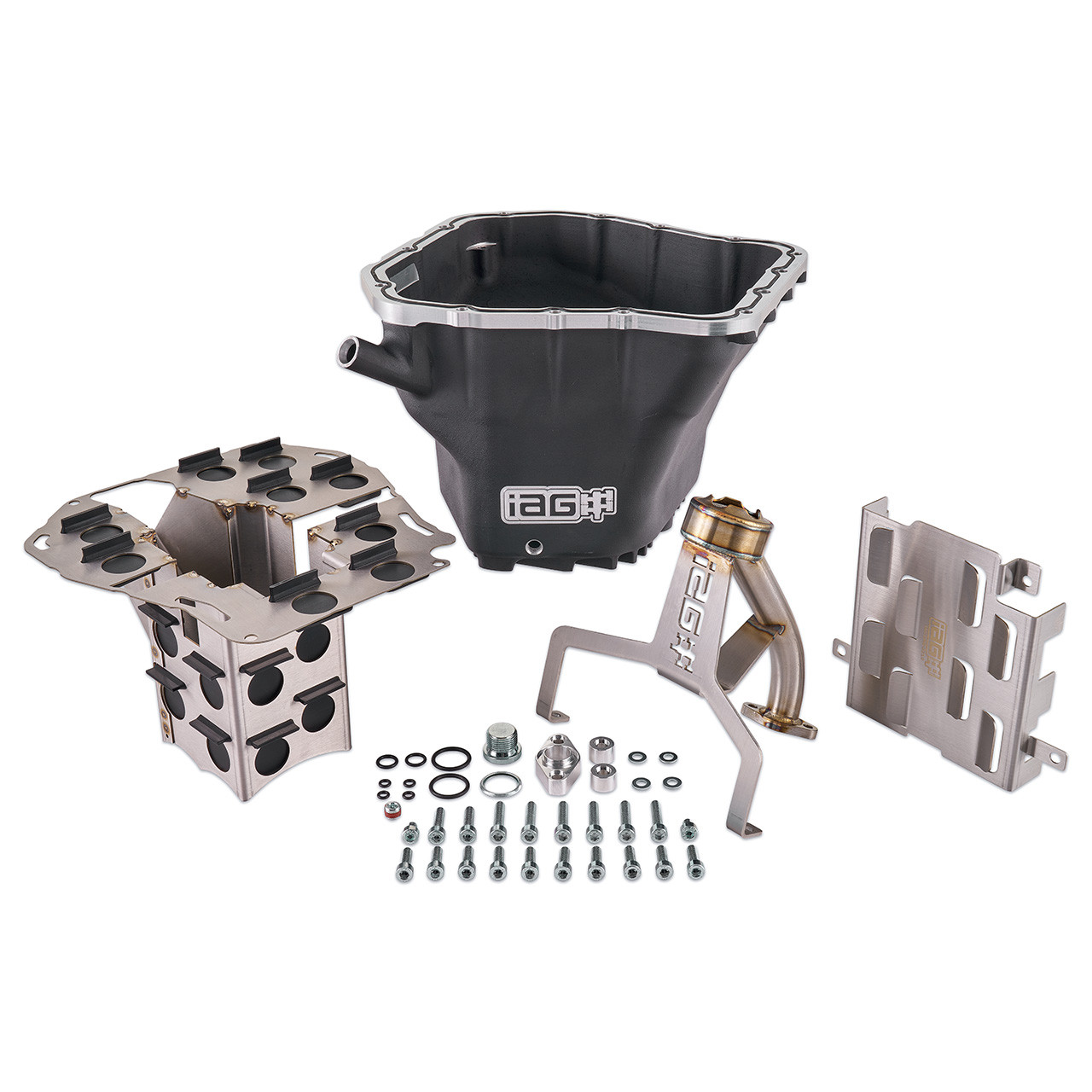

COMPLETE COMPETITION SERIES PACKAGE

IAG now offers our V2 Oil Pickup, Competition Series Baffle and Windage Tray combined with our Competition Oil Pan finished in black as a complete package. This bundle is designed to work together as a complete unit. The IAG EJ Competition Series Oil Pan Package includes all the necessary components and hardware to replace the oil pan on your WRX, STI, Legacy GT or Forester XT Subaru, saving you the inconvenience of having to hunt down specialty parts.

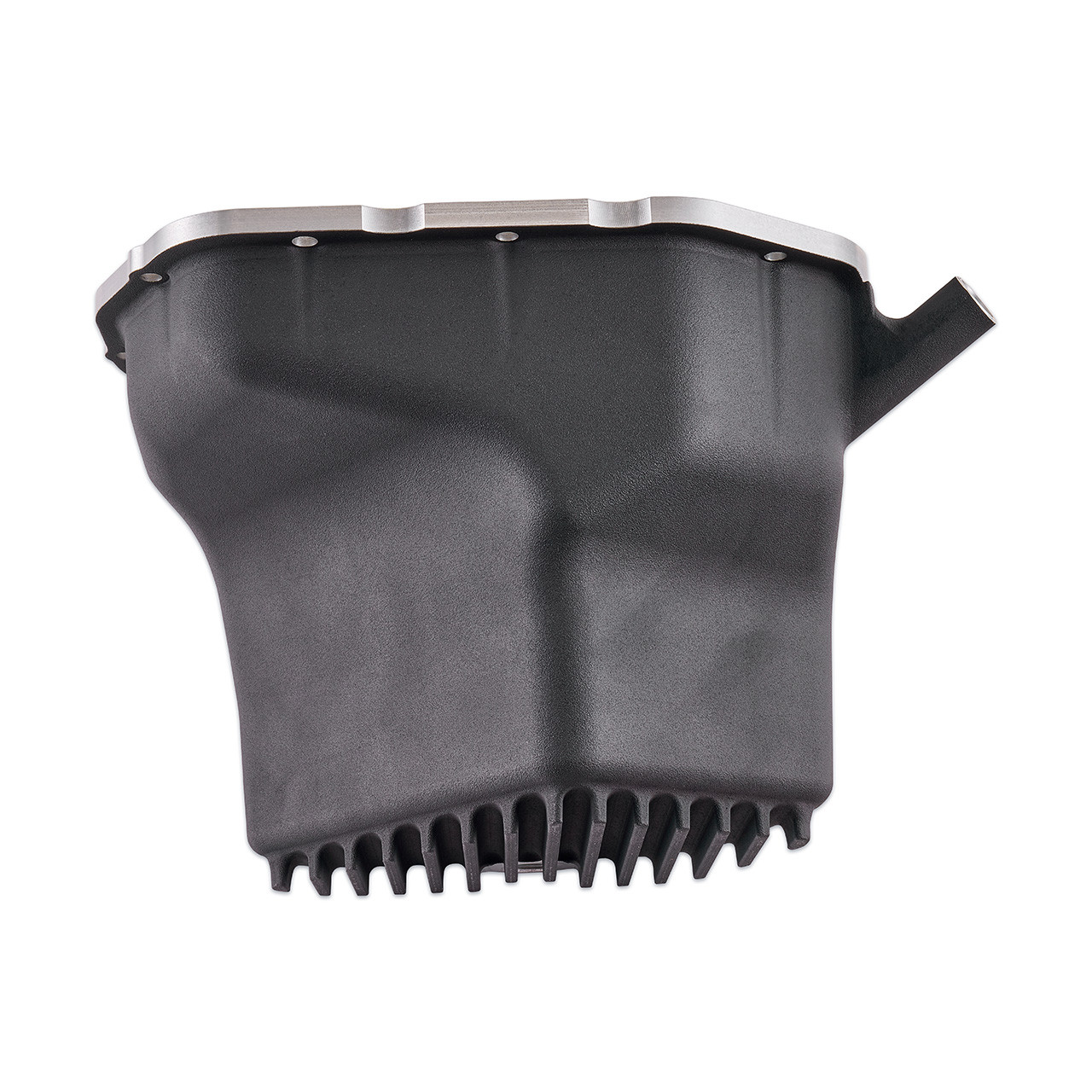

GREATER OIL CAPACITY

The IAG EJ Competition Series Oil Pan Package is designed for Subaru WRX, STI, LGT, and FXT models. Its unique CNC machined design It features a special CNC-machined design suitable for various street and track uses. Made from durable cast aluminum, it is compatible with several popular headers and increases oil capacity by up to 30% compared to the OEM version.

IAG EJ Competition Series Oil Pan - Increased Oil Capacity
IAG EJ Competition Series WRX STI Oil Pan - Cooling Fins

REDUCED OIL TEMP & BOTTOM FACING DRAIN PLUG

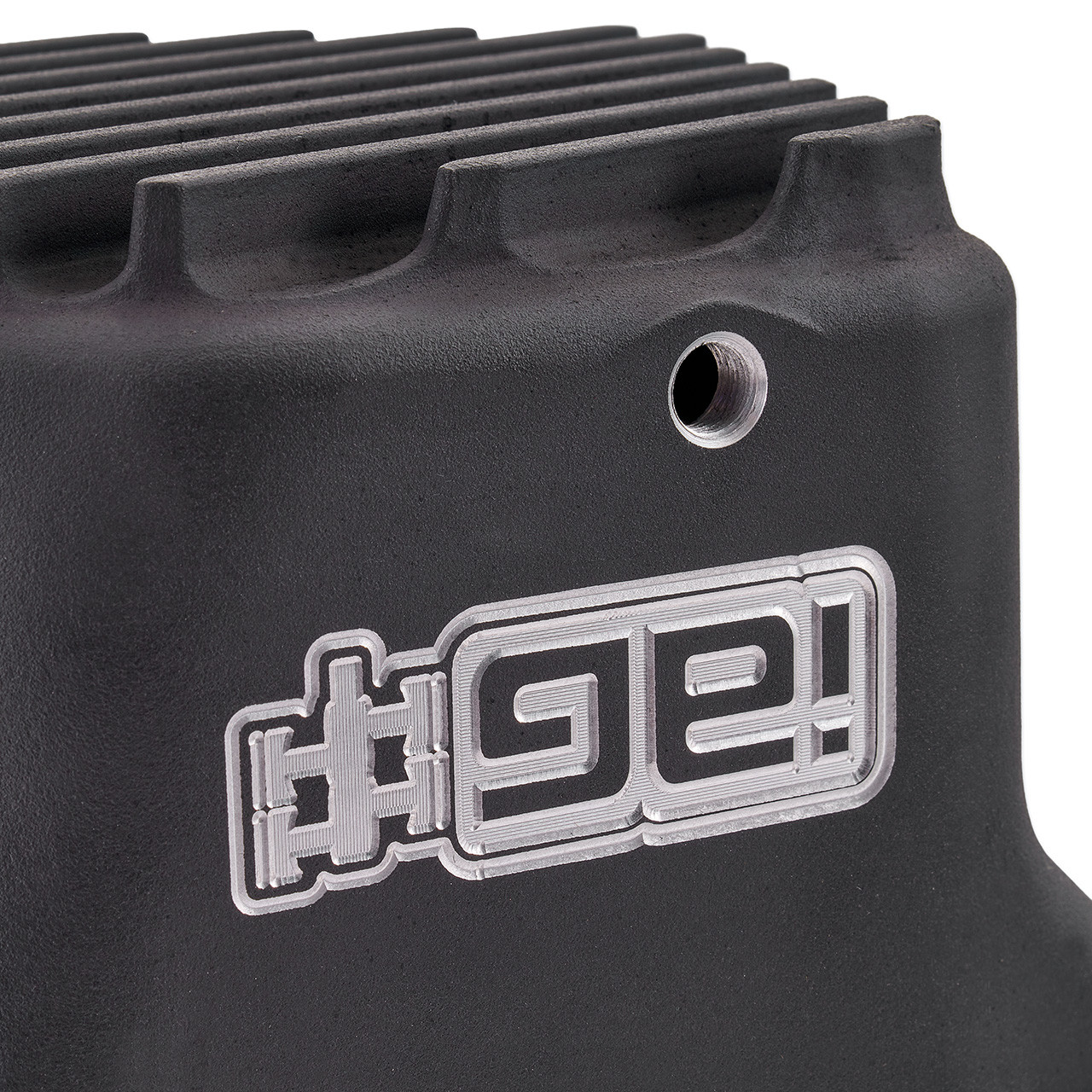

The Competition Series Oil Pan uses cooling fins to aid in heat dissipation from the oil as air passes over them. It also features a bottom facing drain plug for easy maintenance access and to ensure complete removal of any remaining waste oil during services. The pan has a 1/8th inch NPT port that is compatible with several popular temperature sensors. If you decide not to use the sensor port, this oil pan package comes with a 1/8-inch plug to seal the opening.

PRECISION ENGINEERED

The IAG Performance EJ Competition Series Oil Pan Package features several thoughtfully designed elements. The upper flange surface is precision-machined for better hardware fitment and includes a molded sealing O-ring for easier installation and removal. There's no need to apply silicone sealant to the flange during installation. The EJ Oil Pan uses an OEM-style crush washer, eliminating the need to search for specialized parts for servicing. The pan is designed to use the included OEM style Viton dipstick o-rings and has a unique chamfer to aid in the installation of the dipstick.

IAG EJ Competition Series Oil Pan Package - Engineering
IAG EJ Competition Series Oil Pan Thermal Dispersant

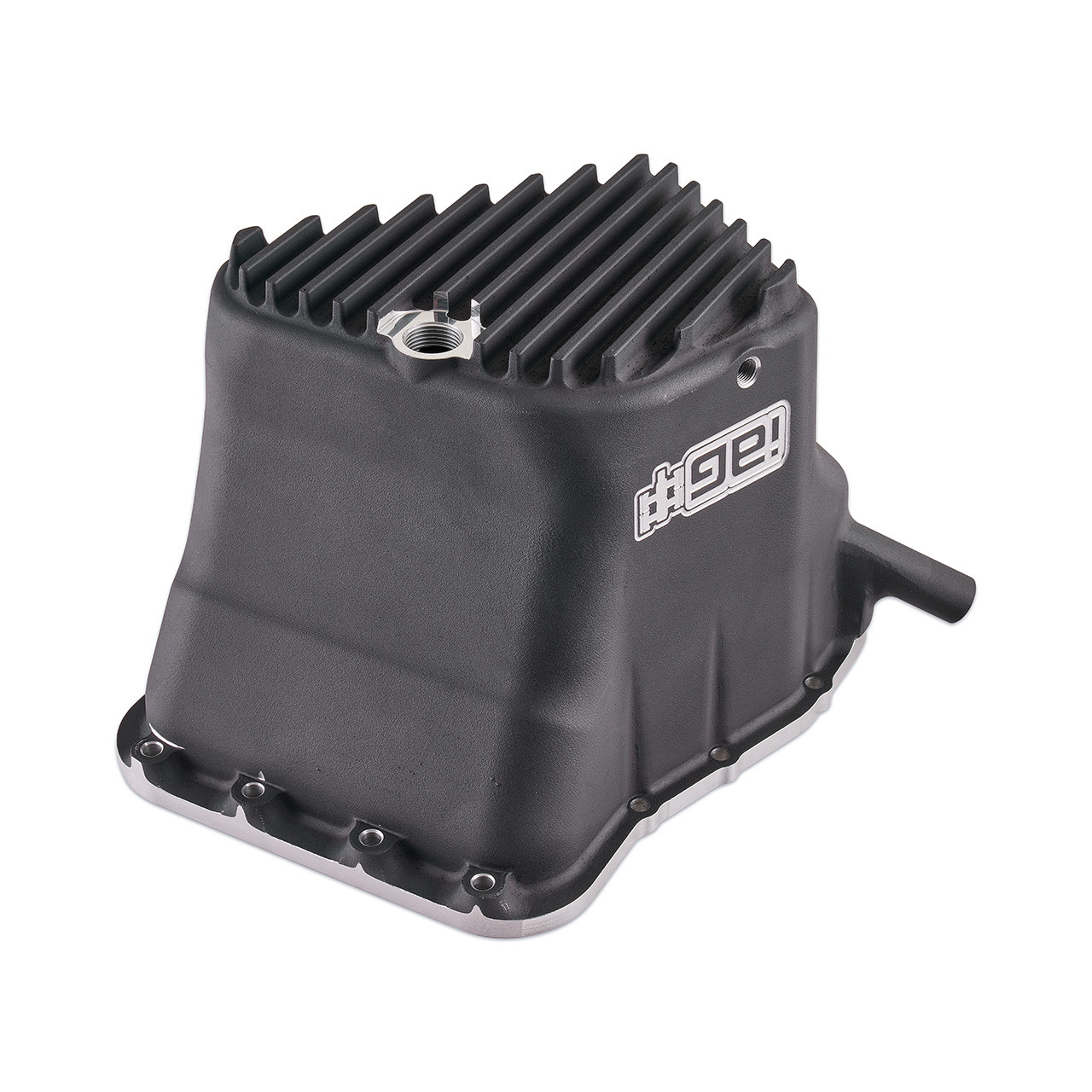

THERMAL DISPERSANT COATING

The IAG Performance EJ Competition Series Oil Pan features a layer of thermal dispersant coating, which allows the pan to transfer heat from the metal surface to the surrounding air even faster than bare metal. Our thermal dispersant coating not only provides a clean black finish, but it also keeps your oil temperature cooler and helps to increase the lifespan of your oil pan by protecting your oil pan from extreme temperature differentials.

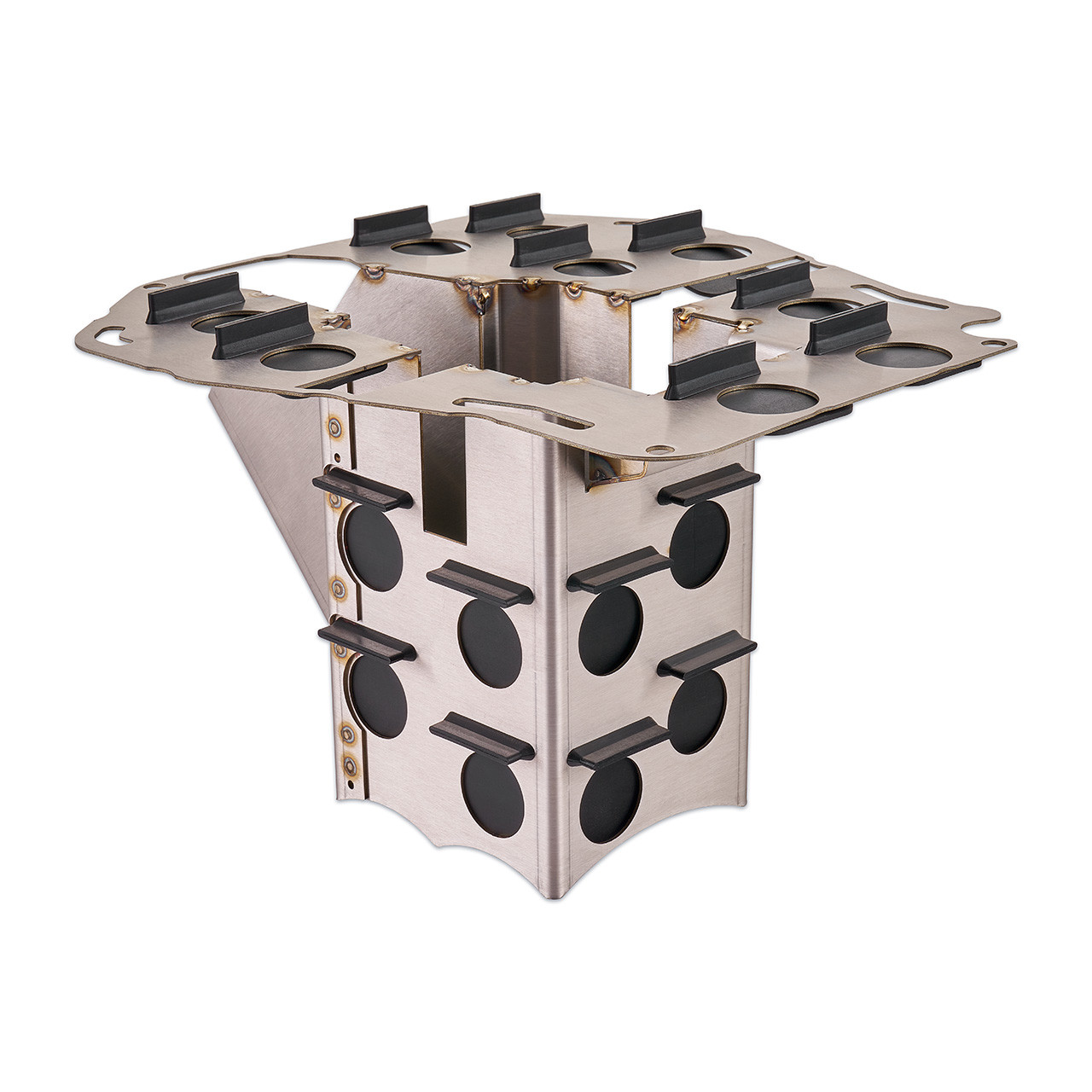

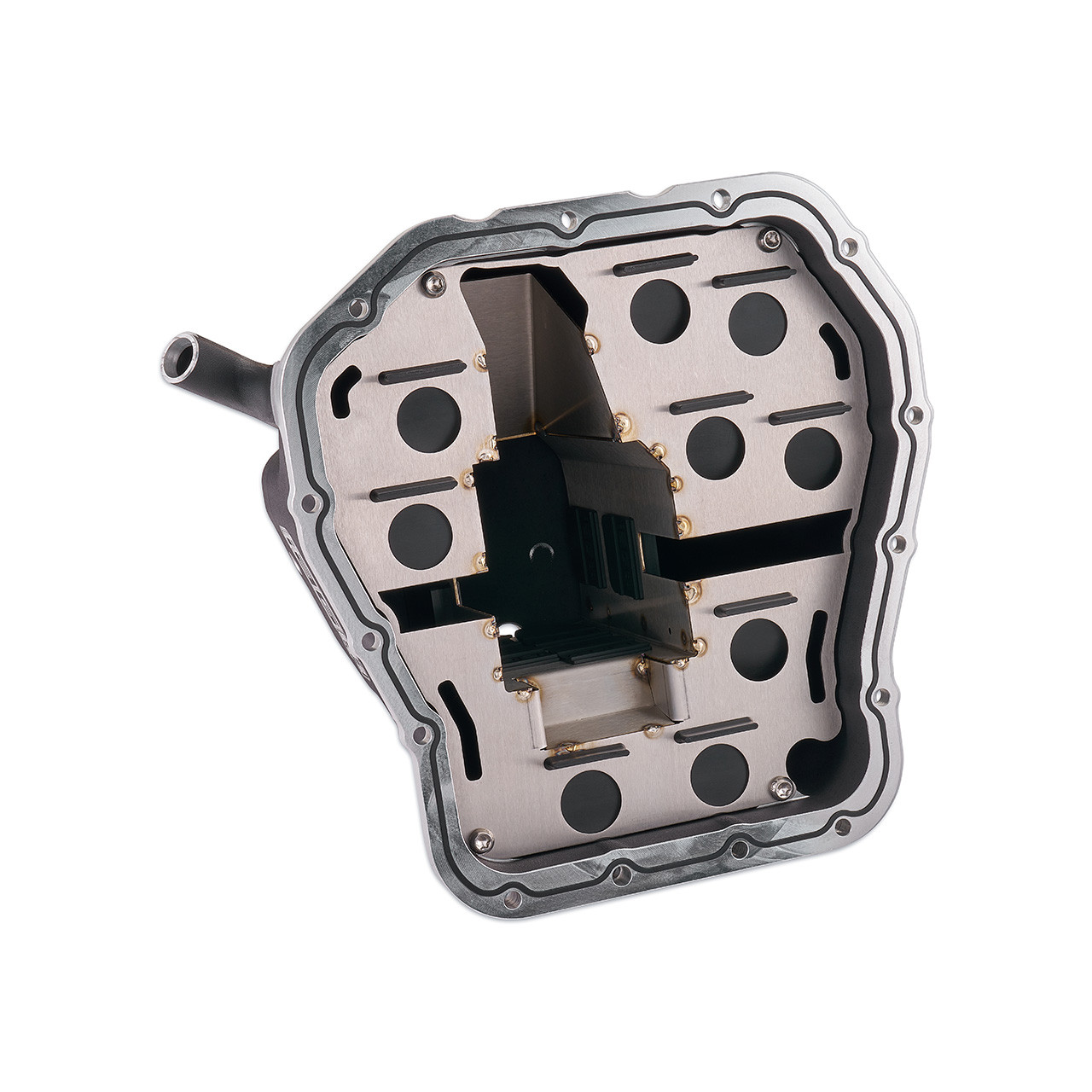

THE COMPETITION SERIES OIL BAFFLE

The IAG Competition Series Oil Baffle is designed to limit potential blow-by and prevent oil starvation in your Subaru's engine during high rpm and high g-force driving. The Competition Series Baffle should be used in vehicles that will see track time, however, it is acceptable to run this baffle on the street as well. The Comp Series baffle is configured with Viton one-way flapper valves which hold oil in the area closest to the pickup. Combining the baffle with the louvers in our windage tray, oil is prevented from reentering the upper crankcase area and is directed down into the oil pan to ensure plentiful supply to the oil pickup.

IAG EJ WRX STI Competition Series Baffle

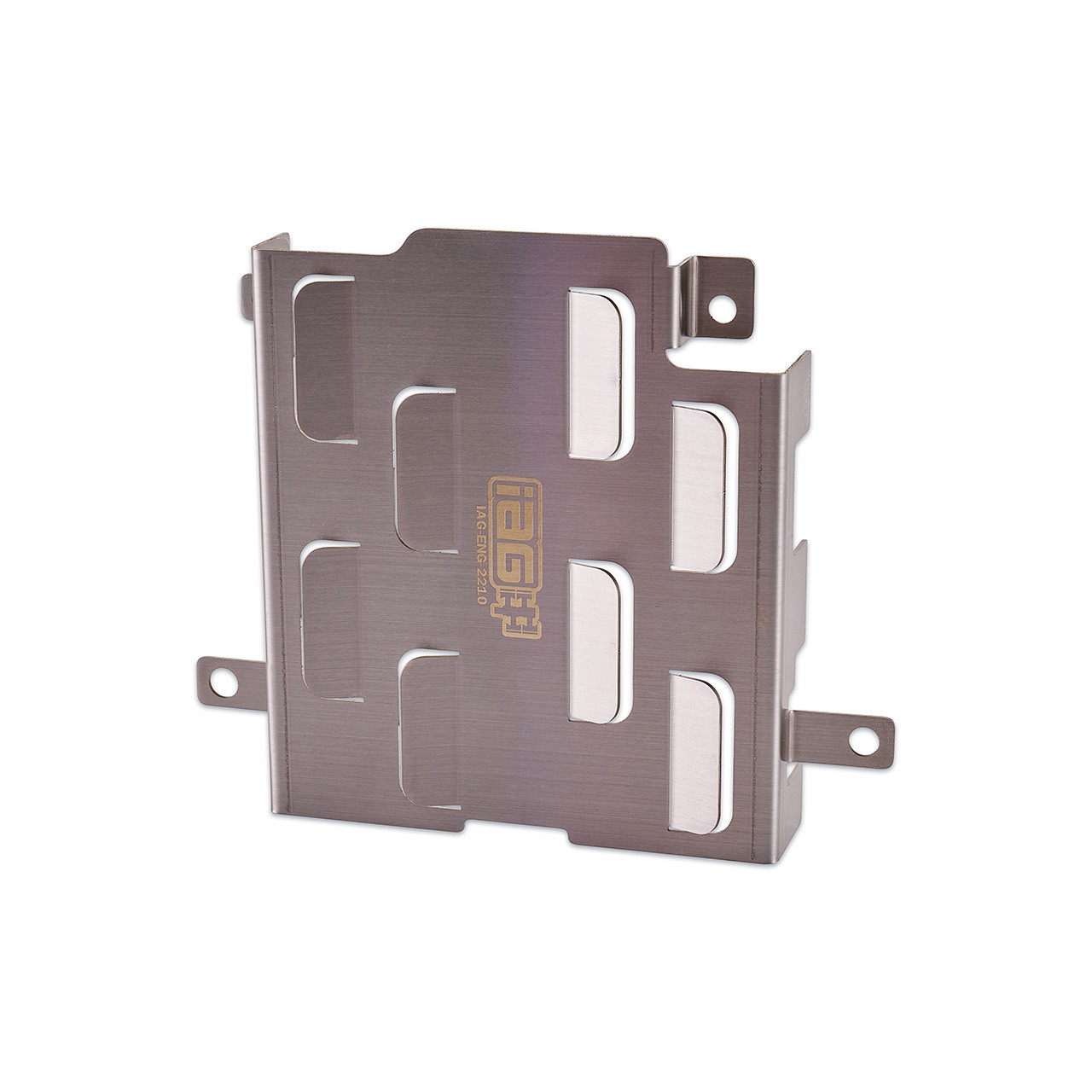

IAG EJ WRX STI Windage Tray

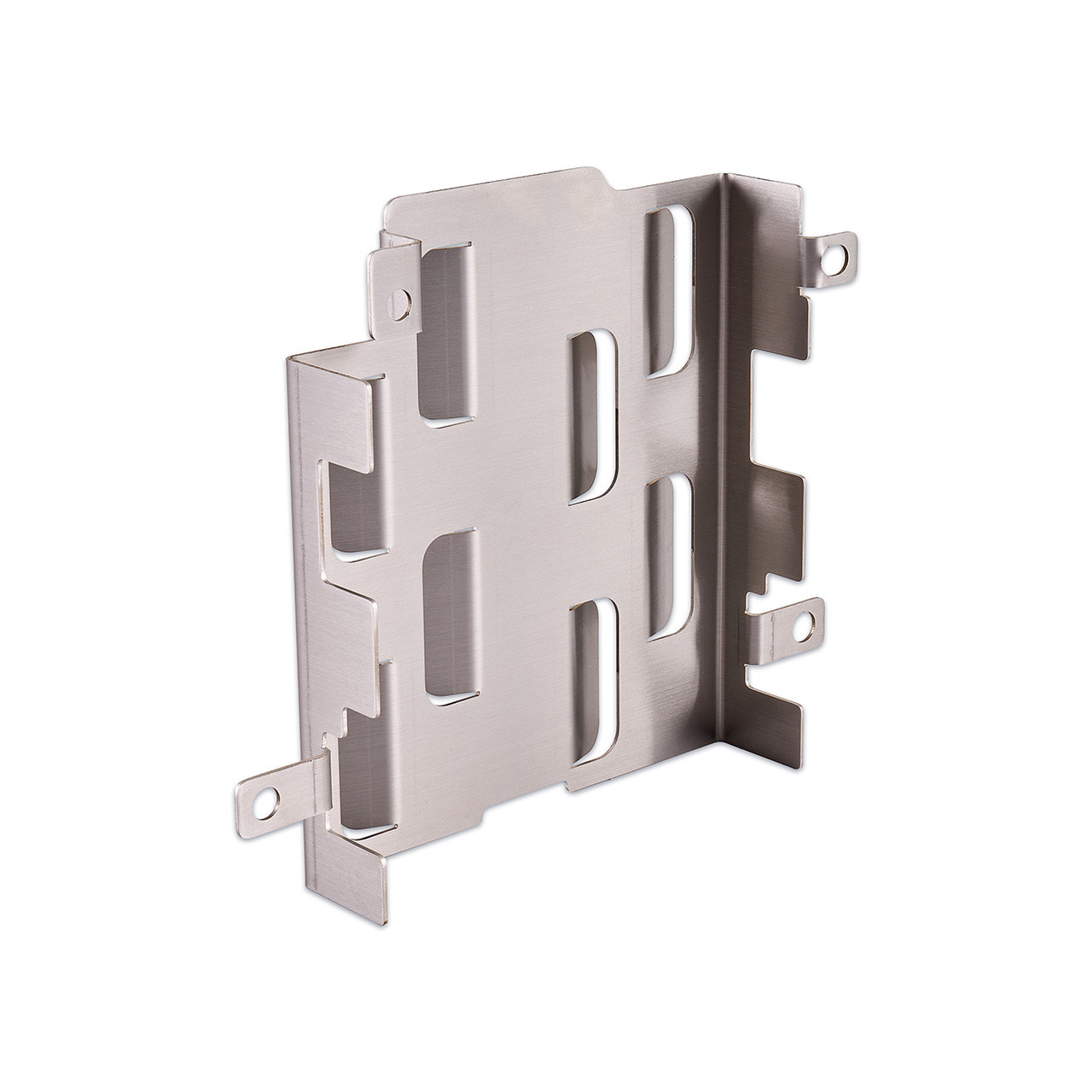

THE IAG WINDAGE TRAY

The IAG Windage Tray directs the oil from the upper crankcase down into the lower crankcase and oil pan area. Constructed of stainless steel, its precision-formed louvers guide oil downward and help to keep oil that is draining from the cylinder heads in the lower crankcase area from splashing upwards into the path of the crankshaft and connecting rods, reducing aeration.

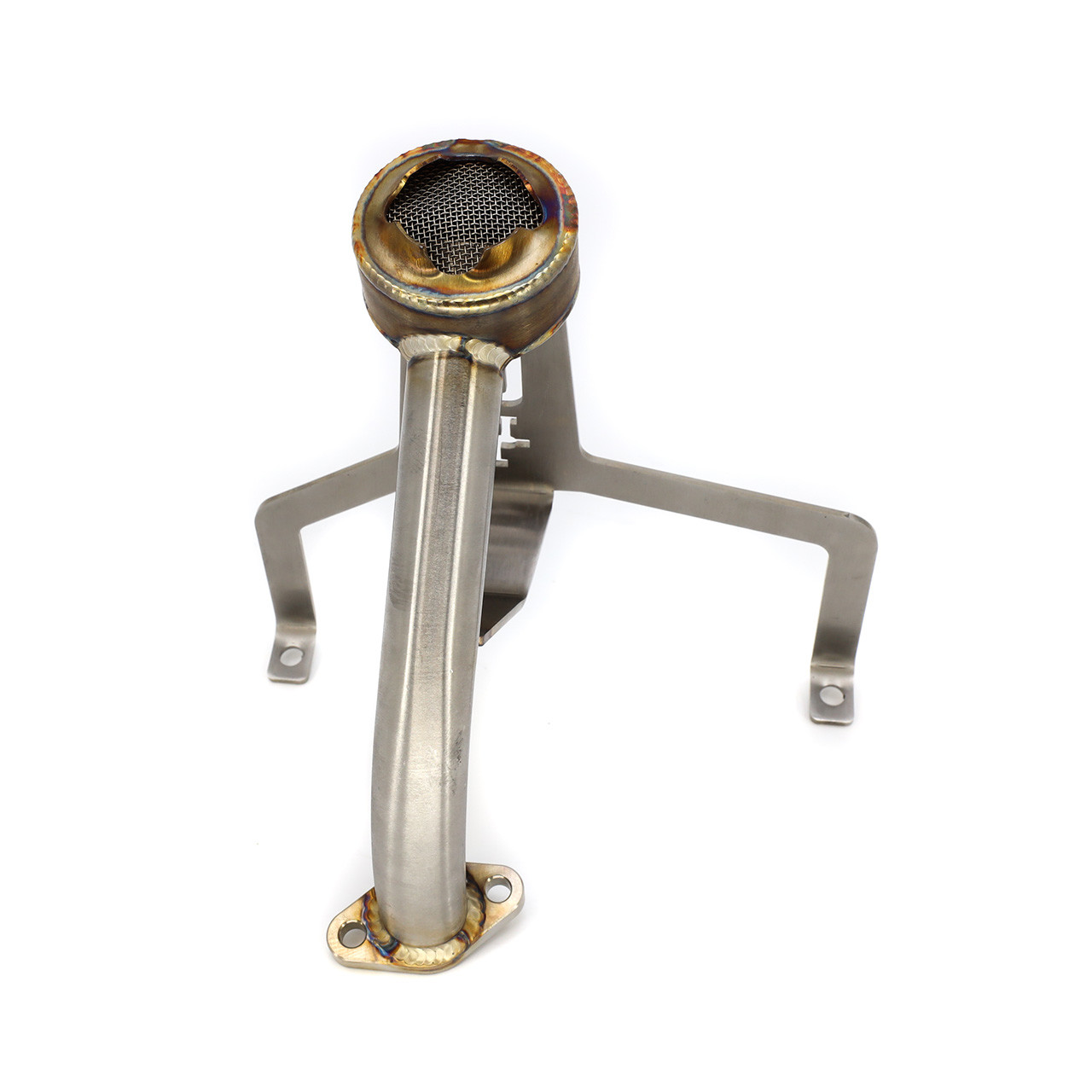

THE IAG V2 OIL PICKUP

The IAG V2 Oil Pickup is an upgraded replacement for the failure-prone OEM EJ25 oil pickup. The OEM Subaru oil pickups are known for their tendency to develop cracks and fail, ultimately causing engine damage due to inadequate oil pressure. In order to prevent the cracking failures observed in OEM oil pickup tubes, IAG's V2 Oil Pickup is constructed from heavy-gauge steel tubing that is twice as thick as the OEM counterpart. It also has a 3/8" stainless steel flange which has been precisely machined to fit with the block and sealed with a Viton O-ring. The V2 Oil Pickup has an integrated stainless steel mounting bracket and is supported by two mounting points, as compared to the OEM version that uses only one single mounting point. The increased material thickness and dual mounting points enhance the pickup’s durability and reduce the risk of fatigue and failure.

IAG Performance V2 WRX STI Oil Pickup

What's Inside:

  • Product Name: IAG EJ Competition Series Oil Pan Package (Black Pan / Pickup / Comp Baffle / Windage Tray) For WRX, STI, LGT, FXT
  • Part Numbers: IAG-ENG-2202BK
  • Material: Cast And CNC Machined Aluminum
  • Color: Black

Package Includes:

  • (x1) IAG Cast Aluminum Oil Pan with Machined Flanges, Cooling Fins & Black Finish
  • (x1) IAG Competition Series Oil Pan Baffle w/ Viton Valves
  • (x1) IAG Windage Tray
  • (x1) IAG V2 Oil Pickup
  • (x1) Oil Pan Mounting Hardware Pack
  • (x1) Oil Baffle Hardware Pack
  • (x1) Oil Pickup Spacer Kit
  • (x1) M20 Zinc Plated Oil Drain Plug & OEM Style Crush Washer/Gasket
  • (x1) 1/8" NPT Zinc Plated Plug
  • (x1) Oil Pan O-ring
  • (x1) Oil Pan O-ring
  • (x2) Oil Pan Dipstick Viton OEM Sized O-rings
  • All necessary hardware required for install
  • Fitment: 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT

Install Notes

  • IAG oil pickup spacer is included and required when using the IAG oil pickup.
  • Flaps should be inspected every 12-24 months depending on use.
  • Subaru EJ25 dipstick (Part# 11140AA150) is required when using an IAG Oil Pan on the 02-05 WRX EJ20 engine.

Model Year & Fitment


  • 2002 Subaru WRX
  • 2003 Subaru WRX
  • 2004 Subaru WRX
  • 2005 Subaru WRX
  • 2006 Subaru WRX
  • 2007 Subaru WRX
  • 2008 Subaru WRX
  • 2009 Subaru WRX
  • 2010 Subaru WRX
  • 2011 Subaru WRX
  • 2012 Subaru WRX
  • 2013 Subaru WRX
  • 2014 Subaru WRX
  • 2004 Subaru STI
  • 2005 Subaru STI
  • 2006 Subaru STI
  • 2007 Subaru STI
  • 2008 Subaru STI
  • 2009 Subaru STI
  • 2010 Subaru STI
  • 2011 Subaru STI
  • 2012 Subaru STI
  • 2013 Subaru STI
  • 2014 Subaru STI
  • 2015 Subaru STI
  • 2016 Subaru STI
  • 2017 Subaru STI
  • 2018 Subaru STI
  • 2019 Subaru STI
  • 2020 Subaru STI
  • 2021 Subaru STI
  • 2005 Subaru Legacy GT
  • 2006 Subaru Legacy GT
  • 2007 Subaru Legacy GT
  • 2008 Subaru Legacy GT
  • 2009 Subaru Legacy GT
  • 2004 Subaru Forester XT
  • 2005 Subaru Forester XT
  • 2006 Subaru Forester XT
  • 2007 Subaru Forester XT
  • 2008 Subaru Forester XT
  • 2009 Subaru Forester XT
  • 2010 Subaru Forester XT
  • 2011 Subaru Forester XT
  • 2012 Subaru Forester XT
  • 2013 Subaru Forester XT
